Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

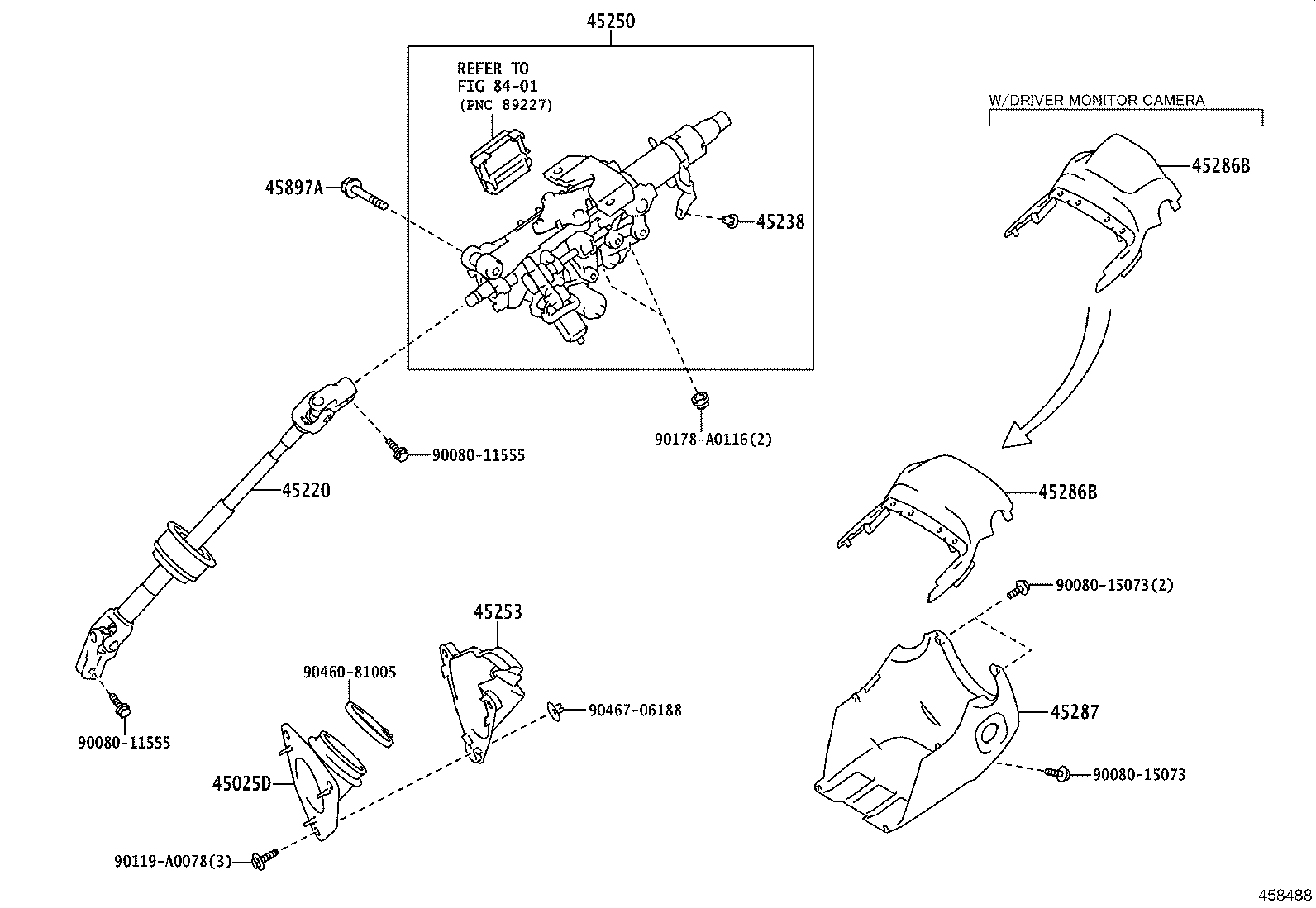

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-0E090 |
Cover Sub-assy, Steering Column Hole, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45220 — Shaft Assy, Steering Intermediate | ||||
| 45220-0E130 |
Shaft Assy, Steering Intermediate
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45238 — Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-11010 |
Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45250 — Column Assy, Steering | ||||
| 45250-0E220 |
Column Assy, Steering
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45253 — Cover, Steering Column Hole | ||||
| 45253-0E120 |
Cover, Steering Column Hole
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-0E080-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
TALH17 | — | |
| 45286-0E080-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
TALA15 | — | |
| 45286-0E080-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
AALH15,TALA10 | — | |
| 45286-F6020-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
TALA15 | — | |
| 45286-F6020-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
AALH15,TALA10 | — | |
| 45286-F6020-C0 note |
Cover, Steering Column, Upr
2022-10 → —
|
TALH17 | — | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45287-0E120-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
TALH17 | — | |
| 45287-0E120-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
TALA15 | — | |
| 45287-0E120-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
AALH15,TALA10 | — | |
| 45287-0E160-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
TALH17 | — | |
| 45287-0E160-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
TALA15 | — | |
| 45287-0E160-C0 note |
Cover, Steering Column, Lwr
2022-10 → —
|
AALH15,TALA10 | — | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 90119-10A34 |
Bolt, Tilt Steering Pawl Set
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
