Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

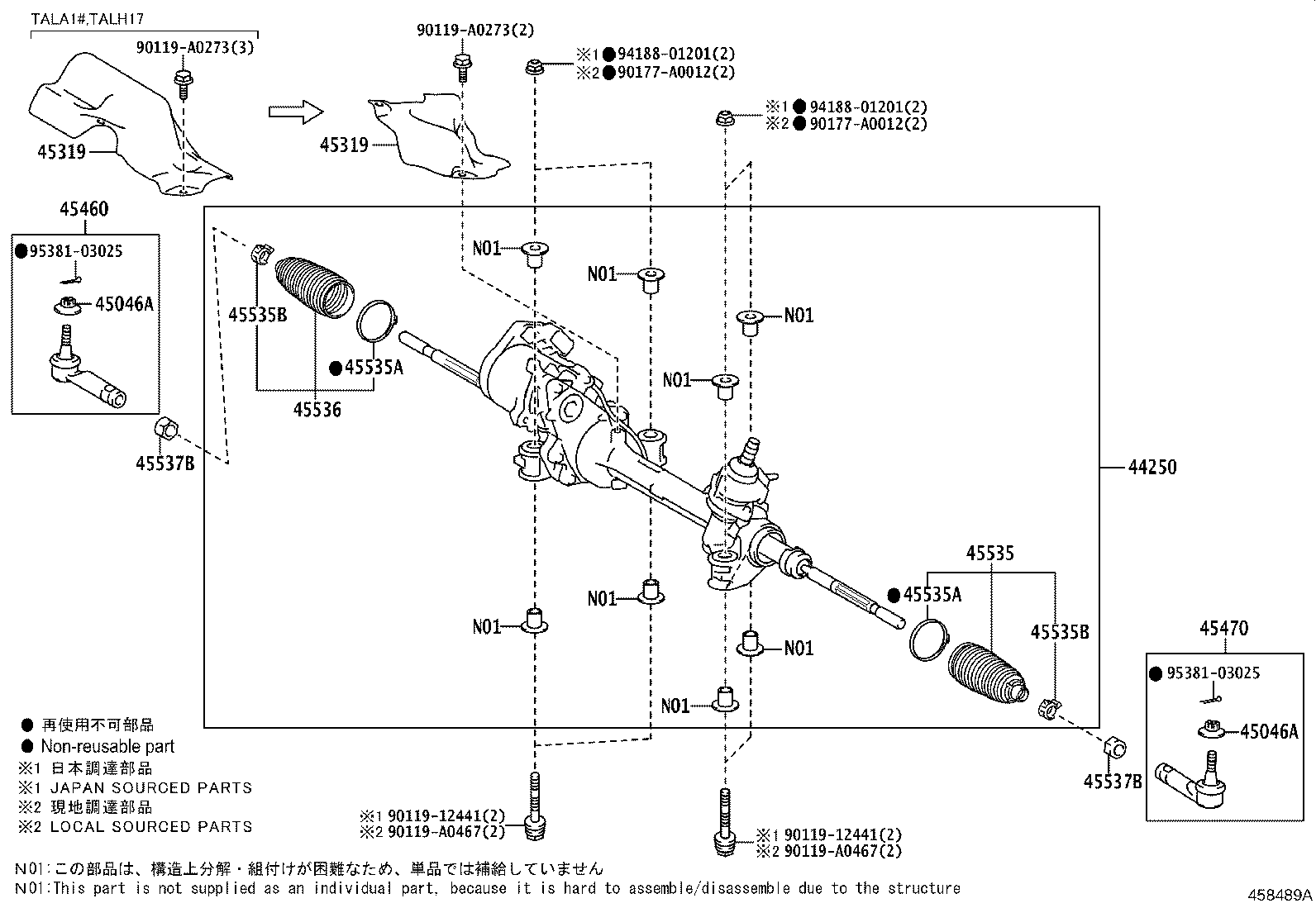

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44250 — Gear Assy, Power Steering(FOR RACK & PINION) | ||||
| 44250-0E150 note |
Gear Assy, Power Steering(FOR RACK & PINION)
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 44250-0E151 note |
Gear Assy, Power Steering(FOR RACK & PINION)
2024-10 → —
|
AALH15,TALA1# | — | |
| 44250-0E160 note |
Gear Assy, Power Steering(FOR RACK & PINION)
2022-10 → 2024-10
ended
|
TALH17 | — | |
| 44250-0E161 note |
Gear Assy, Power Steering(FOR RACK & PINION)
2024-10 → —
|
TALH17 | — | |
| 45046A — Nut, Castle(FOR TIE ROD END) | ||||
| 90171-12015 |
Nut, Castle(FOR TIE ROD END)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45319 — Insulator, Steering Gear Heat | ||||
| 45319-0R010 |
Insulator, Steering Gear Heat
2022-10 → —
|
AALH15 | — | |
| 45319-F6010 |
Insulator, Steering Gear Heat
2022-10 → —
|
TALA1#,TALH17 | — | |
| 45460 — Rod Assy, Tie, RH | ||||
| 45460-09360 |
Rod Assy, Tie, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45470 — Rod Assy, Tie, LH | ||||
| 45460-09360 |
Rod Assy, Tie, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-09600 |
Boot, Steering Rack, NO.1
2022-10 → 2023-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 45535-09601 |
Boot, Steering Rack, NO.1
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45535A — Clamp(FOR STEERING RACK BOOT) | ||||
| 45538-0T010 |
Clamp(FOR STEERING RACK BOOT)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 45537-02020 |
Clip(FOR STEERING RACK BOOT)
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 90467-19021 |
Clip(FOR STEERING RACK BOOT)
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45536 — Boot, Steering Rack, NO.2 | ||||
| 45535-09600 |
Boot, Steering Rack, NO.2
2022-10 → 2023-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 45535-09601 |
Boot, Steering Rack, NO.2
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 45537B — Nut, Rack End Lock | ||||
| 90178-16001 note |
Nut, Rack End Lock
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90178-A0013 note |
Nut, Rack End Lock
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
