Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

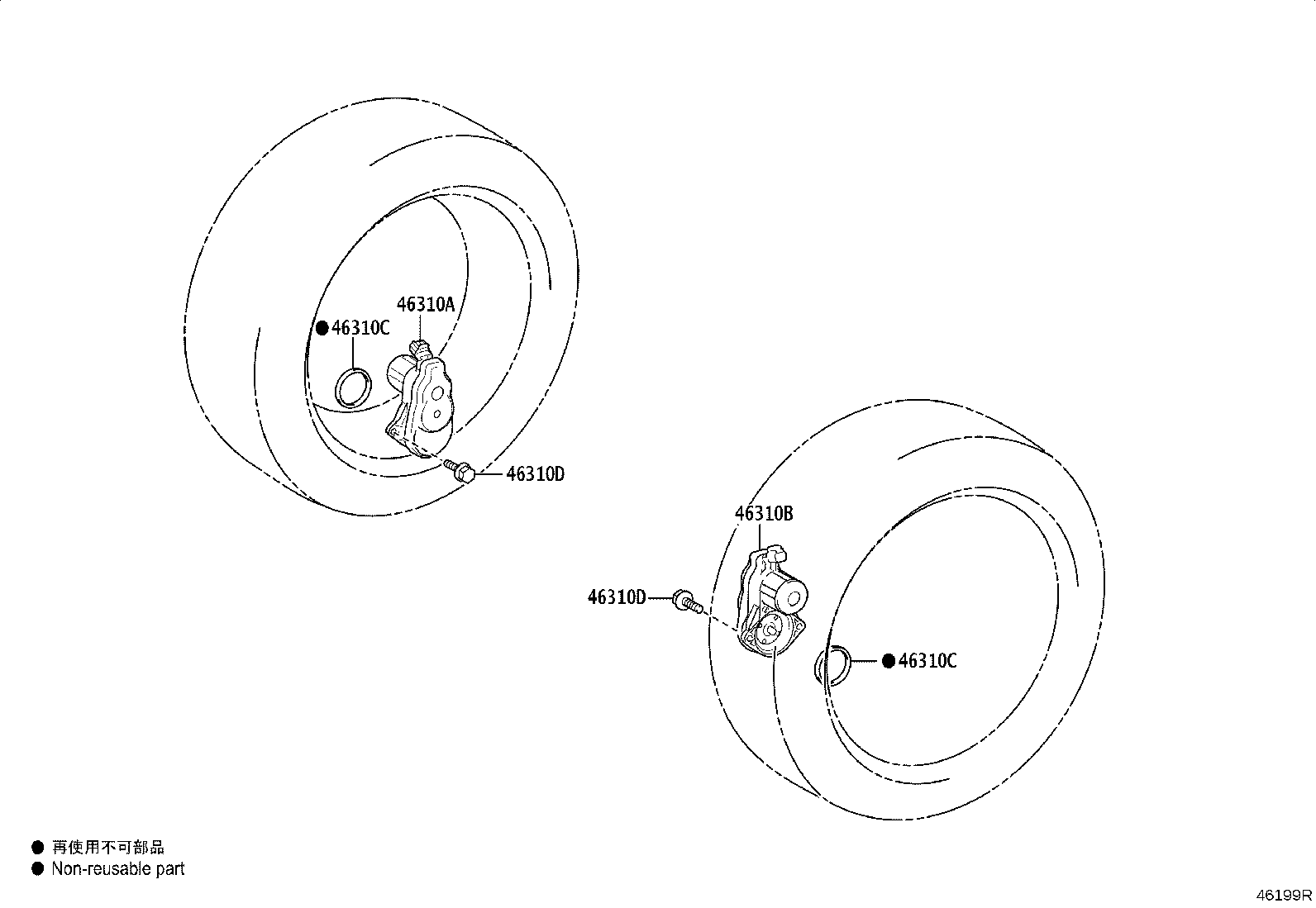

| 46310A — Actuator Assy, Parking Brake, RH | ||||
| 46310-0A010 |
Actuator Assy, Parking Brake, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 46310-33010 |
Actuator Assy, Parking Brake, RH
2022-10 → —
|
TALH17 | — | |
| 46310B — Actuator Assy, Parking Brake, LH | ||||
| 46310-0A010 |
Actuator Assy, Parking Brake, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 46310-33010 |
Actuator Assy, Parking Brake, LH
2022-10 → —
|
TALH17 | — | |
| 46310C — Seal(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AH005 |
Seal(FOR PARKING BRAKE ACTUATOR)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 46310D — Bolt(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AA702 |
Bolt(FOR PARKING BRAKE ACTUATOR)
2022-10 → —
|
TALH17 | — | |
| 90016-AA703 |
Bolt(FOR PARKING BRAKE ACTUATOR)
2022-10 → —
|
AALH15,TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
