Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

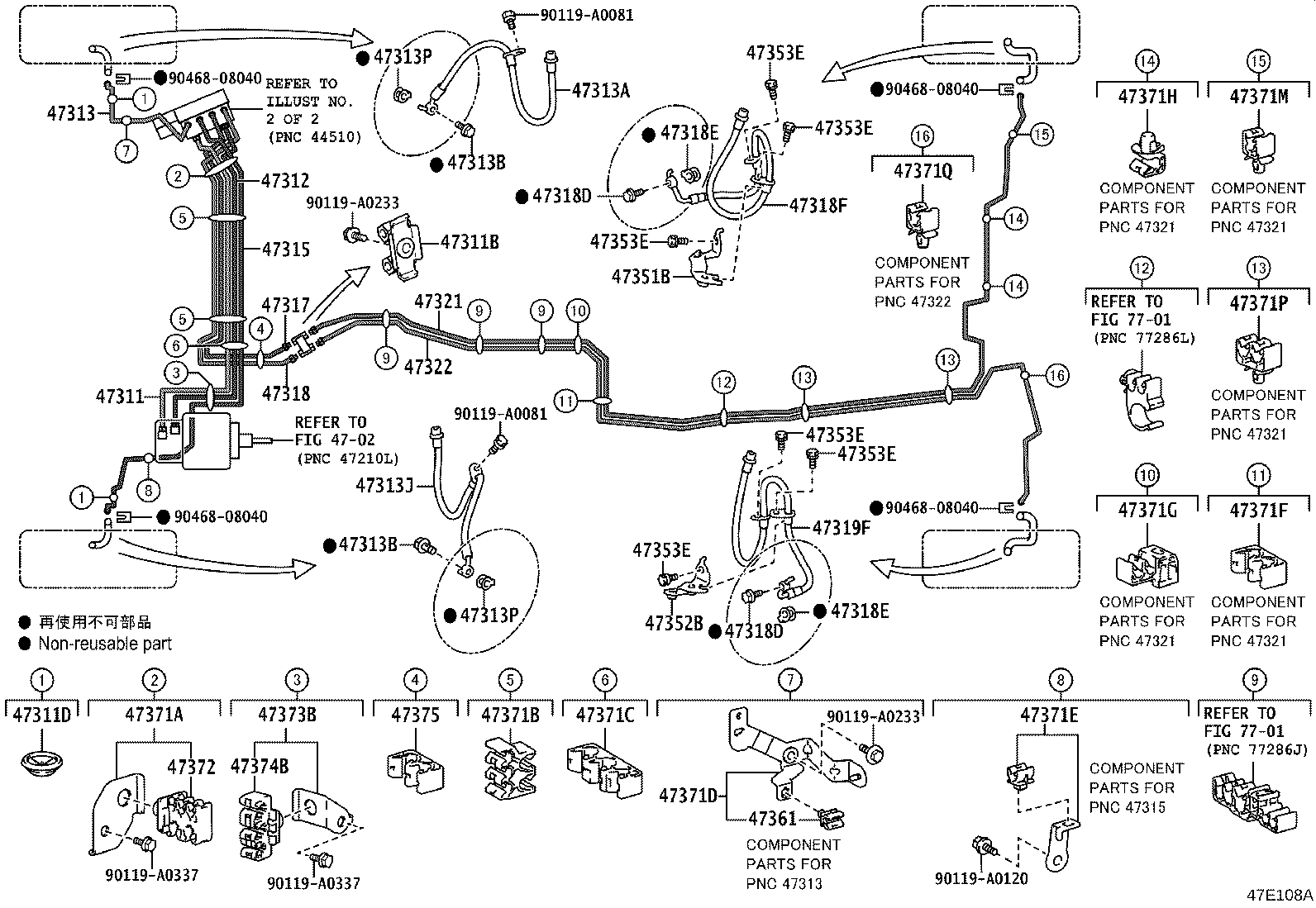

Exploded illustration 47E108A 47373B — CLAMP, BRAKE TUBE, NO.3 (2 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (2 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (3 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (2 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (2 parts) 90119A0233 — not listed in this catalogue 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (2 parts) 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 47321 — TUBE, REAR BRAKE, NO.1 (1 parts) 47322 — TUBE, REAR BRAKE, NO.2 (1 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (1 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (1 parts) 47352B — BRACKET, FLEXIBLE HOSE, NO.2 (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (1 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (3 parts) 90119A0081 — not listed in this catalogue 47311D — GROMMET(FOR FRONT BRAKE TUBE) (1 parts) 47371G — CLAMP, BRAKE TUBE, NO.11 (1 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (2 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (2 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (2 parts) 90119A0233 — not listed in this catalogue 47371D — CLAMP, BRAKE TUBE, NO.8 (3 parts) 47361 — CLAMP, TUBE (1 parts) 47371C — CLAMP, BRAKE TUBE, NO.7 (2 parts) 7701 — not listed in this catalogue 90119A0337 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (2 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (2 parts) 90119A0337 — not listed in this catalogue 47371E — CLAMP, BRAKE TUBE, NO.9 (1 parts) 90119A0120 — not listed in this catalogue 47371M — CLAMP, BRAKE TUBE, NO.13 (1 parts) 47371P — CLAMP, BRAKE TUBE, NO.14 (1 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (1 parts) 47371F — CLAMP, BRAKE TUBE, NO.10 (1 parts) 7701 — not listed in this catalogue 47371Q — CLAMP, BRAKE TUBE, NO.15 (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47351B — BRACKET, FLEXIBLE HOSE, NO.1 (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47353E — BOLT(FOR FLEXIBLE HOSE BRACKET) (1 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (1 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 90119A0081 — not listed in this catalogue 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 4702 — not listed in this catalogue
47E108A · 46 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-0E090 Tube, Front Brake, NO.1
2022-10 → —
TALA1# —
47311-0E100 Tube, Front Brake, NO.1
2022-10 → —
AALH15,TALH17 —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10314 Way, NO.1(FOR FRONT BRAKE TUBE)
2022-10 → —
AALH15,TALH17 —
90412-A0011 Way, NO.1(FOR FRONT BRAKE TUBE)
2022-10 → —
TALA1# —
47311D — Grommet(FOR FRONT BRAKE TUBE)
90480-25037 Grommet(FOR FRONT BRAKE TUBE)
2022-10 → —
AALH15,TALA1#,TALH17 —
47312 — Tube, Front Brake, NO.2
47312-0E060 Tube, Front Brake, NO.2
2022-10 → —
TALA1# —
47312-0E070 Tube, Front Brake, NO.2
2022-10 → —
AALH15,TALH17 —
47313 — Tube, Front Brake, NO.3
47313-0E090 Tube, Front Brake, NO.3
2022-10 → —
TALA1# —
47313-0E100 Tube, Front Brake, NO.3
2022-10 → —
TALH17 —
47313-0E110 Tube, Front Brake, NO.3
2022-10 → —
AALH15 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-A2145 Hose, Flexible, NO.1(FOR FRONT)
2022-10 → —
AALH15,TALA1# —
90947-A2149 Hose, Flexible, NO.1(FOR FRONT)
2022-10 → —
TALH17 —
90947-A2149 note Hose, Flexible, NO.1(FOR FRONT)
2022-10 → —
TALA15 —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2022-10 → —
AALH15,TALA1#,TALH17 —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-A2146 Hose, Flexible, NO.2(FOR FRONT)
2022-10 → —
AALH15,TALA1# —
90947-A2150 note Hose, Flexible, NO.2(FOR FRONT)
2022-10 → —
TALA15 —
90947-A2150 Hose, Flexible, NO.2(FOR FRONT)
2022-10 → —
TALH17 —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2022-10 → —
AALH15,TALA1#,TALH17 —
47315 — Tube, Front Brake, NO.5
47315-0E200 Tube, Front Brake, NO.5
2022-10 → —
TALA1# —
47315-0E210 Tube, Front Brake, NO.5
2022-10 → —
AALH15,TALH17 —
47317 — Tube, Front Brake, NO.7
47317-0E210 Tube, Front Brake, NO.7
2022-10 → —
TALA1# —
47317-0E220 Tube, Front Brake, NO.7
2022-10 → —
AALH15,TALH17 —
47318 — Tube, Front Brake, NO.8
47318-0E210 Tube, Front Brake, NO.8
2022-10 → —
TALA1# —
47318-0E220 Tube, Front Brake, NO.8
2022-10 → —
AALH15,TALH17 —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-A0001 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2022-10 → —
AALH15,TALA1#,TALH17 —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50021 Gasket(FOR REAR FLEXIBLE HOSE)
2022-10 → —
AALH15,TALA1#,TALH17 —
47318F — Hose, Flexible(FOR REAR RH)
90947-A2143 Hose, Flexible(FOR REAR RH)
2022-10 → —
AALH15,TALA1#,TALH17 —
47319F — Hose, Flexible(FOR REAR LH)
90947-A2144 Hose, Flexible(FOR REAR LH)
2022-10 → —
AALH15,TALA1#,TALH17 —
47321 — Tube, Rear Brake, NO.1
47321-0E160 Tube, Rear Brake, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
47322 — Tube, Rear Brake, NO.2
47322-0E160 Tube, Rear Brake, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
47351B — Bracket, Flexible Hose, NO.1
47351-0E070 Bracket, Flexible Hose, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
47352B — Bracket, Flexible Hose, NO.2
47352-0E070 Bracket, Flexible Hose, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
47353E — Bolt(FOR FLEXIBLE HOSE BRACKET)
90119-A0081 Bolt(FOR FLEXIBLE HOSE BRACKET)
2022-10 → —
AALH15,TALA1#,TALH17 —
47361 — Clamp, Tube
90949-01D56 Clamp, Tube
2022-10 → —
TALH17 —
47371A — Clamp, Brake Tube, NO.1
47371-48190 Clamp, Brake Tube, NO.1
2022-10 → —
TALA1# —
47371-48230 Clamp, Brake Tube, NO.1
2022-10 → —
AALH15,TALH17 —
47371B — Clamp, Brake Tube, NO.6
47371-48250 Clamp, Brake Tube, NO.6
2022-10 → —
TALA1# —
90949-01E40 Clamp, Brake Tube, NO.6
2022-10 → —
AALH15,TALH17 —
47371C — Clamp, Brake Tube, NO.7
90949-01D56 Clamp, Brake Tube, NO.7
2022-10 → —
TALA1# —
90949-01E43 Clamp, Brake Tube, NO.7
2022-10 → —
AALH15,TALH17 —
47371D — Clamp, Brake Tube, NO.8
47371-0E040 Clamp, Brake Tube, NO.8
2022-10 → —
AALH15 —
47371-48250 Clamp, Brake Tube, NO.8
2022-10 → —
TALH17 —
90949-01D56 Clamp, Brake Tube, NO.8
2022-10 → —
TALA1# —
47371E — Clamp, Brake Tube, NO.9
47371-0R020 Clamp, Brake Tube, NO.9
2022-10 → —
AALH15,TALH17 —
47371F — Clamp, Brake Tube, NO.10
90464-00903 Clamp, Brake Tube, NO.10
2022-10 → —
AALH15,TALA1#,TALH17 —
47371G — Clamp, Brake Tube, NO.11
90949-01D11 Clamp, Brake Tube, NO.11
2022-10 → —
AALH15,TALA1#,TALH17 —
47371H — Clamp, Brake Tube, NO.12
90949-01D17 Clamp, Brake Tube, NO.12
2022-10 → —
AALH15,TALA1#,TALH17 —
47371M — Clamp, Brake Tube, NO.13
90949-01E01 Clamp, Brake Tube, NO.13
2022-10 → —
AALH15,TALA1#,TALH17 —
47371P — Clamp, Brake Tube, NO.14
90949-01E02 Clamp, Brake Tube, NO.14
2022-10 → —
AALH15,TALA1#,TALH17 —
47371Q — Clamp, Brake Tube, NO.15
90949-01E10 Clamp, Brake Tube, NO.15
2022-10 → —
AALH15,TALA1#,TALH17 —
47372 — Clamp, Brake Tube, NO.2
47371-48230 Clamp, Brake Tube, NO.2
2022-10 → —
TALA1# —
90949-01E79 Clamp, Brake Tube, NO.2
2022-10 → —
AALH15,TALH17 —
47373B — Clamp, Brake Tube, NO.3
47371-48240 Clamp, Brake Tube, NO.3
2022-10 → —
AALH15,TALH17 —
90949-01E79 Clamp, Brake Tube, NO.3
2022-10 → —
TALA1# —
47374B — Clamp, Brake Tube, NO.4
90464-00903 Clamp, Brake Tube, NO.4
2022-10 → —
TALA1# —
90949-01E80 Clamp, Brake Tube, NO.4
2022-10 → —
AALH15,TALH17 —
47375 — Clamp, Brake Tube, NO.5
90464-00903 Clamp, Brake Tube, NO.5
2022-10 → —
AALH15,TALH17 —
90949-01E40 Clamp, Brake Tube, NO.5
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
