Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

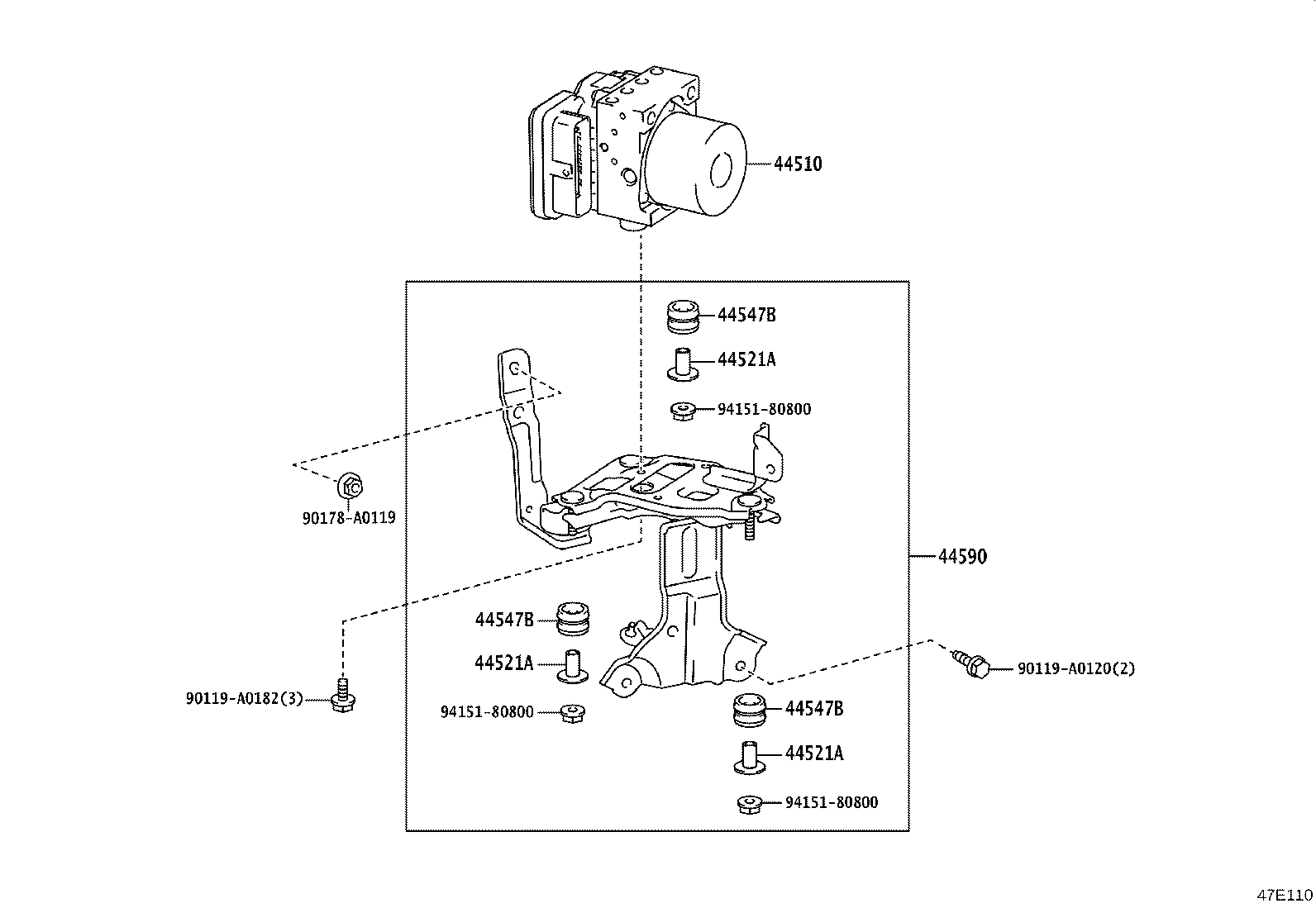

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-0E670 note |
Actuator Assy, Brake
2022-10 → 2023-09
ended
|
TALA1# | — | |
| 44050-0E870 note |
Actuator Assy, Brake
2022-10 → 2023-09
ended
|
TALA15 | — | |
| 44050-0EA80 note |
Actuator Assy, Brake
2023-09 → —
|
TALA1# | — | |
| 44050-0EA90 note |
Actuator Assy, Brake
2023-09 → —
|
TALA15 | — | |
| 44050-48J40 note |
Actuator Assy, Brake
2022-10 → 2023-09
ended
|
AALH15 | — | |
| 44050-48J50 note |
Actuator Assy, Brake
2022-10 → 2023-09
ended
|
TALH17 | — | |
| 44050-48L60 note |
Actuator Assy, Brake
2023-09 → 2024-01
ended
|
AALH15 | — | |
| 44050-48L61 note |
Actuator Assy, Brake
2024-02 → —
|
AALH15 | — | |
| 44050-48L70 note |
Actuator Assy, Brake
2023-09 → 2024-01
ended
|
TALH17 | — | |
| 44050-48L71 note |
Actuator Assy, Brake
2024-02 → —
|
TALH17 | — | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-48010 |
Cushion, Brake Actuator Bracket
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-48310 |
Bracket Assy, Brake Actuator
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
