Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

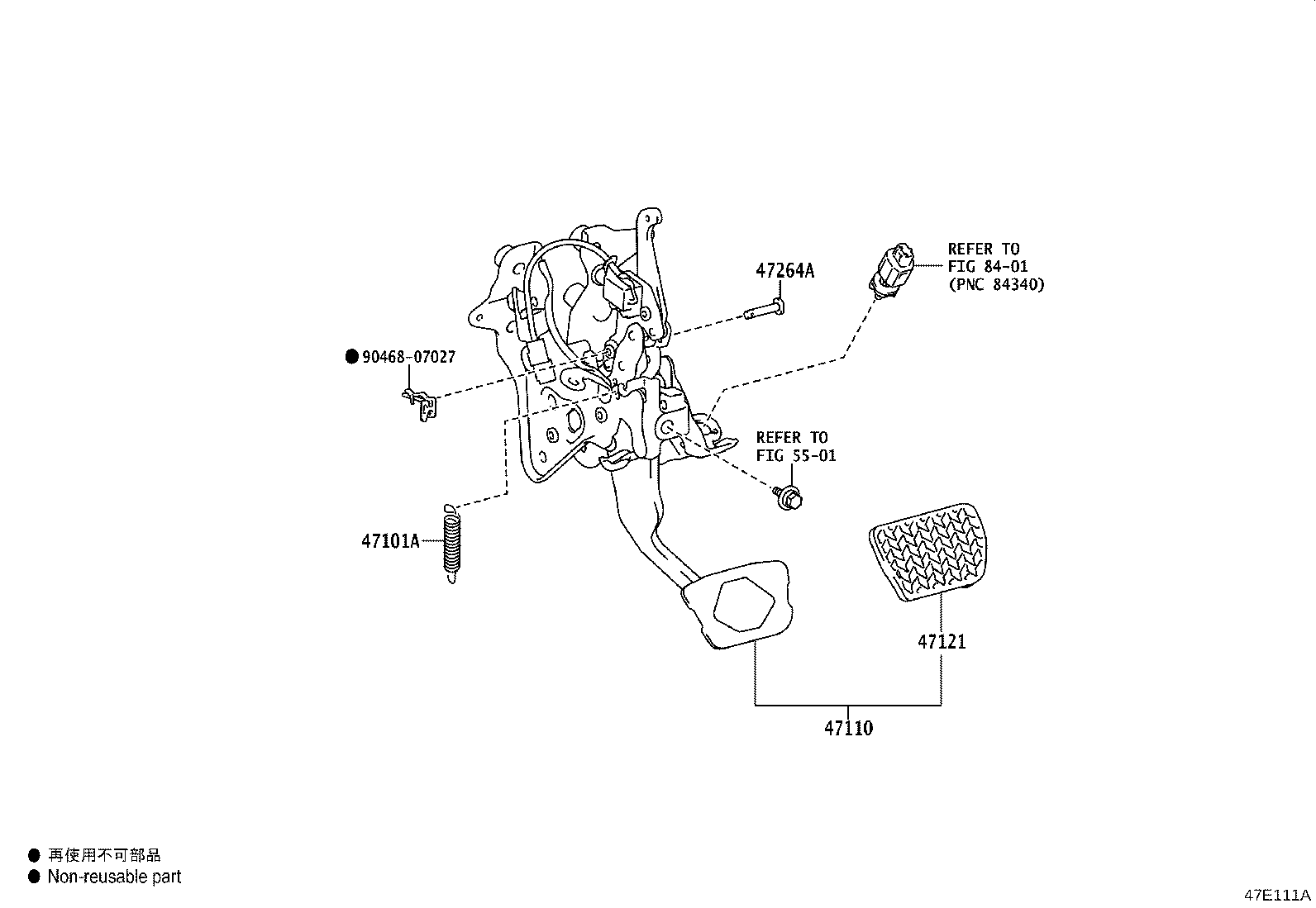

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-12046 |
Spring(FOR BRAKE PEDAL RETURN)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-0E180 |
Support Assy, Brake Pedal
2022-10 → —
|
TALA1# | — | |
| 47110-0E190 |
Support Assy, Brake Pedal
2022-10 → —
|
AALH15 | — | |
| 47110-0E200 note |
Support Assy, Brake Pedal
2022-10 → —
|
TALA15 | — | |
| 47110-0E210 |
Support Assy, Brake Pedal
2022-10 → —
|
TALH17 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-11020 |
Pad, Brake Pedal
2022-10 → —
|
TALH17 | — | |
| 47121-11020 note |
Pad, Brake Pedal
2022-10 → —
|
TALA15 | — | |
| 47121-62010 |
Pad, Brake Pedal
2022-10 → —
|
AALH15,TALA1# | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90240-06028 |
Pin(FOR PUSH ROD)
2022-10 → —
|
TALA1# | — | |
| 90240-08078 |
Pin(FOR PUSH ROD)
2022-10 → —
|
AALH15,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
