Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

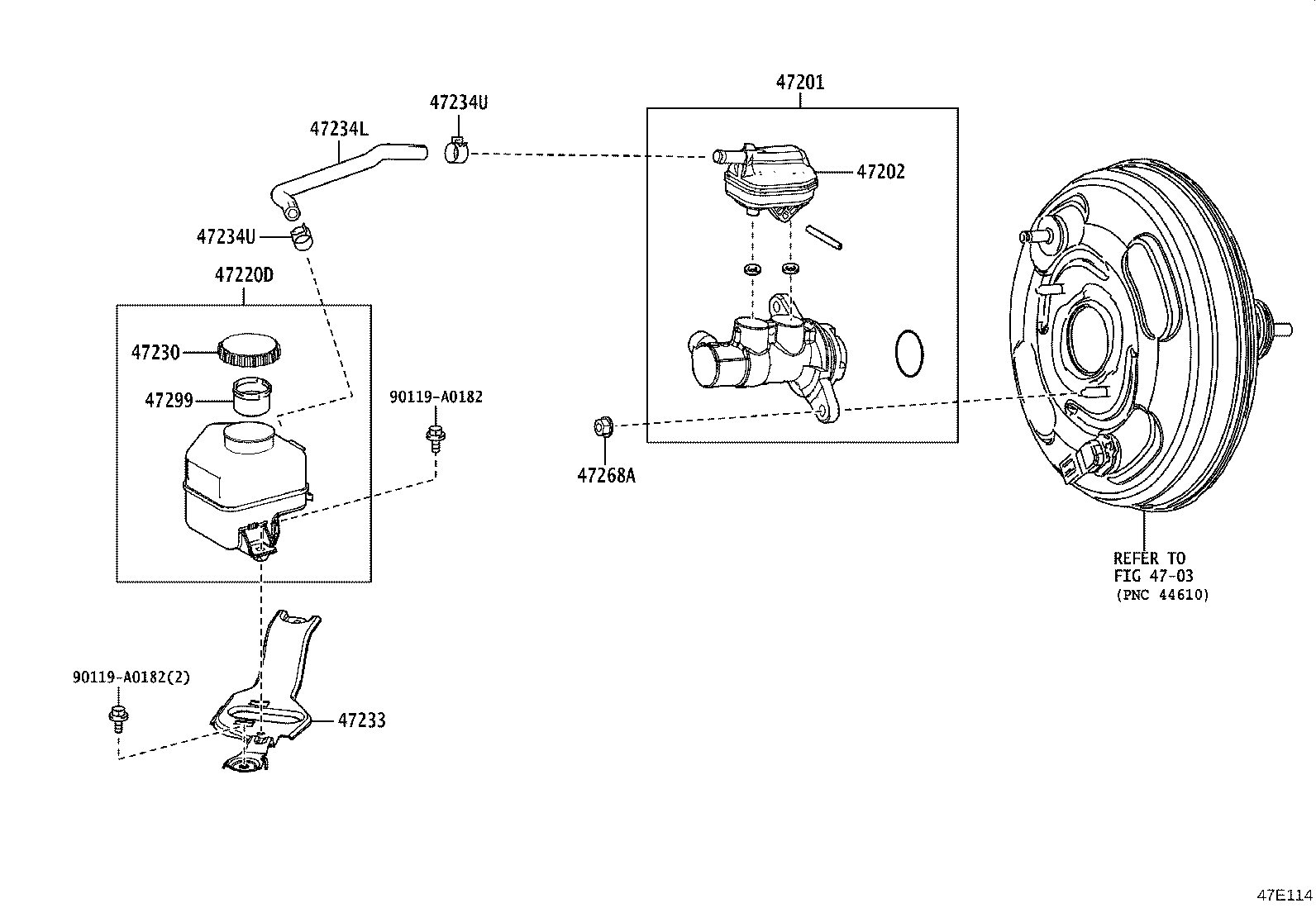

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-0E040 |
Cylinder Sub-assy, Brake Master
2022-10 → —
|
TALA1# | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-48200 |
Reservoir Sub-assy, Brake Master Cylinder
2022-10 → —
|
TALA1# | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-0E140 |
Reservoir Assy, Brake Master Cylinder
2022-10 → —
|
TALA1# | — | |
| 47220-48360 |
Reservoir Assy, Brake Master Cylinder
2022-10 → —
|
AALH15,TALH17 | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-02310 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-10 → —
|
TALA1# | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-10 → —
|
AALH15,TALH17 | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-0E230 |
Bracket, Reservoir
2022-10 → —
|
TALA1# | — | |
| 47233-0E240 |
Bracket, Reservoir
2022-10 → —
|
AALH15,TALH17 | — | |
| 47234L — Hose, Reservoir, NO.1 | ||||
| 47234-0E140 |
Hose, Reservoir, NO.1
2022-10 → —
|
TALA1# | — | |
| 47234-0E210 |
Hose, Reservoir, NO.1
2022-10 → —
|
AALH15,TALH17 | — | |
| 47234U — Clip(FOR RESERVOIR HOSE NO.1) | ||||
| 90466-A0017 |
Clip(FOR RESERVOIR HOSE NO.1)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 47268A — Nut, Brake Master Cylinder | ||||
| 90080-18070 |
Nut, Brake Master Cylinder
2022-10 → —
|
TALA1# | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
