Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 485888A 48811 — BAR, STABILIZER, FRONT (1 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (1 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (1 parts) 48131 — SPRING, FRONT COIL, RH (4 parts) 48132 — SPRING, FRONT COIL, LH (4 parts) 48505 — SEAT, FRONT SPRING, RH (1 parts) 48506 — SEAT, FRONT SPRING, LH (1 parts) 48691M — DAMPER, FRONT SUSPENSION, RH (1 parts) 48691N — DAMPER, FRONT SUSPENSION, LH (1 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48331B — BUMPER, FRONT SPRING, RH (4 parts) 48331C — BUMPER, FRONT SPRING, LH (4 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (2 parts) 48603A — NUT(FOR FRONT SUSPENSION SUPPORT) (1 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (1 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (1 parts) 48510U — ABSORBER SET, SHOCK, FRONT RH (4 parts) 48520G — ABSORBER SET, SHOCK, FRONT LH (4 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (2 parts) 48817D — BOLT(FOR FRONT STABILIZER) (2 parts) 48817D — BOLT(FOR FRONT STABILIZER) (2 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (1 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (1 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (1 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (1 parts) 48619 — BEARING, STRUT MOUNTING, RH (2 parts) 48619A — BEARING, STRUT MOUNTING, LH (2 parts) 9046823005 — not listed in this catalogue 48559A — COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 (1 parts) 48559B — COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 (1 parts) 48826F — PROTECTOR, STABILIZER (2 parts) 4802 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 9011908D34 — not listed in this catalogue 90119A0387 — not listed in this catalogue

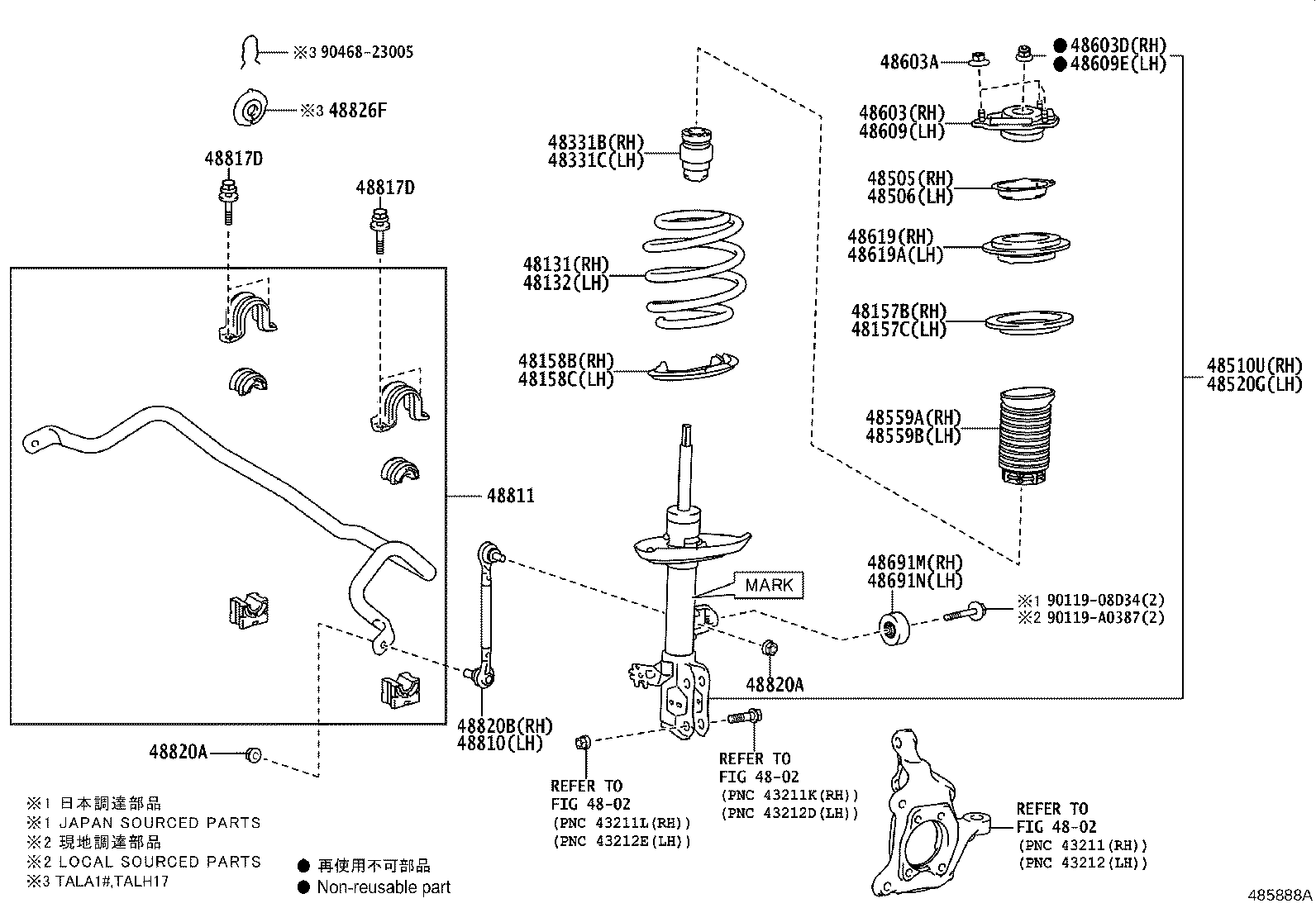

485888A · 31 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-0E580 Spring, Front Coil, RH
2022-10 → 2024-10 ended
AALH15,TALA1# —
48131-0E590 Spring, Front Coil, RH
2022-10 → 2024-10 ended
TALH17 —
48131-0E660 Spring, Front Coil, RH
2024-11 → —
AALH15,TALA1# —
48131-0E670 Spring, Front Coil, RH
2024-11 → —
TALH17 —
48132 — Spring, Front Coil, LH
48131-0E580 Spring, Front Coil, LH
2022-10 → 2024-10 ended
AALH15,TALA1# —
48131-0E590 Spring, Front Coil, LH
2022-10 → 2024-10 ended
TALH17 —
48131-0E660 Spring, Front Coil, LH
2024-11 → —
AALH15,TALA1# —
48131-0E670 Spring, Front Coil, LH
2024-11 → —
TALH17 —
48157B — Insulator, Front Coil Spring, Upper RH
48157-0E070 Insulator, Front Coil Spring, Upper RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48157C — Insulator, Front Coil Spring, Upper LH
48157-0E070 Insulator, Front Coil Spring, Upper LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48158B — Insulator, Front Coil Spring, Lower RH
48158-06260 Insulator, Front Coil Spring, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48158C — Insulator, Front Coil Spring, Lower LH
48158-06260 Insulator, Front Coil Spring, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48331B — Bumper, Front Spring, RH
48331-0E100 Bumper, Front Spring, RH
2023-03 → —
AALH15,TALA1#,TALH17 —
48331-0E100 note Bumper, Front Spring, RH
2024-11 → —
TALH17 —
48331-48080 note Bumper, Front Spring, RH
2024-11 → —
TALH17 —
48331-48080 Bumper, Front Spring, RH
2022-10 → 2023-03 ended
AALH15,TALA1#,TALH17 —
48331C — Bumper, Front Spring, LH
48331-0E100 Bumper, Front Spring, LH
2023-03 → —
AALH15,TALA1#,TALH17 —
48331-0E100 note Bumper, Front Spring, LH
2024-11 → —
TALH17 —
48331-48080 Bumper, Front Spring, LH
2022-10 → 2023-03 ended
AALH15,TALA1#,TALH17 —
48331-48080 note Bumper, Front Spring, LH
2024-11 → —
TALH17 —
48505 — Seat, Front Spring, RH
48159-0E010 Seat, Front Spring, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48506 — Seat, Front Spring, LH
48159-0E010 Seat, Front Spring, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48510U — Absorber Set, Shock, Front RH
48510-8Z577 note Absorber Set, Shock, Front RH
2022-10 → 2024-09 ended
AALH15,TALA1# —
48510-8Z578 note Absorber Set, Shock, Front RH
2022-10 → —
TALH17 —
48510-8Z578 note Absorber Set, Shock, Front RH
2022-10 → —
TALA15 —
48510-8Z692 note Absorber Set, Shock, Front RH
2024-09 → —
AALH15,TALA1# —
48520G — Absorber Set, Shock, Front LH
48520-8Z402 note Absorber Set, Shock, Front LH
2022-10 → 2024-09 ended
AALH15,TALA1# —
48520-8Z403 note Absorber Set, Shock, Front LH
2022-10 → —
TALH17 —
48520-8Z403 note Absorber Set, Shock, Front LH
2022-10 → —
TALA15 —
48520-8Z497 note Absorber Set, Shock, Front LH
2024-09 → —
AALH15,TALA1# —
48559A — Cover, Front Shock Absorber Dust, RH NO.1
48559-0R030 Cover, Front Shock Absorber Dust, RH NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
48559B — Cover, Front Shock Absorber Dust, LH NO.1
48559-0R030 Cover, Front Shock Absorber Dust, LH NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
48603 — Support Sub-assy, Front Suspension, RH
48609-0E080 Support Sub-assy, Front Suspension, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48603A — Nut(FOR FRONT SUSPENSION SUPPORT)
90178-A0077 Nut(FOR FRONT SUSPENSION SUPPORT)
2022-10 → —
AALH15,TALA1#,TALH17 —
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14007 note Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2022-10 → —
AALH15,TALA1#,TALH17 —
90177-A0019 note Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2022-10 → —
AALH15,TALA1#,TALH17 —
48609 — Support Sub-assy, Front Suspension, LH
48609-0E080 Support Sub-assy, Front Suspension, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14007 note Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2022-10 → —
AALH15,TALA1#,TALH17 —
90177-A0019 note Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2022-10 → —
AALH15,TALA1#,TALH17 —
48619 — Bearing, Strut Mounting, RH
48619-0E020 Bearing, Strut Mounting, RH
2022-10 → 2024-02 ended
AALH15,TALA1#,TALH17 —
48619-0E021 Bearing, Strut Mounting, RH
2024-03 → —
AALH15,TALA1#,TALH17 —
48619A — Bearing, Strut Mounting, LH
48619-0E020 Bearing, Strut Mounting, LH
2022-10 → 2024-02 ended
AALH15,TALA1#,TALH17 —
48619-0E021 Bearing, Strut Mounting, LH
2024-03 → —
AALH15,TALA1#,TALH17 —
48691M — Damper, Front Suspension, RH
48691-06020 Damper, Front Suspension, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48691N — Damper, Front Suspension, LH
48691-06020 Damper, Front Suspension, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48810 — Link Assy, Front Stabilizer, LH
48820-0E050 Link Assy, Front Stabilizer, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
48811 — Bar, Stabilizer, Front
48804-0E040 Bar, Stabilizer, Front
2022-10 → —
AALH15,TALA1#,TALH17 —
48817D — Bolt(FOR FRONT STABILIZER)
90119-10994 note Bolt(FOR FRONT STABILIZER)
2022-10 → —
AALH15,TALA1#,TALH17 —
90119-A0474 note Bolt(FOR FRONT STABILIZER)
2022-10 → —
AALH15,TALA1#,TALH17 —
48820A — Nut(FOR FRONT STABILIZER LINK)
90178-A0080 note Nut(FOR FRONT STABILIZER LINK)
2022-10 → —
AALH15,TALA1#,TALH17 —
94151-21241 note Nut(FOR FRONT STABILIZER LINK)
2022-10 → —
AALH15,TALA1#,TALH17 —
48820B — Link Assy, Front Stabilizer, RH
48820-0E050 Link Assy, Front Stabilizer, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
48826F — Protector, Stabilizer
48826-0R010 Protector, Stabilizer
2022-10 → 2023-11 ended
TALH17 —
48826-0R010 Protector, Stabilizer
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
