Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

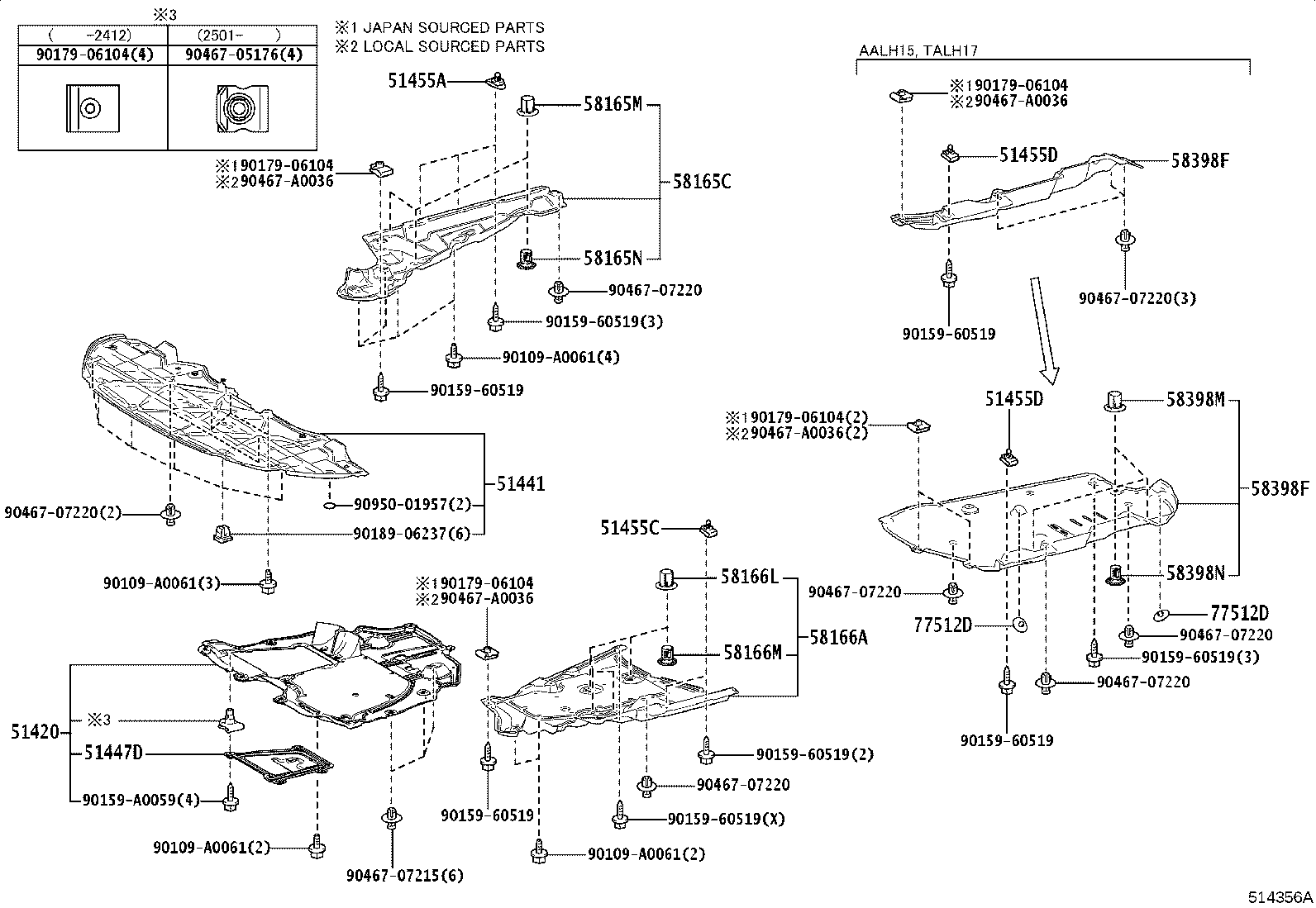

Exploded illustration 514356A 51420 — COVER ASSY, ENGINE UNDER, NO.2 (1 parts) 51447D — COVER, ENGINE UNDER, NO.4 CENTER (1 parts) 90159A0059 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (1 parts) 9018906237 — not listed in this catalogue 9095001957 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9046707220 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9046707215 — not listed in this catalogue 58165C — COVER, FRONT FLOOR, RH (1 parts) 58165M — CLIP, FRONT FLOOR COVER, NO.1 (1 parts) 58165N — CLIP, FRONT FLOOR COVER, NO.2 (1 parts) 58166A — COVER, FRONT FLOOR, LH (1 parts) 58166L — CLIP, FRONT FLOOR COVER, NO.1 (1 parts) 58166M — CLIP, FRONT FLOOR COVER, NO.2 (1 parts) 58398F — COVER, FLOOR UNDER, NO.1 (2 parts) 58398N — CLIP, FLOOR UNDER COVER, NO.2 (1 parts) 58398M — CLIP, FLOOR UNDER COVER, NO.1 (1 parts) 77512D — BRACKET, FUEL TANK (1 parts) 77512D — BRACKET, FUEL TANK (1 parts) 51455D — SEAL, ENGINE UNDER COVER, NO.3 (1 parts) 51455A — SEAL, ENGINE UNDER COVER, NO.1 (1 parts) 51455C — SEAL, ENGINE UNDER COVER, NO.2 (1 parts) 90109A0061 — not listed in this catalogue 9015960519 — not listed in this catalogue 9017906104 — not listed in this catalogue 90467A0036 — not listed in this catalogue 9046707220 — not listed in this catalogue 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 9046707220 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9017906104 — not listed in this catalogue 90467A0036 — not listed in this catalogue 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 9046707220 — not listed in this catalogue 9017906104 — not listed in this catalogue 90467A0036 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 58398F — COVER, FLOOR UNDER, NO.1 (2 parts) 51455D — SEAL, ENGINE UNDER COVER, NO.3 (1 parts) 9015960519 — not listed in this catalogue 9046707220 — not listed in this catalogue 9017906104 — not listed in this catalogue 90467A0036 — not listed in this catalogue 9017906104 — not listed in this catalogue 9046705176 — not listed in this catalogue
514356A · 19 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
51420 — Cover Assy, Engine Under, NO.2
51420-0E100 Cover Assy, Engine Under, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
51441 — Cover, Engine Under, NO.1
51441-0E210 Cover, Engine Under, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
51447D — Cover, Engine Under, NO.4 Center
51447-F6020 Cover, Engine Under, NO.4 Center
2022-10 → —
AALH15,TALA1#,TALH17 —
51455A — Seal, Engine Under Cover, NO.1
51455-0E020 Seal, Engine Under Cover, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
51455C — Seal, Engine Under Cover, NO.2
51455-0E020 Seal, Engine Under Cover, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
51455D — Seal, Engine Under Cover, NO.3
51455-0E020 Seal, Engine Under Cover, NO.3
2022-10 → —
AALH15,TALA1#,TALH17 —
58165C — Cover, Front Floor, RH
58165-0E170 Cover, Front Floor, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58165M — Clip, Front Floor Cover, NO.1
90467-A0029-A0 note Clip, Front Floor Cover, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
58165N — Clip, Front Floor Cover, NO.2
90467-A0030-C1 note Clip, Front Floor Cover, NO.2
2022-10 → —
AALH15,TALH17 —
58166A — Cover, Front Floor, LH
58166-0E101 Cover, Front Floor, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58166L — Clip, Front Floor Cover, NO.1
90467-A0029-A0 note Clip, Front Floor Cover, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
58166M — Clip, Front Floor Cover, NO.2
90467-A0030-C1 note Clip, Front Floor Cover, NO.2
2022-10 → —
AALH15,TALH17 —
58398F — Cover, Floor Under, NO.1
58398-0E110 Cover, Floor Under, NO.1
2022-10 → —
TALA1# —
58398-0E120 Cover, Floor Under, NO.1
2022-10 → —
AALH15,TALH17 —
58398M — Clip, Floor Under Cover, NO.1
90467-A0029-A0 note Clip, Floor Under Cover, NO.1
2022-10 → —
TALA1# —
58398N — Clip, Floor Under Cover, NO.2
90467-A0030-C0 note Clip, Floor Under Cover, NO.2
2022-10 → —
TALA1# —
77512D — Bracket, Fuel Tank
77512-47030 Bracket, Fuel Tank
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
