Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

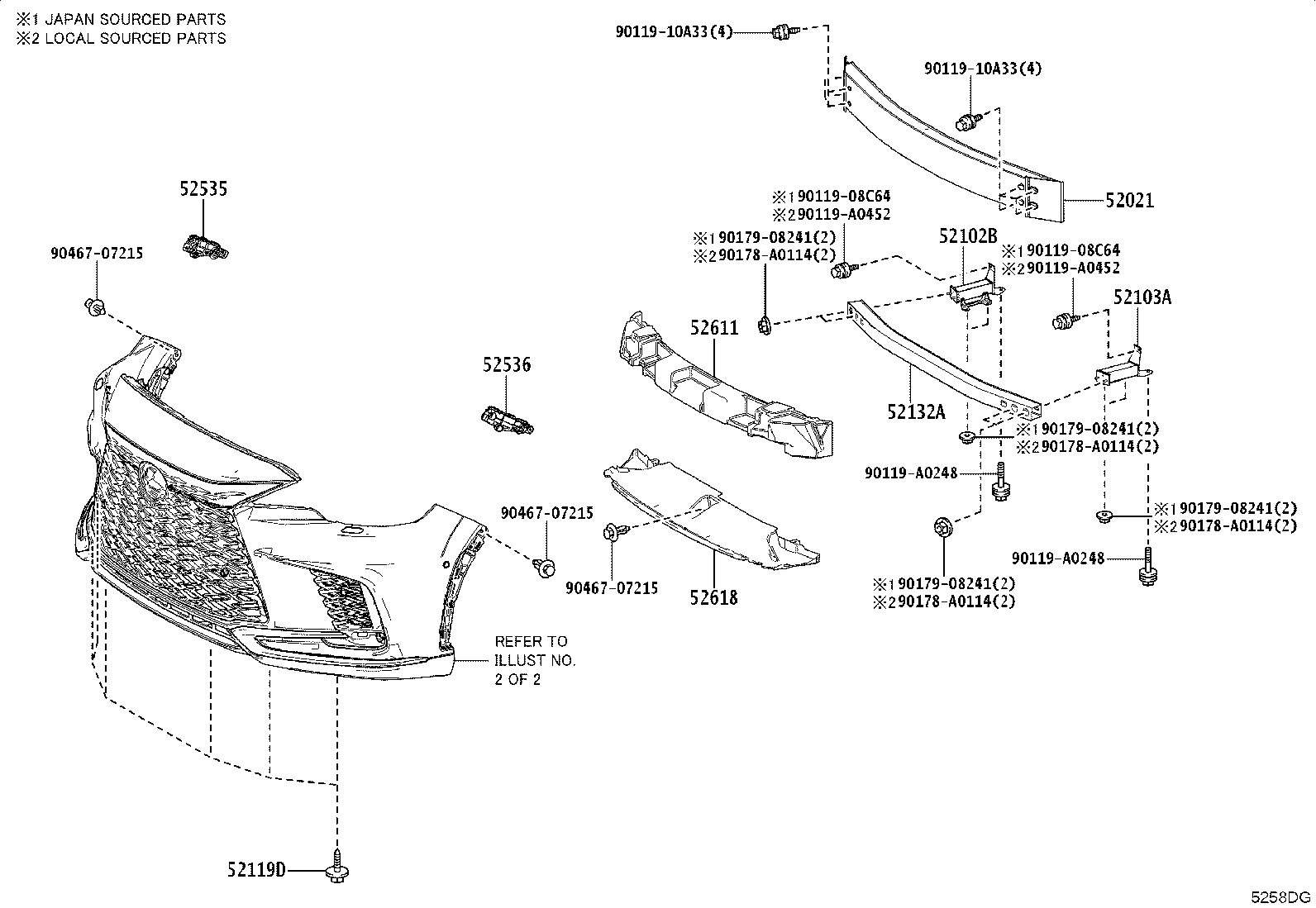

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-0E150 |
Reinforcement Sub-assy, Front Bumper
2022-10 → —
|
AALH15,TALA1# | — | |
| 52021-0E180 |
Reinforcement Sub-assy, Front Bumper
2022-10 → —
|
TALH17 | — | |
| 52102B — Extension Sub-assy, Front Bumper, RH | ||||
| 52102-0E010 |
Extension Sub-assy, Front Bumper, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52103A — Extension Sub-assy, Front Bumper, LH | ||||
| 52103-0E010 |
Extension Sub-assy, Front Bumper, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52119D — Screw, NO.1 | ||||
| 90159-60477 note |
Screw, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90159-A0059 note |
Screw, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52132A — Reinforcement, Front Bumper, NO.2 | ||||
| 52132-0E040 |
Reinforcement, Front Bumper, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-0E110 |
Retainer, Front Bumper Side, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-0E090 |
Retainer, Front Bumper Side, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-0E190 |
Absorber, Front Bumper Energy
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 52618 — Absorber, Front Bumper, Lower | ||||
| 52618-0E120 |
Absorber, Front Bumper, Lower
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
