Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

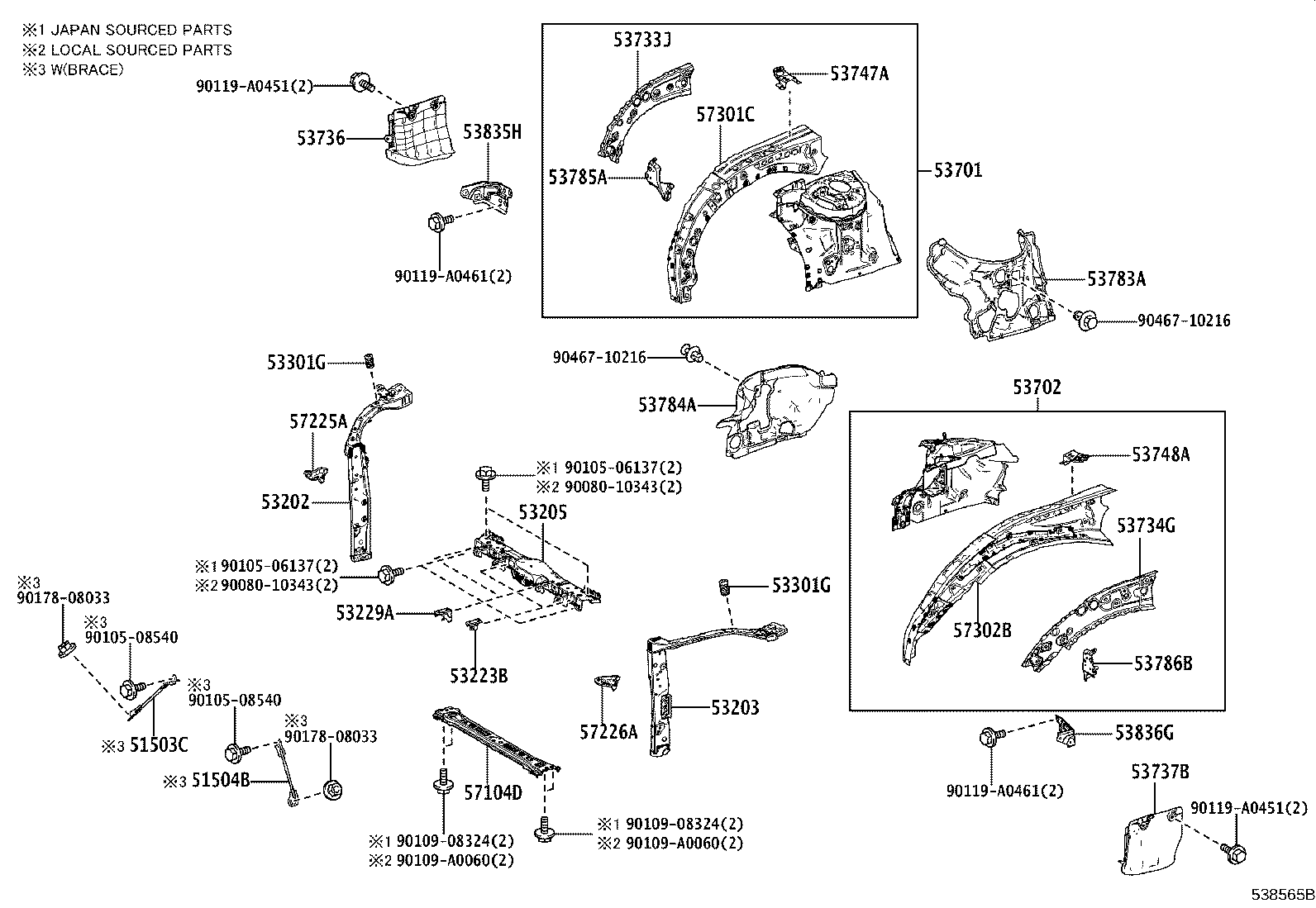

31 parts on this figure

Part number	Description	Fitment	Price
51503C — Brace Sub-assy, Lower Arm Bracket, RH
51503-0E010	Brace Sub-assy, Lower Arm Bracket, RH 2022-10 → —	TALH17	—
51504B — Brace Sub-assy, Lower Arm Bracket, LH
51504-0E010	Brace Sub-assy, Lower Arm Bracket, LH 2022-10 → —	TALH17	—
53202 — Support Sub-assy, Radiator, RH
53202-0E160	Support Sub-assy, Radiator, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53203 — Support Sub-assy, Radiator, LH
53203-0E190	Support Sub-assy, Radiator, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53205 — Support Sub-assy, Radiator, Upper
53205-0E091	Support Sub-assy, Radiator, Upper 2022-10 → —	AALH15,TALA1#,TALH17	—
53223B — Bracket, Radiator Grille Mounting
53223-0E053	Bracket, Radiator Grille Mounting 2022-10 → —	AALH15,TALA1#,TALH17	—
53229A — Bracket, Radiator Grille Mounting
53224-0E053	Bracket, Radiator Grille Mounting 2022-10 → —	AALH15,TALA1#,TALH17	—
53301G — Cushion, Hood Bumper
90541-15034	Cushion, Hood Bumper 2022-10 → —	AALH15,TALA1#,TALH17	—
53701 — Apron Sub-assy, Front Fender, RH
53701-0E160	Apron Sub-assy, Front Fender, RH 2022-10 → —	TALA1#	—
53701-0E170	Apron Sub-assy, Front Fender, RH 2022-10 → —	AALH15,TALH17	—
53702 — Apron Sub-assy, Front Fender, LH
53702-0E140	Apron Sub-assy, Front Fender, LH 2022-10 → —	TALA1#	—
53702-0E150	Apron Sub-assy, Front Fender, LH 2022-10 → —	AALH15,TALH17	—
53733J — Member, Front Apron TO Cowl Side, Outer Front RH
53733-0E070	Member, Front Apron TO Cowl Side, Outer Front RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53734G — Member, Front Apron TO Cowl Side, Outer Front LH
53734-0E070	Member, Front Apron TO Cowl Side, Outer Front LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53736 — Seal, Front Fender Apron, RH
53736-0R040	Seal, Front Fender Apron, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53737B — Seal, Front Fender Apron, LH
53737-0R010	Seal, Front Fender Apron, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53747A — Extension, Apron Fender Side, RH
53747-0E080	Extension, Apron Fender Side, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53748A — Extension, Apron Fender Side, LH
53748-0E080	Extension, Apron Fender Side, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53783A — Insulator, Apron Front Fender, RH
53783-0E050	Insulator, Apron Front Fender, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53784A — Insulator, Apron Front Fender, LH
53784-0E020	Insulator, Apron Front Fender, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53785A — Gusset, Front Fender Apron, Upper RH
53785-0E040	Gusset, Front Fender Apron, Upper RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53786B — Gusset, Front Fender Apron, Upper LH
53786-0E040	Gusset, Front Fender Apron, Upper LH 2022-10 → —	AALH15,TALA1#,TALH17	—
53835H — Brace, Front Fender TO Extension, RH
53835-0E130	Brace, Front Fender TO Extension, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
53836G — Brace, Front Fender TO Extension, LH
53836-0E130	Brace, Front Fender TO Extension, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
57104D — Member Sub-assy, Front Cross
57104-0E110	Member Sub-assy, Front Cross 2022-10 → —	AALH15,TALA1#,TALH17	—
57225A — Brace, Front Mounting Bracket, RH
57225-0E110	Brace, Front Mounting Bracket, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
57226A — Brace, Front Mounting Bracket, LH
57226-0E140	Brace, Front Mounting Bracket, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
57301C — Outrigger Sub-assy, NO.1 RH
57301-0E010	Outrigger Sub-assy, NO.1 RH 2022-10 → —	TALA1#	—
57301-0E020	Outrigger Sub-assy, NO.1 RH 2022-10 → —	AALH15,TALH17	—
57302B — Outrigger Sub-assy, NO.1 LH
57302-0E010	Outrigger Sub-assy, NO.1 LH 2022-10 → —	TALA1#	—
57302-0E020	Outrigger Sub-assy, NO.1 LH 2022-10 → —	AALH15,TALH17	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
