Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

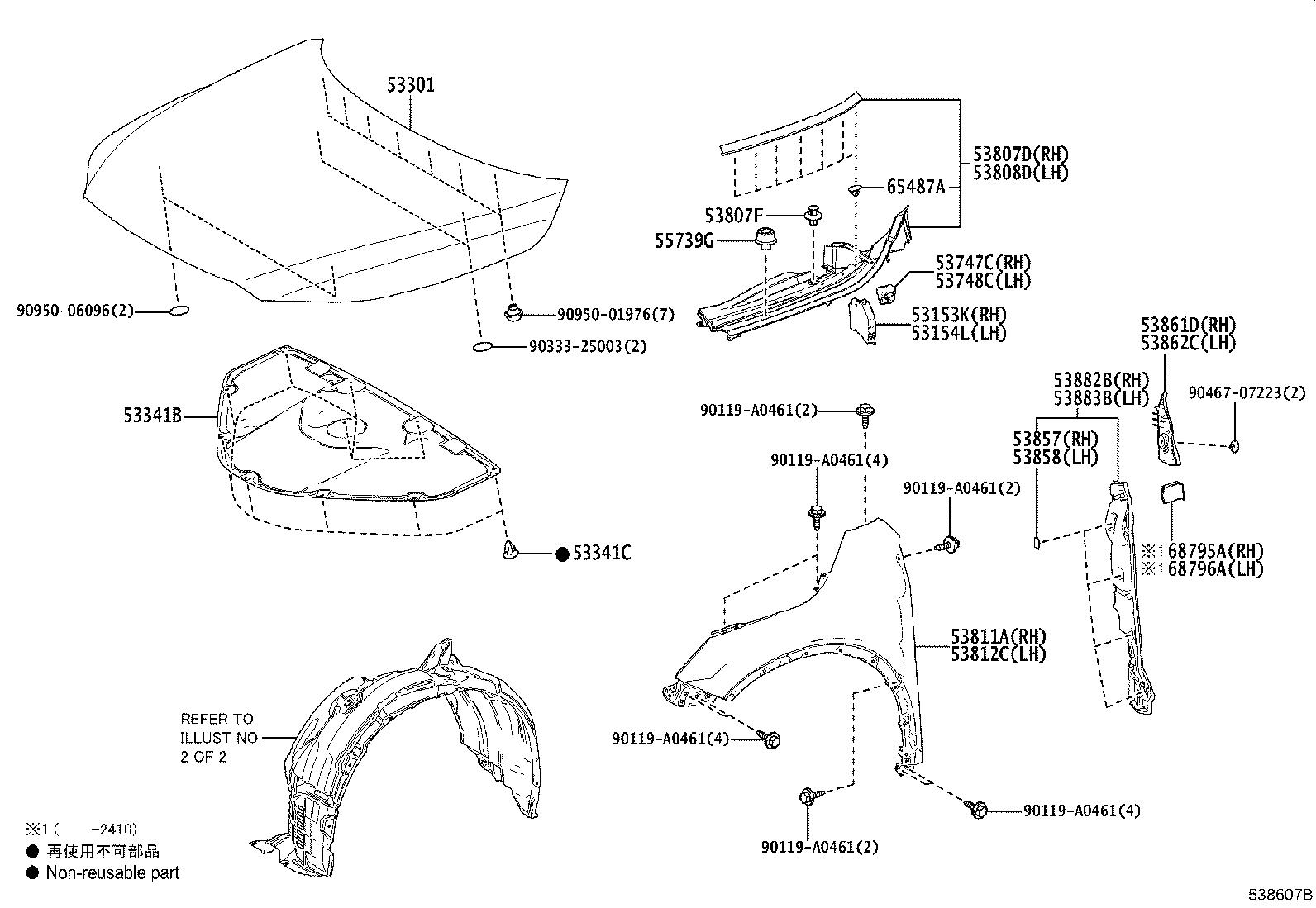

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53153K — Guide, Radiator Grille Side Air, RH | ||||
| 53153-0E100 |
Guide, Radiator Grille Side Air, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53154L — Guide, Radiator Grille Side Air, LH | ||||
| 53154-0E100 |
Guide, Radiator Grille Side Air, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53301 — Hood Sub-assy | ||||
| 53301-0E260 |
Hood Sub-assy
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53341B — Insulator, Hood | ||||
| 53341-0E170 |
Insulator, Hood
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53341C — Clip(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
Clip(FOR HOOD INSULATOR)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53747C — Plate, Air Sealed, RH | ||||
| 53747-0E070 |
Plate, Air Sealed, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53748C — Plate, Air Sealed, LH | ||||
| 53748-0E070 |
Plate, Air Sealed, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53807D — Reinforcement Sub-assy, Front Fender, Top RH | ||||
| 53807-0E150 |
Reinforcement Sub-assy, Front Fender, Top RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53807F — Clip, Front Fender Reinforcement | ||||
| 90467-07217 |
Clip, Front Fender Reinforcement
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53808D — Reinforcement Sub-assy, Front Fender, Top LH | ||||
| 53808-0E150 |
Reinforcement Sub-assy, Front Fender, Top LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53811A — Panel, Front Fender, RH | ||||
| 53811-0E230 |
Panel, Front Fender, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53812C — Panel, Front Fender, LH | ||||
| 53812-0E190 |
Panel, Front Fender, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53857 — Retainer, Front Wheel Opening Extension, RH | ||||
| 53857-12010 |
Retainer, Front Wheel Opening Extension, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53858 — Retainer, Front Wheel Opening Extension, LH | ||||
| 53857-12010 |
Retainer, Front Wheel Opening Extension, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53861D — Seal, Front Fender TO Door Hinge, Upper RH | ||||
| 53861-0E010 |
Seal, Front Fender TO Door Hinge, Upper RH
2022-10 → 2023-02
ended
|
AALH15,TALA1#,TALH17 | — | |
| 53861-0E011 |
Seal, Front Fender TO Door Hinge, Upper RH
2023-03 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53862C — Seal, Front Fender TO Door Hinge, Upper LH | ||||
| 53862-0E010 |
Seal, Front Fender TO Door Hinge, Upper LH
2022-10 → 2023-02
ended
|
AALH15,TALA1#,TALH17 | — | |
| 53862-0E011 |
Seal, Front Fender TO Door Hinge, Upper LH
2023-03 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53882B — Seal, Front Fender, RH | ||||
| 53882-0E080 |
Seal, Front Fender, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53883B — Seal, Front Fender, LH | ||||
| 53883-0E160 |
Seal, Front Fender, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55739G — Stopper, Hood | ||||
| 55739-48010 |
Stopper, Hood
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 65487A — Clip, Corner Protector | ||||
| 65487-06020 |
Clip, Corner Protector
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68795A — Cover, Door Hinge, NO.1 RH | ||||
| 68795-0E010 |
Cover, Door Hinge, NO.1 RH
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 68796A — Cover, Door Hinge, NO.1 LH | ||||
| 68795-0E010 |
Cover, Door Hinge, NO.1 LH
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
