Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

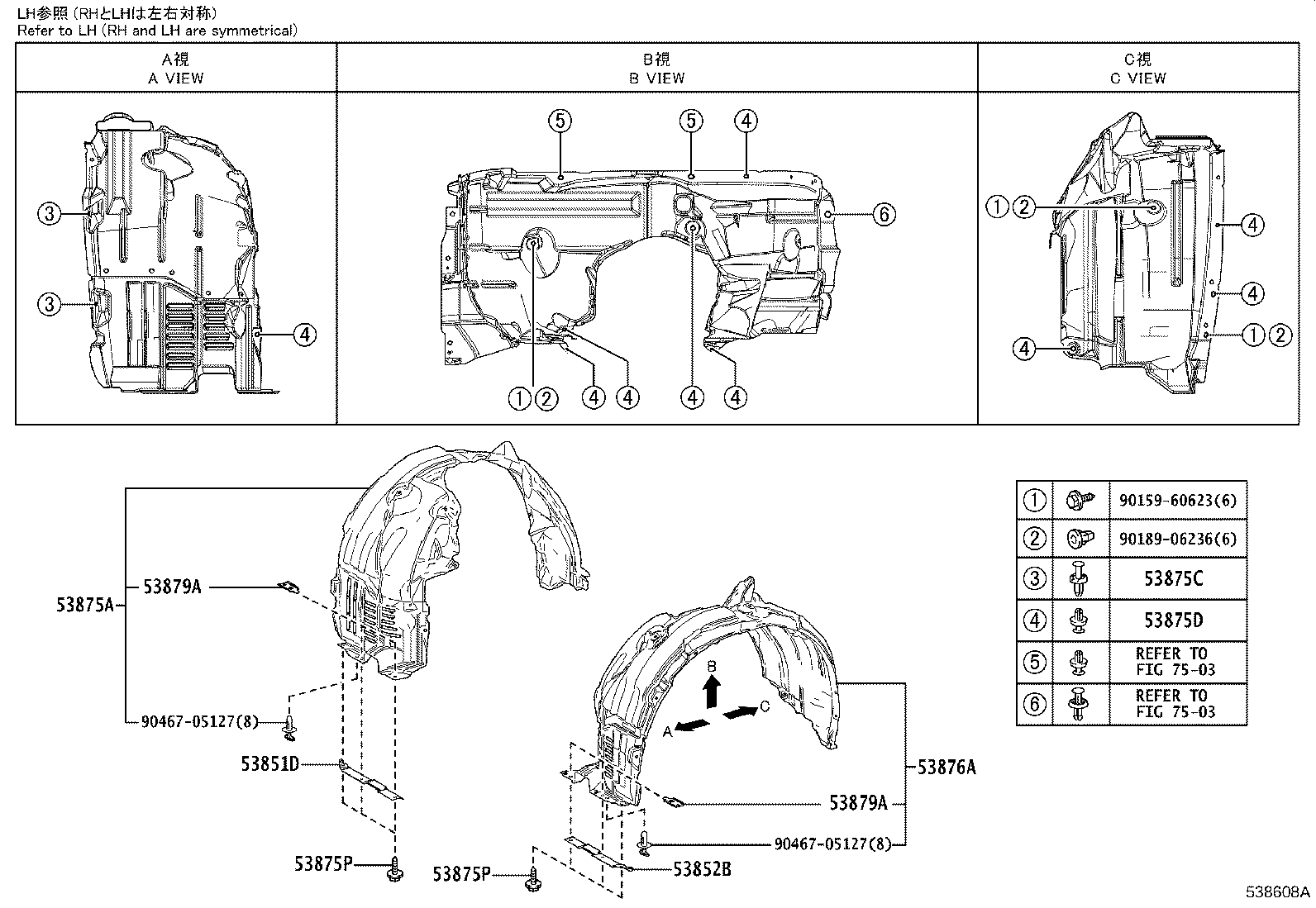

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-0E130 |
Pad, Front Wheel Opening Extension, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-0E090 |
Pad, Front Wheel Opening Extension, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53805-0E160 note |
Liner, Front Fender, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53805-48210 note |
Liner, Front Fender, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-05170 |
Clip, Front Fender Liner
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53875D — Clip, Front Fender Liner, NO.2 | ||||
| 90467-A0037 |
Clip, Front Fender Liner, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-A0059 |
Screw, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53806-0E230 note |
Liner, Front Fender, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53806-48200 note |
Liner, Front Fender, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-06010 |
Retainer, Front Fender Liner
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
