Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

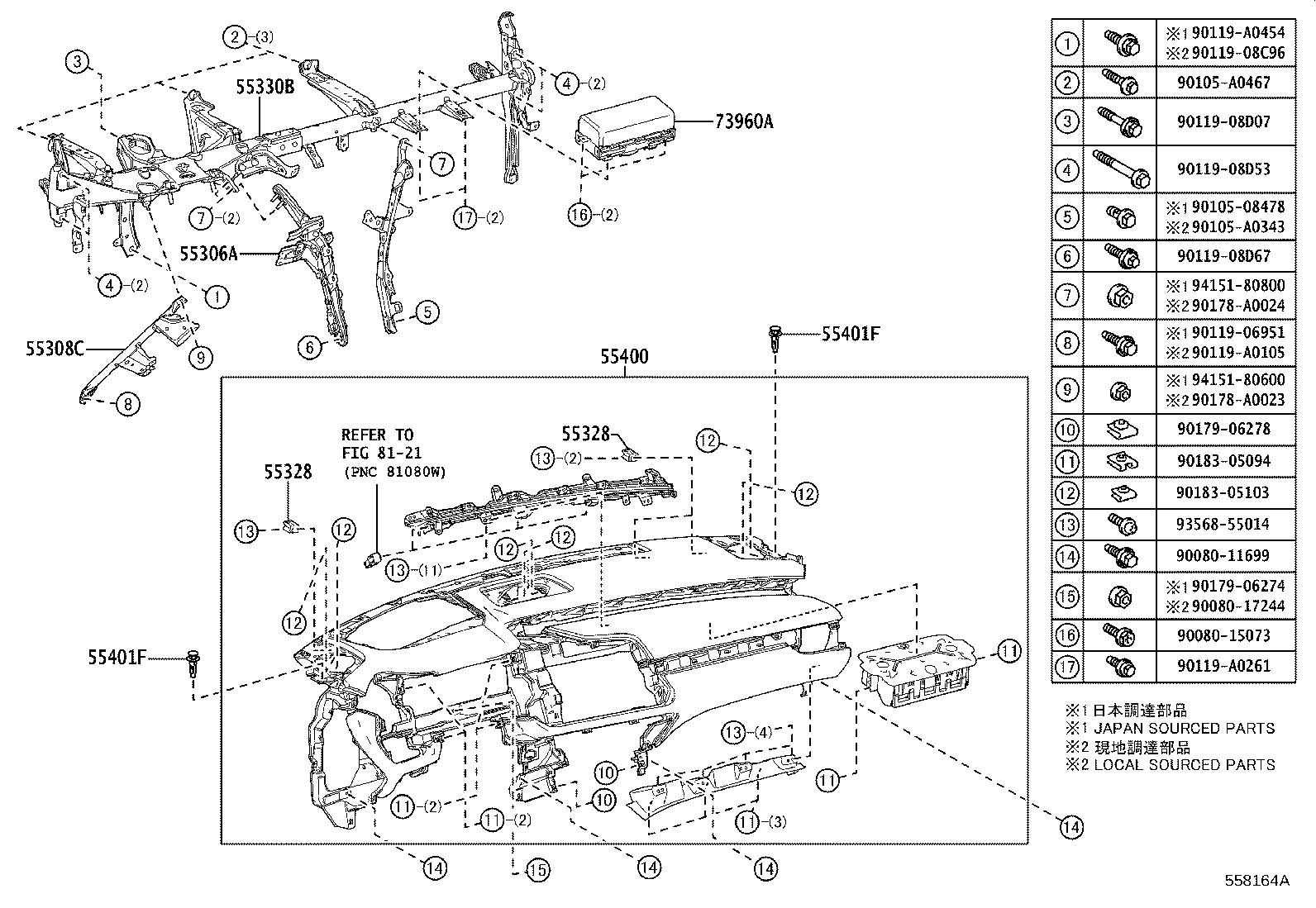

Exploded illustration 558164A 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (1 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (1 parts) 8121 — not listed in this catalogue 9356855014 — not listed in this catalogue 9008011699 — not listed in this catalogue 9018305103 — not listed in this catalogue 90119A0454 — not listed in this catalogue 9011908C96 — not listed in this catalogue 9010508478 — not listed in this catalogue 90105A0343 — not listed in this catalogue 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178A0024 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9011906951 — not listed in this catalogue 90119A0105 — not listed in this catalogue 90105A0467 — not listed in this catalogue 9011908D07 — not listed in this catalogue 9011908D53 — not listed in this catalogue 9008015073 — not listed in this catalogue 90119A0261 — not listed in this catalogue 9017906278 — not listed in this catalogue 9018305094 — not listed in this catalogue 9011908D67 — not listed in this catalogue 55401F — CLIP(FOR SAFETY PAD) (1 parts) 55401F — CLIP(FOR SAFETY PAD) (1 parts) 55400 — PAD ASSY, INSTRUMENT PANEL SAFETY (12 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (1 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (1 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (1 parts)
558164A · 9 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-0E160 Brace Sub-assy, Instrument Panel, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-0E140 Bracket Sub-assy, Instrument Panel, Center
2022-10 → —
AALH15,TALA1#,TALH17 —
55328 — Pin, Instrument Panel, NO.1
55328-12430 Pin, Instrument Panel, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
55330B — Reinforcement Assy, Instrument Panel
55330-0E280 Reinforcement Assy, Instrument Panel
2022-10 → —
AALH15,TALA1#,TALH17 —
55400 — Pad Assy, Instrument Panel Safety
55400-0E020-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2025-10 ended
AALH15,TALA1# —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2024-11 ended
TALH17 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2023-09 → 2024-11 ended
AALH15,TALA10 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2023-09 → 2024-11 ended
TALA15 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2023-09 ended
TALA15 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2023-09 ended
AALH15,TALA10 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2023-09 ended
TALA15 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2023-09 ended
AALH15,TALA10 —
55400-0E030-C0 note Pad Assy, Instrument Panel Safety
2022-10 → 2023-09 ended
TALA15 —
55400-0E031-C0 note Pad Assy, Instrument Panel Safety
2024-11 → —
TALH17 —
55400-0E031-C0 note Pad Assy, Instrument Panel Safety
2024-11 → —
TALA15 —
55400-0E031-C0 note Pad Assy, Instrument Panel Safety
2024-11 → —
AALH15,TALA10 —
55401F — Clip(FOR SAFETY PAD)
52161-16010 Clip(FOR SAFETY PAD)
2022-10 → —
AALH15,TALA1#,TALH17 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-0E170 Airbag Assy, Instrument Panel Passenger W/O Door
2022-10 → —
AALH15,TALA1#,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
