Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

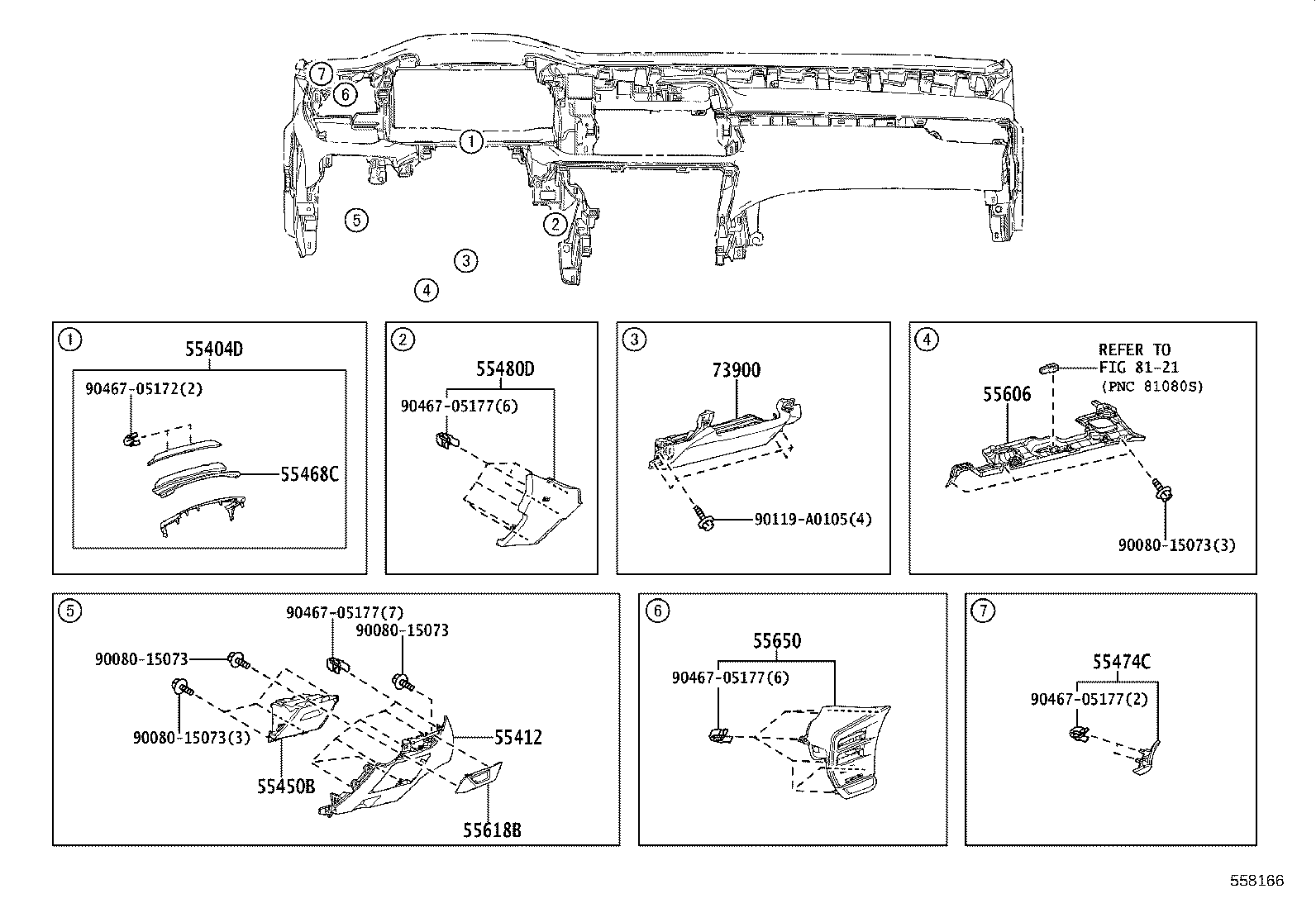

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55404D — Panel Sub-assy, Instrument Cluster Finish | ||||
| 55404-0E041 |
Panel Sub-assy, Instrument Cluster Finish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55412 — Panel, Instrument Cluster Finish, End | ||||
| 55414-0E250-C0 note |
Panel, Instrument Cluster Finish, End
2022-10 → —
|
TALH17 | — | |
| 55414-0E250-C0 note |
Panel, Instrument Cluster Finish, End
2022-10 → —
|
TALA15 | — | |
| 55414-0E250-C0 note |
Panel, Instrument Cluster Finish, End
2022-10 → —
|
AALH15,TALA10 | — | |
| 55450B — Box Assy, Coin | ||||
| 55450-0E110-C0 note |
Box Assy, Coin
2022-10 → —
|
TALH17 | — | |
| 55450-0E110-C0 note |
Box Assy, Coin
2022-10 → —
|
TALA15 | — | |
| 55450-0E110-C0 note |
Box Assy, Coin
2022-10 → —
|
AALH15,TALA10 | — | |
| 55468C — Seal, Instrument Cluster Finish Panel, NO.1 | ||||
| 55468-0E080 |
Seal, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55474C — Garnish, Instrument Cluster Finish Panel, NO.1 | ||||
| 55474-0E140-A3 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E140-C3 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E140-E3 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E150-A1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E150-A1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALA15 | — | |
| 55474-0E150-C1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALH17 | — | |
| 55474-0E150-C1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALA15 | — | |
| 55474-0E150-C1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALA15 | — | |
| 55474-0E150-C2 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALH17 | — | |
| 55474-0E150-C2 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALA15 | — | |
| 55474-0E150-C2 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E150-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55474-0E150-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2022-10 → —
|
TALA15 | — | |
| 55480D — Panel Assy, Instrument Panel Finish, Lwr | ||||
| 55480-0E030-C0 note |
Panel Assy, Instrument Panel Finish, Lwr
2022-10 → —
|
TALH17 | — | |
| 55480-0E030-C0 note |
Panel Assy, Instrument Panel Finish, Lwr
2022-10 → —
|
TALA15 | — | |
| 55480-0E030-C0 note |
Panel Assy, Instrument Panel Finish, Lwr
2022-10 → —
|
AALH15,TALA10 | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-0E120 |
Cover Sub-assy, Instrument Panel Under, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55618B — Base, Switch Hole, NO.3 | ||||
| 55618-0E190 |
Base, Switch Hole, NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-0E250 |
Register Assy, Instrument Panel, NO.1
2022-10 → —
|
TALH17 | — | |
| 55650-0E250 note |
Register Assy, Instrument Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55650-0E250 note |
Register Assy, Instrument Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 55650-0E290 |
Register Assy, Instrument Panel, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-0E160-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2022-10 → —
|
TALH17 | — | |
| 73900-0E160-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2022-10 → —
|
TALA15 | — | |
| 73900-0E160-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2022-10 → —
|
AALH15,TALA10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
