Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

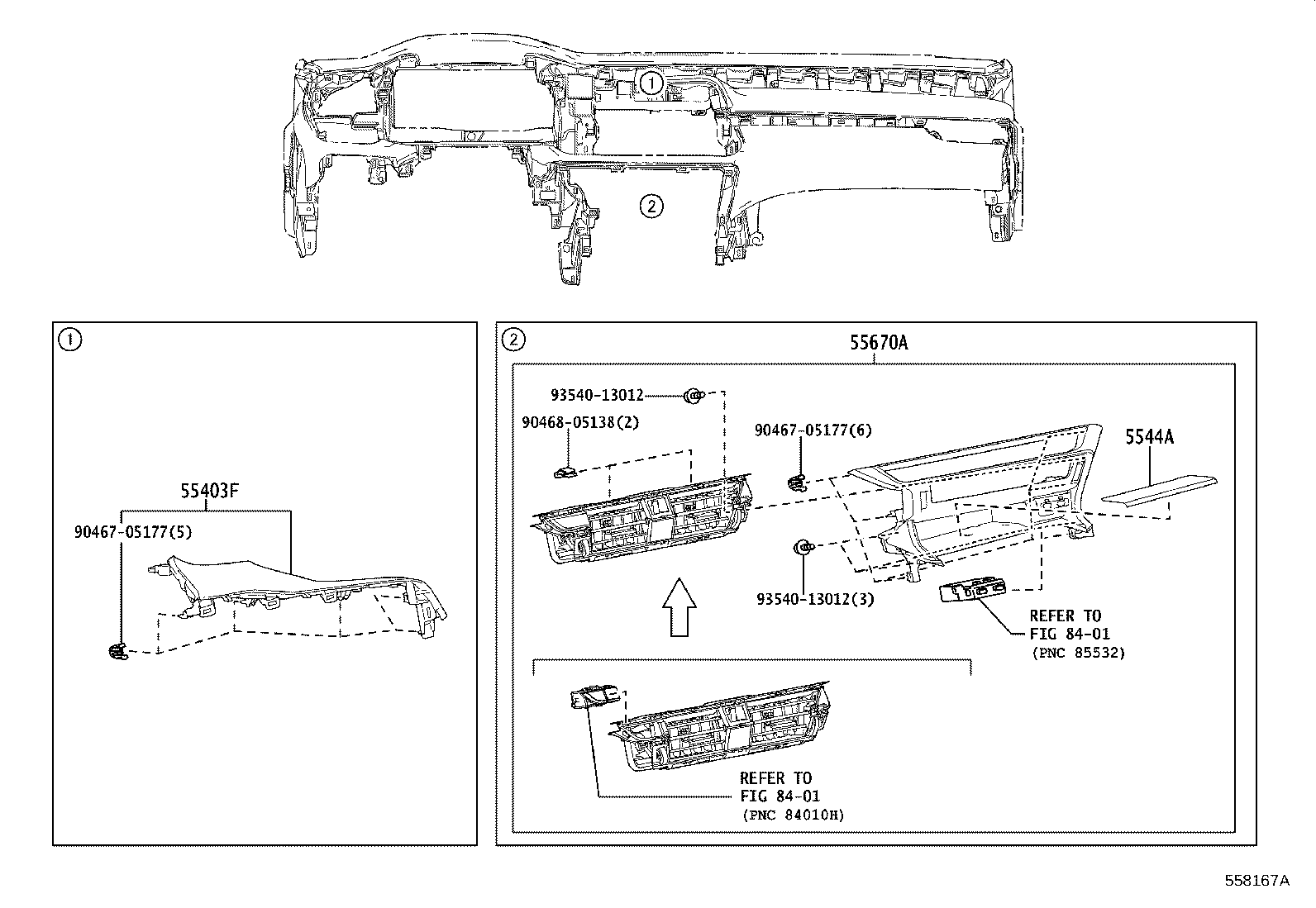

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55403F — Panel Sub-assy, Instrument Panel Finish | ||||
| 55403-0E180 |
Panel Sub-assy, Instrument Panel Finish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 5544A — Mat, Insutrument Panel Tray | ||||
| 5544A-0E010 |
Mat, Insutrument Panel Tray
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-0E170-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 55670-0E170-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALA15 | — | |
| 55670-0E170-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
AALH15,TALA10 | — | |
| 55670-0E180-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 55670-0E180-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALA15 | — | |
| 55670-0E180-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
AALH15,TALA10 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALA15 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
AALH15,TALA10 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2022-10 → 2024-11
ended
|
AALH15 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2023-09 → 2024-11
ended
|
TALA15 | — | |
| 55670-0E190-C0 note |
Register Assy, Instrument Panel, Center
2023-09 → 2024-11
ended
|
TALA10 | — | |
| 55670-0E270-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 55670-0E280-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALH17 | — | |
| 55670-0E280-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALA15 | — | |
| 55670-0E280-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
AALH15,TALA10 | — | |
| 55670-0E290-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 55670-0E300-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALH17 | — | |
| 55670-0E300-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALA15 | — | |
| 55670-0E300-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
AALH15,TALA10 | — | |
| 55670-0E310-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 55670-0E310-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALH17 | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALH17 | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALA15 | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
AALH15,TALA10 | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
TALA15 | — | |
| 55670-0E320-C0 note |
Register Assy, Instrument Panel, Center
2024-11 → —
|
AALH15,TALA10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
