Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

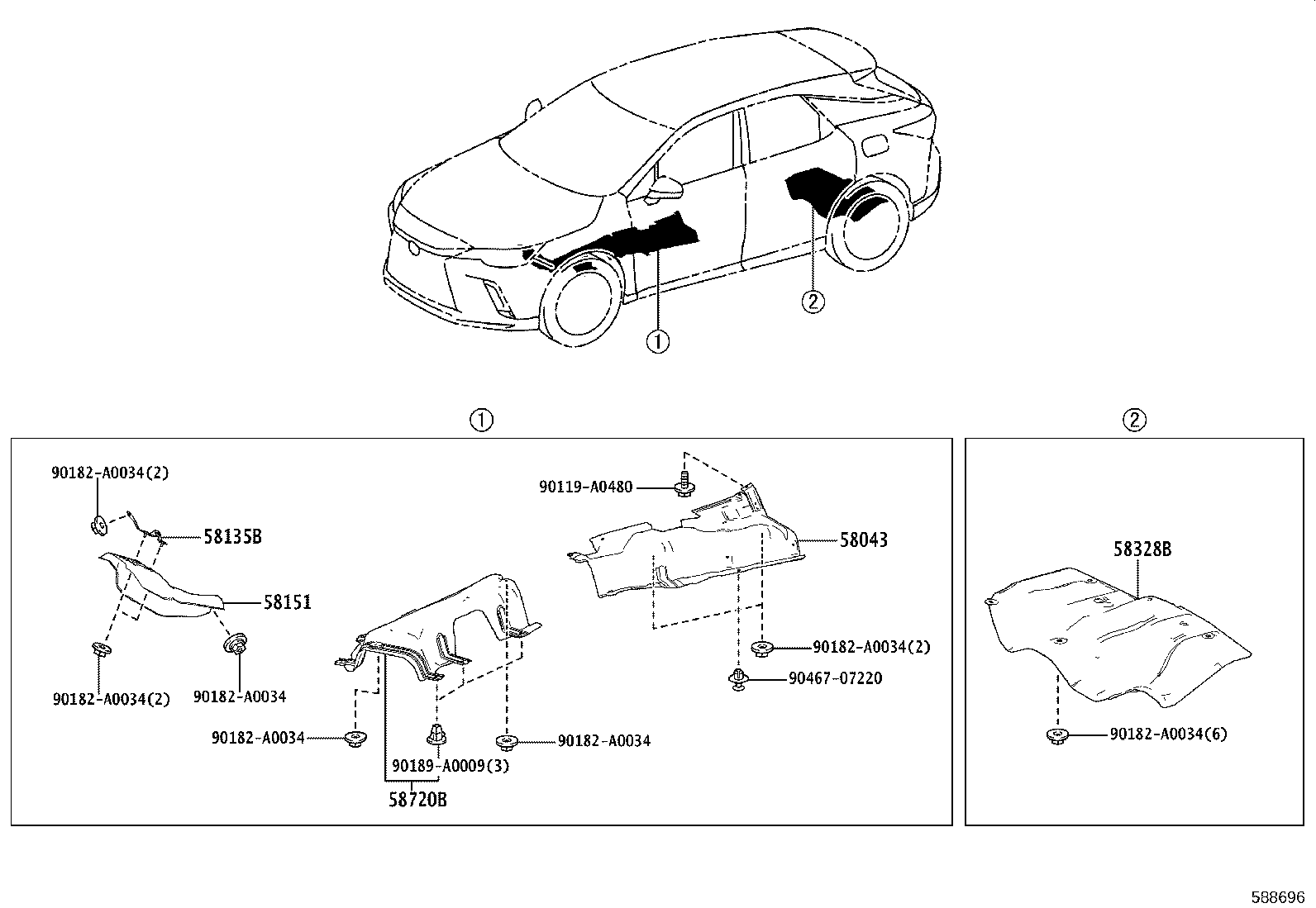

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58043 — Insulator Sub-assy, Main Muffler Heat, Rear | ||||
| 58043-0E091 |
Insulator Sub-assy, Main Muffler Heat, Rear
2022-10 → —
|
TALA1# | — | |
| 58043-0E101 |
Insulator Sub-assy, Main Muffler Heat, Rear
2022-10 → —
|
AALH15,TALH17 | — | |
| 58135B — Bracket, Floor Insulator Support | ||||
| 58135-0E030 |
Bracket, Floor Insulator Support
2022-10 → —
|
AALH15 | — | |
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-0E080 |
Insulator, Front Floor Heat, NO.1
2022-10 → —
|
AALH15 | — | |
| 58151-0E110 |
Insulator, Front Floor Heat, NO.1
2022-10 → —
|
TALA1#,TALH17 | — | |
| 58328B — Insulator, Main Muffler Heat, Lower | ||||
| 58328-0E050 |
Insulator, Main Muffler Heat, Lower
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58720B — Cover Assy, Engine Service | ||||
| 58720-0E071 |
Cover Assy, Engine Service
2022-10 → —
|
TALA1#,TALH17 | — | |
| 58720-0E121 |
Cover Assy, Engine Service
2022-10 → —
|
AALH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
