Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 588702 55238B — PLATE, DASH PANEL INSULATOR, LOWER RH (1 parts) 58111A — PAN, FRONT FLOOR, RH (1 parts) 57451A — MEMBER, FRONT FLOOR CROSS, RH (1 parts) 57452C — MEMBER, FRONT FLOOR CROSS, LH (1 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (1 parts) 58136B — COVER, CENTER FLOOR HOLE (1 parts) 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (1 parts) 55239J — PLATE, DASH PANEL INSULATOR, LOWER LH (1 parts) 58112C — PAN, FRONT FLOOR, LH (1 parts) 58013B — PANEL SUB-ASSY, FRONT FLOOR, CENTER (3 parts) 57062B — BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH (2 parts) 57691B — BRACKET, FUEL TANK MOUNTING, FRONT CENTER (1 parts) 58204A — REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH (2 parts) 58211H — PAN, CENTER FLOOR (3 parts) 57405F — MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR (1 parts) 57671G — MEMBER, REAR FLOOR CROSS, NO.1 RH (1 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (1 parts) 58301G — PAN SUB-ASSY, REAR FLOOR (2 parts) 57672F — MEMBER, REAR FLOOR CROSS, NO.1 LH (1 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (1 parts) 58203A — REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH (1 parts) 58202A — PAN SUB-ASSY, CENTER FLOOR, FRONT (1 parts) 58368B — BRACKET, FUEL TUBE, NO.2 (1 parts) 55713G — BRACKET, FRONT LOWER PANEL (1 parts) 58395E — GUSSET, BACK DOOR OPENING, LOWER RH (2 parts) 58385D — BRACKET, REAR BUMPER COVER (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (1 parts) 58384E — GUSSET, LOWER BACK PANEL, NO.1 RH (1 parts) 58385F — GUSSET, LOWER BACK PANEL, NO.1 LH (1 parts) 58385D — BRACKET, REAR BUMPER COVER (1 parts) 58385D — BRACKET, REAR BUMPER COVER (1 parts) 58385D — BRACKET, REAR BUMPER COVER (1 parts) 58396K — GUSSET, BACK DOOR OPENING, LOWER LH (2 parts) 90182A0034 — not listed in this catalogue 9008011610 — not listed in this catalogue 90119A0105 — not listed in this catalogue 5701 — not listed in this catalogue 90119A0105 — not listed in this catalogue 90119A0105 — not listed in this catalogue 90119A0105 — not listed in this catalogue 58325E — COVER, REAR FLOOR SERVICE HOLE (2 parts) 58726C — STAY, ENGINE SERVICE COVER, NO.2 (1 parts) 90182A0034 — not listed in this catalogue

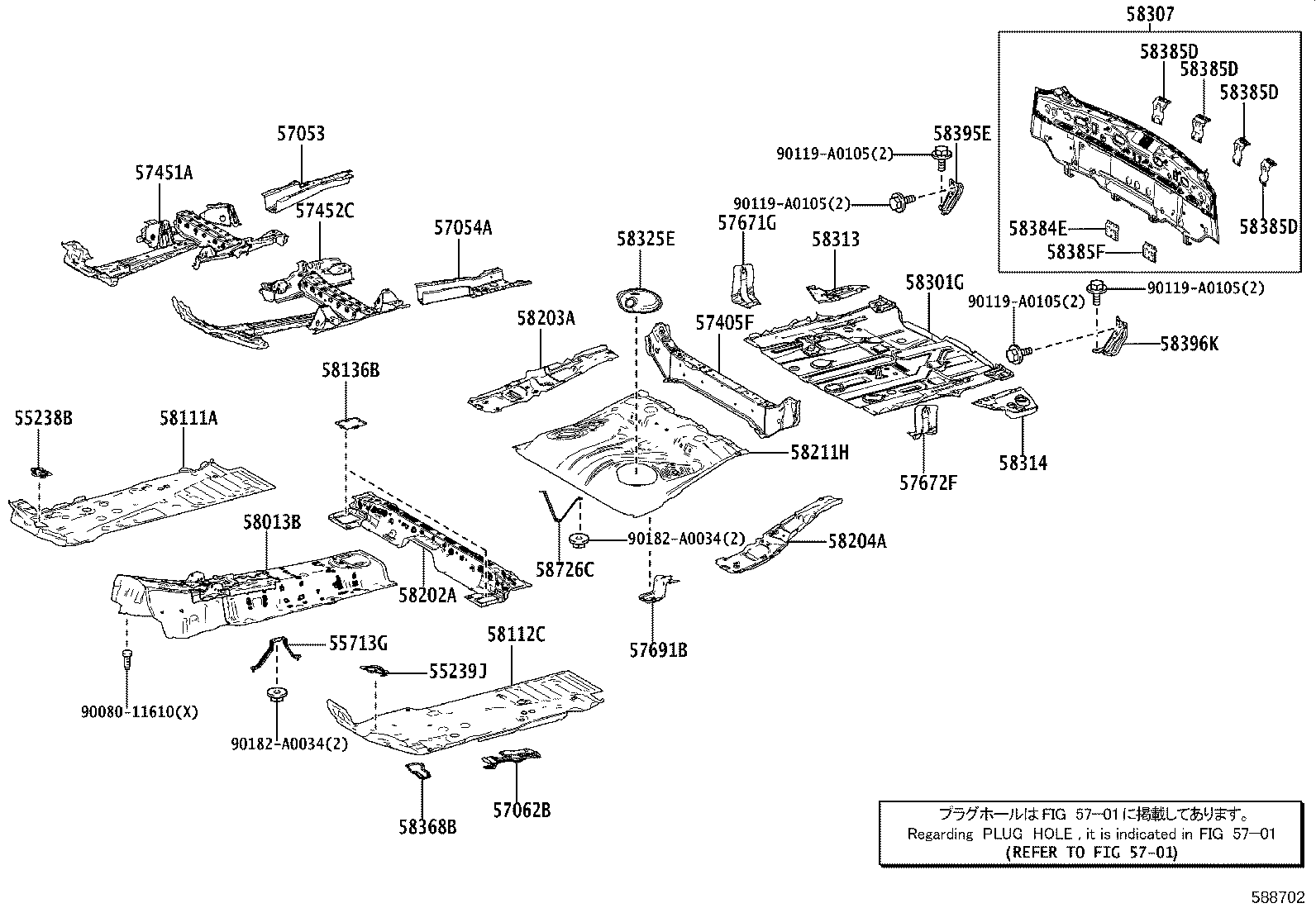

588702 · 35 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
55238B — Plate, Dash Panel Insulator, Lower RH
55238-0R010 Plate, Dash Panel Insulator, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
55239J — Plate, Dash Panel Insulator, Lower LH
55239-0R010 Plate, Dash Panel Insulator, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
55713G — Bracket, Front Lower Panel
55713-0E150 Bracket, Front Lower Panel
2022-10 → —
AALH15,TALA1#,TALH17 —
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-0R030 Reinforcement Sub-assy, Front Floor Crossmember, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-0R040 Reinforcement Sub-assy, Front Floor Crossmember, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
57062B — Bracket Sub-assy, Fuel Tank Support, LH
57062-0E060 Bracket Sub-assy, Fuel Tank Support, LH
2022-10 → —
AALH15,TALH17 —
57062-0R010 Bracket Sub-assy, Fuel Tank Support, LH
2022-10 → —
TALA1# —
57405F — Member Sub-assy, Center Floor Cross, Rear
57405-0E010 Member Sub-assy, Center Floor Cross, Rear
2022-10 → —
AALH15,TALA1#,TALH17 —
57451A — Member, Front Floor Cross, RH
57051-0E050 Member, Front Floor Cross, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
57452C — Member, Front Floor Cross, LH
57052-0E050 Member, Front Floor Cross, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
57671G — Member, Rear Floor Cross, NO.1 RH
57671-0E040 Member, Rear Floor Cross, NO.1 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
57672F — Member, Rear Floor Cross, NO.1 LH
57672-0E040 Member, Rear Floor Cross, NO.1 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
57691B — Bracket, Fuel Tank Mounting, Front Center
57691-0E140 Bracket, Fuel Tank Mounting, Front Center
2022-10 → —
TALA1# —
58013B — Panel Sub-assy, Front Floor, Center
58013-0E110 Panel Sub-assy, Front Floor, Center
2022-10 → —
TALA1# —
58013-0E120 Panel Sub-assy, Front Floor, Center
2022-10 → —
AALH15 —
58013-0E170 Panel Sub-assy, Front Floor, Center
2022-10 → —
TALH17 —
58111A — Pan, Front Floor, RH
58111-F6010 Pan, Front Floor, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58112C — Pan, Front Floor, LH
58112-F6010 Pan, Front Floor, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58136B — Cover, Center Floor Hole
58136-0E040 Cover, Center Floor Hole
2022-10 → —
AALH15,TALA1#,TALH17 —
58202A — Pan Sub-assy, Center Floor, Front
58202-0E160 Pan Sub-assy, Center Floor, Front
2022-10 → —
AALH15,TALA1#,TALH17 —
58203A — Reinforcement Sub-assy, Center Floor Panel, RH
58203-0E060 Reinforcement Sub-assy, Center Floor Panel, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58204A — Reinforcement Sub-assy, Center Floor Panel, LH
58204-0E080 Reinforcement Sub-assy, Center Floor Panel, LH
2022-10 → 2023-04 ended
AALH15,TALA1#,TALH17 —
58204-0E081 Reinforcement Sub-assy, Center Floor Panel, LH
2023-05 → —
AALH15,TALA1#,TALH17 —
58211H — Pan, Center Floor
58211-0E130 Pan, Center Floor
2022-10 → —
TALA1# —
58211-0E140 Pan, Center Floor
2022-10 → —
TALH17 —
58211-0E190 Pan, Center Floor
2022-10 → —
AALH15 —
58301G — Pan Sub-assy, Rear Floor
58301-0E903 Pan Sub-assy, Rear Floor
2022-10 → —
TALA1# —
58301-0E904 Pan Sub-assy, Rear Floor
2022-10 → —
AALH15,TALH17 —
58307 — Panel Sub-assy, Body Lower Back
58307-0E150 Panel Sub-assy, Body Lower Back
2022-10 → —
AALH15,TALA1#,TALH17 —
58313 — Panel, Rear Floor Side, RH
58313-0E110 Panel, Rear Floor Side, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58314 — Panel, Rear Floor Side, LH
58314-0E100 Panel, Rear Floor Side, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58325E — Cover, Rear Floor Service Hole
58325-0E040 Cover, Rear Floor Service Hole
2022-10 → —
TALA1# —
58325-0E050 Cover, Rear Floor Service Hole
2022-10 → —
AALH15,TALH17 —
58368B — Bracket, Fuel Tube, NO.2
58368-0R010 Bracket, Fuel Tube, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
58384E — Gusset, Lower Back Panel, NO.1 RH
58384-0E040 Gusset, Lower Back Panel, NO.1 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58385D — Bracket, Rear Bumper Cover
58385-0E100 Bracket, Rear Bumper Cover
2022-10 → —
AALH15,TALA1#,TALH17 —
58385F — Gusset, Lower Back Panel, NO.1 LH
58384-0E040 Gusset, Lower Back Panel, NO.1 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58395E — Gusset, Back Door Opening, Lower RH
58395-0E010 note Gusset, Back Door Opening, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58395-48010 note Gusset, Back Door Opening, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
58396K — Gusset, Back Door Opening, Lower LH
58396-0E010 note Gusset, Back Door Opening, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58396-48010 note Gusset, Back Door Opening, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
58726C — Stay, Engine Service Cover, NO.2
58726-0E050 Stay, Engine Service Cover, NO.2
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
