Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 588718 8401 — not listed in this catalogue 8715 — not listed in this catalogue 8121 — not listed in this catalogue 55394G — COVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH (3 parts) 55395D — COVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH (3 parts) 58815A — CARPET, CONSOLE BOX (1 parts) 58833B — GARNISH, CONSOLE UPPER PANEL, NO.1 (6 parts) 58834B — GARNISH, CONSOLE UPPER PANEL, NO.2 (6 parts) 58836B — PAD, CONSOLE BOX SILENCER, NO.1 (5 parts) 58837A — PAD, CONSOLE BOX SILENCER, NO.2 (5 parts) 58860A — REGISTER ASSY, CONSOLE BOX (1 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (11 parts) 58910C — BOX ASSY, CONSOLE, REAR (3 parts) 58911A — PANEL, BOX SIDE, NO.1 (3 parts) 58912C — PANEL, BOX SIDE, NO.2 (3 parts) 58923A — PANEL, CONSOLE REAR END (3 parts) 58933 — GARNISH, CONSOLE REAR END PANEL (6 parts) 58991G — CLIP (3 parts) 58991G — CLIP (3 parts) 58993A — BRACKET, CONSOLE BOX MOUNTING, LOWER (1 parts) 58994A — BRACKET, CONSOLE BOX MOUNTING, NO.4 (1 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (1 parts) 58997 — BRACKET, CONSOLE BOX MOUNTING, NO.3 (1 parts) 9008011699 — not listed in this catalogue 9008011699 — not listed in this catalogue 9008011699 — not listed in this catalogue 9008011699 — not listed in this catalogue 9008011699 — not listed in this catalogue 9008017273 — not listed in this catalogue 9008017273 — not listed in this catalogue 9008017273 — not listed in this catalogue 9010508478 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9155180828 — not listed in this catalogue 9155180828 — not listed in this catalogue 9356014012 — not listed in this catalogue 9356054010 — not listed in this catalogue 9356054010 — not listed in this catalogue

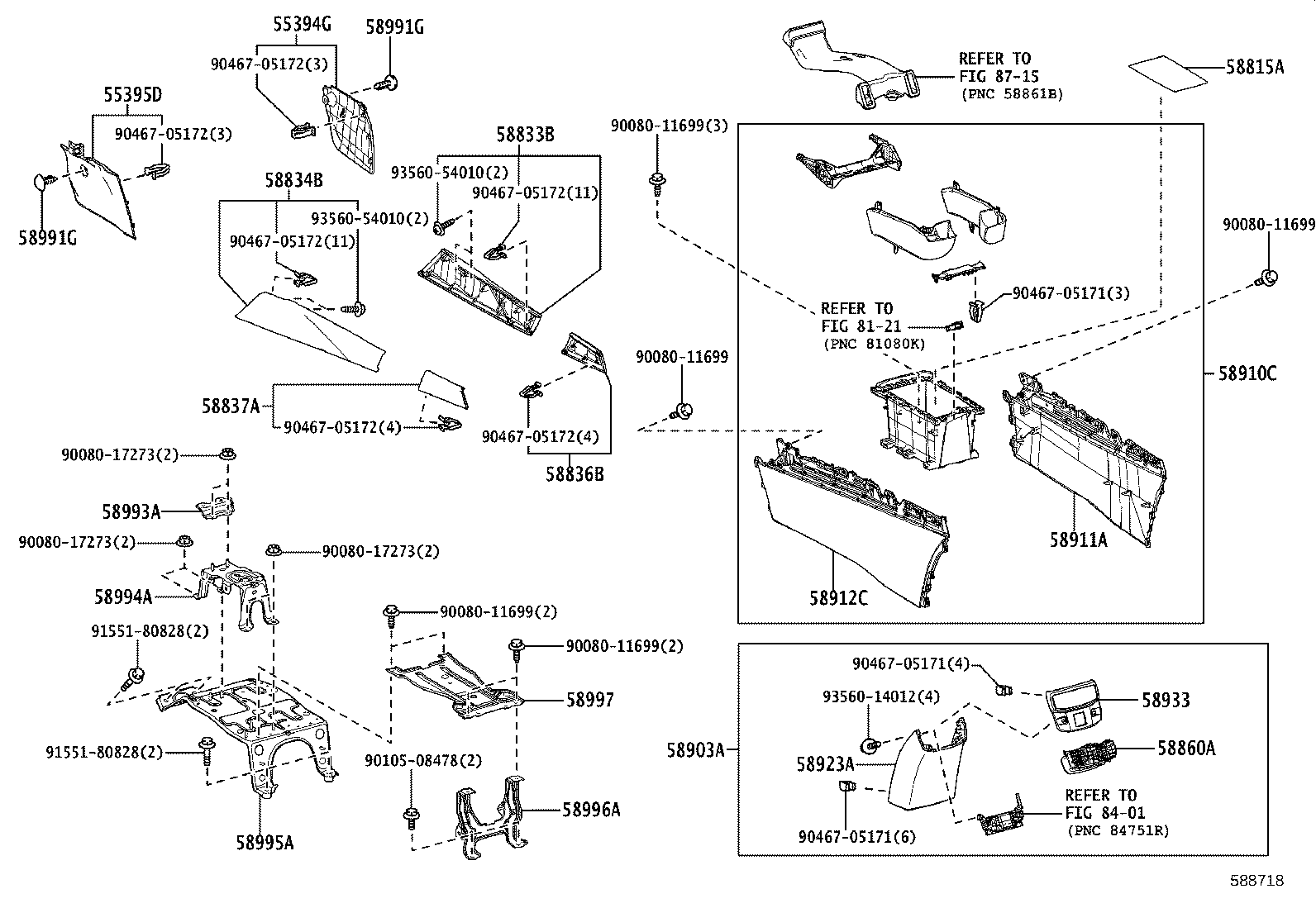

588718 · 21 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
55394G — Cover, Instrument Panel Brace, Inner NO.1 RH
55394-0E030-C0 note Cover, Instrument Panel Brace, Inner NO.1 RH
2022-10 → —
TALA15 —
55394-0E030-C0 note Cover, Instrument Panel Brace, Inner NO.1 RH
2022-10 → —
TALH17 —
55394-0E030-C0 note Cover, Instrument Panel Brace, Inner NO.1 RH
2022-10 → —
AALH15,TALA10 —
55395D — Cover, Instrument Panel Brace, Inner NO.1 LH
55395-0E020-C0 note Cover, Instrument Panel Brace, Inner NO.1 LH
2022-10 → —
TALH17 —
55395-0E020-C0 note Cover, Instrument Panel Brace, Inner NO.1 LH
2022-10 → —
TALA15 —
55395-0E020-C0 note Cover, Instrument Panel Brace, Inner NO.1 LH
2022-10 → —
AALH15,TALA10 —
58815A — Carpet, Console Box
58815-0E040 Carpet, Console Box
2022-10 → —
AALH15,TALA1#,TALH17 —
58833B — Garnish, Console Upper Panel, NO.1
58833-0E250-20 note Garnish, Console Upper Panel, NO.1
2022-10 → —
AALH15,TALA1# —
58833-0E250-21 note Garnish, Console Upper Panel, NO.1
2022-10 → —
AALH15,TALA1# —
58833-0E250-C6 note Garnish, Console Upper Panel, NO.1
2022-10 → —
AALH15,TALA1# —
58833-0E250-C7 note Garnish, Console Upper Panel, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
58833-0E250-C8 note Garnish, Console Upper Panel, NO.1
2022-10 → —
AALH15,TALA1# —
58833-0E250-C9 note Garnish, Console Upper Panel, NO.1
2022-10 → —
TALA15,TALH17 —
58834B — Garnish, Console Upper Panel, NO.2
58834-0E230-B1 note Garnish, Console Upper Panel, NO.2
2022-10 → —
AALH15,TALA1# —
58834-0E230-C2 note Garnish, Console Upper Panel, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
58834-0E230-C3 note Garnish, Console Upper Panel, NO.2
2022-10 → —
AALH15,TALA1# —
58834-0E230-D1 note Garnish, Console Upper Panel, NO.2
2022-10 → —
TALA15,TALH17 —
58834-0E230-E3 note Garnish, Console Upper Panel, NO.2
2022-10 → —
AALH15,TALA1# —
58834-0E230-E4 note Garnish, Console Upper Panel, NO.2
2022-10 → —
AALH15,TALA1# —
58836B — Pad, Console Box Silencer, NO.1
58836-0E030-B1 note Pad, Console Box Silencer, NO.1
2022-10 → —
AALH15,TALA1# —
58836-0E030-C1 note Pad, Console Box Silencer, NO.1
2022-10 → —
TALH17 —
58836-0E030-C1 note Pad, Console Box Silencer, NO.1
2022-10 → —
AALH15,TALA1# —
58836-0E030-D1 note Pad, Console Box Silencer, NO.1
2022-10 → —
TALA15,TALH17 —
58836-0E030-E1 note Pad, Console Box Silencer, NO.1
2022-10 → —
AALH15,TALA1# —
58837A — Pad, Console Box Silencer, NO.2
58837-0E030-B1 note Pad, Console Box Silencer, NO.2
2022-10 → —
AALH15,TALA1# —
58837-0E030-C1 note Pad, Console Box Silencer, NO.2
2022-10 → —
TALH17 —
58837-0E030-C1 note Pad, Console Box Silencer, NO.2
2022-10 → —
AALH15,TALA1# —
58837-0E030-D1 note Pad, Console Box Silencer, NO.2
2022-10 → —
TALA15,TALH17 —
58837-0E030-E1 note Pad, Console Box Silencer, NO.2
2022-10 → —
AALH15,TALA1# —
58860A — Register Assy, Console Box
58860-0E040 Register Assy, Console Box
2022-10 → —
AALH15,TALA1#,TALH17 —
58903A — Panel Sub-assy, Console Rear End
58903-0E220-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALH17 —
58903-0E220-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALA15 —
58903-0E220-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
AALH15,TALA10 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALA15 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2023-09 → —
AALH15,TALA10 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2023-09 → —
TALA15 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALH17 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
AALH15,TALA10 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALA15 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
AALH15,TALA10 —
58903-0E230-C0 note Panel Sub-assy, Console Rear End
2022-10 → —
TALA15 —
58910C — Box Assy, Console, Rear
58910-0E320-C5 note Box Assy, Console, Rear
2022-10 → —
TALH17 —
58910-0E320-C5 note Box Assy, Console, Rear
2022-10 → —
TALA15 —
58910-0E320-C5 note Box Assy, Console, Rear
2022-10 → —
AALH15,TALA10 —
58911A — Panel, Box Side, NO.1
58911-0E160-C0 note Panel, Box Side, NO.1
2022-10 → —
TALH17 —
58911-0E160-C0 note Panel, Box Side, NO.1
2022-10 → —
TALA15 —
58911-0E160-C0 note Panel, Box Side, NO.1
2022-10 → —
AALH15,TALA10 —
58912C — Panel, Box Side, NO.2
58912-0E170-C0 note Panel, Box Side, NO.2
2022-10 → —
TALH17 —
58912-0E170-C0 note Panel, Box Side, NO.2
2022-10 → —
TALA15 —
58912-0E170-C0 note Panel, Box Side, NO.2
2022-10 → —
AALH15,TALA10 —
58923A — Panel, Console Rear End
58923-0E240-C0 note Panel, Console Rear End
2022-10 → —
AALH15,TALA10 —
58923-0E240-C0 note Panel, Console Rear End
2022-10 → —
TALA15 —
58923-0E240-C0 note Panel, Console Rear End
2022-10 → —
TALH17 —
58933 — Garnish, Console Rear End Panel
58933-0E010 note Garnish, Console Rear End Panel
2022-10 → —
AALH15,TALA1# —
58933-0E010 note Garnish, Console Rear End Panel
2022-10 → —
AALH15,TALA1# —
58933-0E010 note Garnish, Console Rear End Panel
2022-10 → —
TALA15 —
58933-0E010 note Garnish, Console Rear End Panel
2022-10 → —
TALH17 —
58933-0E010 note Garnish, Console Rear End Panel
2023-09 → —
AALH15,TALA1# —
58933-0E020 Garnish, Console Rear End Panel
2022-10 → —
AALH15,TALA1#,TALH17 —
58991G — Clip
90467-07042-C4 note Clip
2022-10 → —
TALH17 —
90467-07042-C4 note Clip
2022-10 → —
TALA15 —
90467-07042-C4 note Clip
2022-10 → —
AALH15,TALA10 —
58993A — Bracket, Console Box Mounting, Lower
58993-0E020 Bracket, Console Box Mounting, Lower
2022-10 → —
AALH15,TALA1#,TALH17 —
58994A — Bracket, Console Box Mounting, NO.4
58994-0E020 Bracket, Console Box Mounting, NO.4
2022-10 → —
AALH15,TALA1#,TALH17 —
58995A — Bracket, Console Box Mounting, NO.1
58995-0E140 Bracket, Console Box Mounting, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
58996A — Bracket, Console Box Mounting, NO.2
58996-F6010 Bracket, Console Box Mounting, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
58997 — Bracket, Console Box Mounting, NO.3
58997-F6010 Bracket, Console Box Mounting, NO.3
2022-10 → —
AALH15,TALA1#,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
