Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

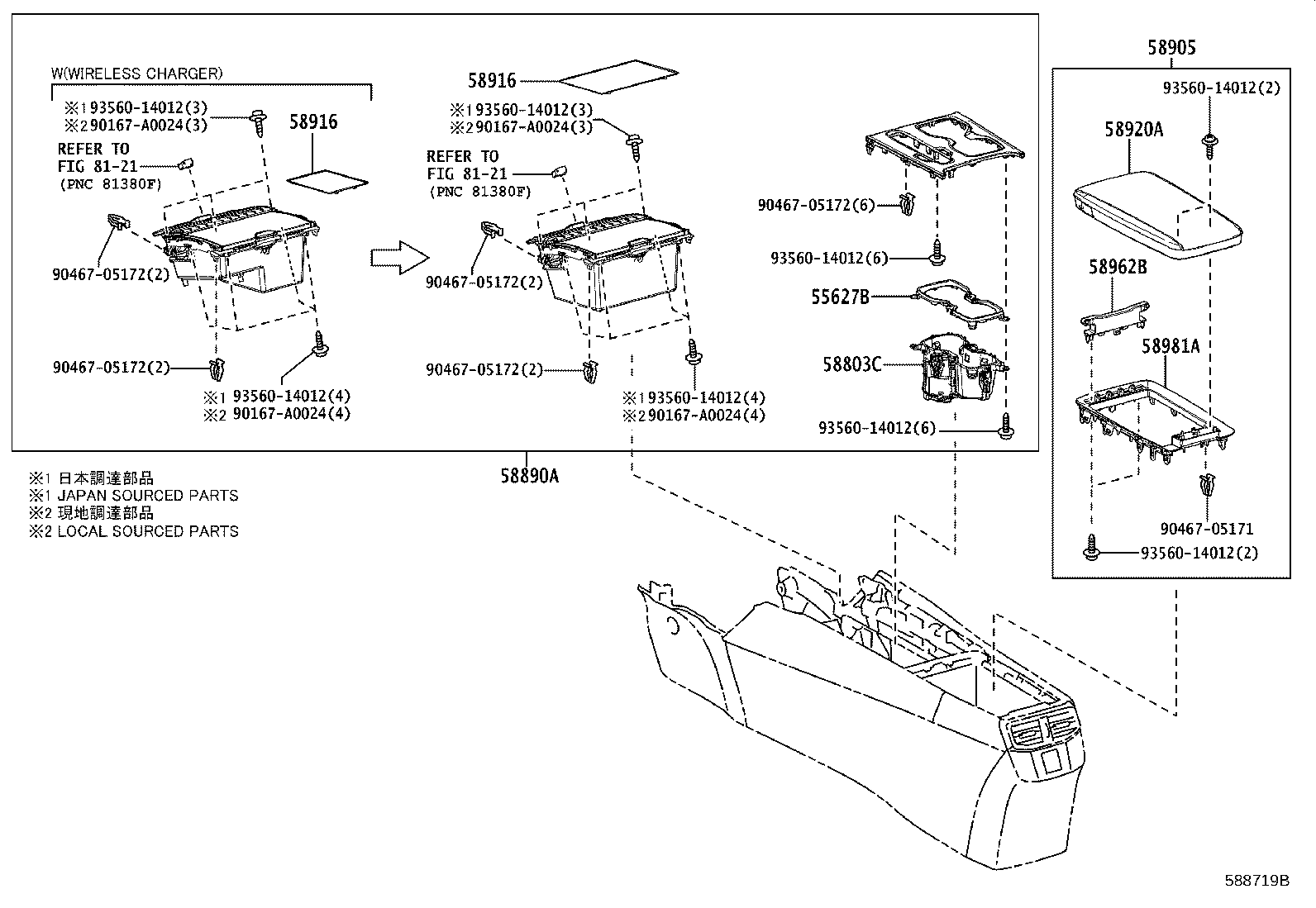

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55627B — Rail, Console Box Cup Holder | ||||
| 55627-F6010 |
Rail, Console Box Cup Holder
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58803C — Box Sub-assy, Console Cup Holder | ||||
| 58803-0E070 |
Box Sub-assy, Console Cup Holder
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58890A — Panel Assy, Equipment Set | ||||
| 58890-0E030-C0 note |
Panel Assy, Equipment Set
2023-09 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-E0 note |
Panel Assy, Equipment Set
2023-09 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E030-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-C0 note |
Panel Assy, Equipment Set
2023-09 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-C0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-E0 note |
Panel Assy, Equipment Set
2022-10 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E040-E0 note |
Panel Assy, Equipment Set
2023-09 → 2024-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-C0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-C0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-C0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-C0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-E0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-E0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-E0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58890-0E041-E0 note |
Panel Assy, Equipment Set
2024-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-0E140-A1 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58905-0E140-B1 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58905-0E140-C1 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
AALH15,TALA1#,TALH17 | — | |
| 58905-0E140-D1 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
TALA15,TALH17 | — | |
| 58905-0E140-E2 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58905-0E140-E3 note |
Door Sub-assy, Console Compartment
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58905-0E141-A1 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
AALH15,TALA1# | — | |
| 58905-0E141-B1 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
AALH15,TALA1# | — | |
| 58905-0E141-C1 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58905-0E141-D1 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
TALA15,TALH17 | — | |
| 58905-0E141-E2 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
AALH15,TALA1# | — | |
| 58905-0E141-E3 note |
Door Sub-assy, Console Compartment
2024-01 → —
|
AALH15,TALA1# | — | |
| 58916 — Mat, Box Bottom | ||||
| 58916-0E110 |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 58916-0E120 note |
Mat, Box Bottom
2023-09 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
TALA15 | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
AALH15,TALA1# | — | |
| 58916-0E120 note |
Mat, Box Bottom
2022-10 → 2025-10
ended
|
TALA15 | — | |
| 58920A — Armrest Assy, Rear Console | ||||
| 58920-0E040-A1 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58920-0E040-B1 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58920-0E040-C1 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
AALH15,TALA1#,TALH17 | — | |
| 58920-0E040-D1 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
TALA15,TALH17 | — | |
| 58920-0E040-E2 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58920-0E040-E3 note |
Armrest Assy, Rear Console
2022-10 → 2023-12
ended
|
AALH15,TALA1# | — | |
| 58920-0E041-A1 note |
Armrest Assy, Rear Console
2024-01 → —
|
AALH15,TALA1# | — | |
| 58920-0E041-B1 note |
Armrest Assy, Rear Console
2024-01 → —
|
AALH15,TALA1# | — | |
| 58920-0E041-C1 note |
Armrest Assy, Rear Console
2024-01 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58920-0E041-D1 note |
Armrest Assy, Rear Console
2024-01 → —
|
TALA15,TALH17 | — | |
| 58920-0E041-E2 note |
Armrest Assy, Rear Console
2024-01 → —
|
AALH15,TALA1# | — | |
| 58920-0E041-E3 note |
Armrest Assy, Rear Console
2024-01 → —
|
AALH15,TALA1# | — | |
| 58962B — Hinge, Console Compartment Door Female | ||||
| 58962-0E070 |
Hinge, Console Compartment Door Female
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58981A — Retainer, Console Compartment Door Hinge | ||||
| 58981-0E070 |
Retainer, Console Compartment Door Hinge
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
