Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

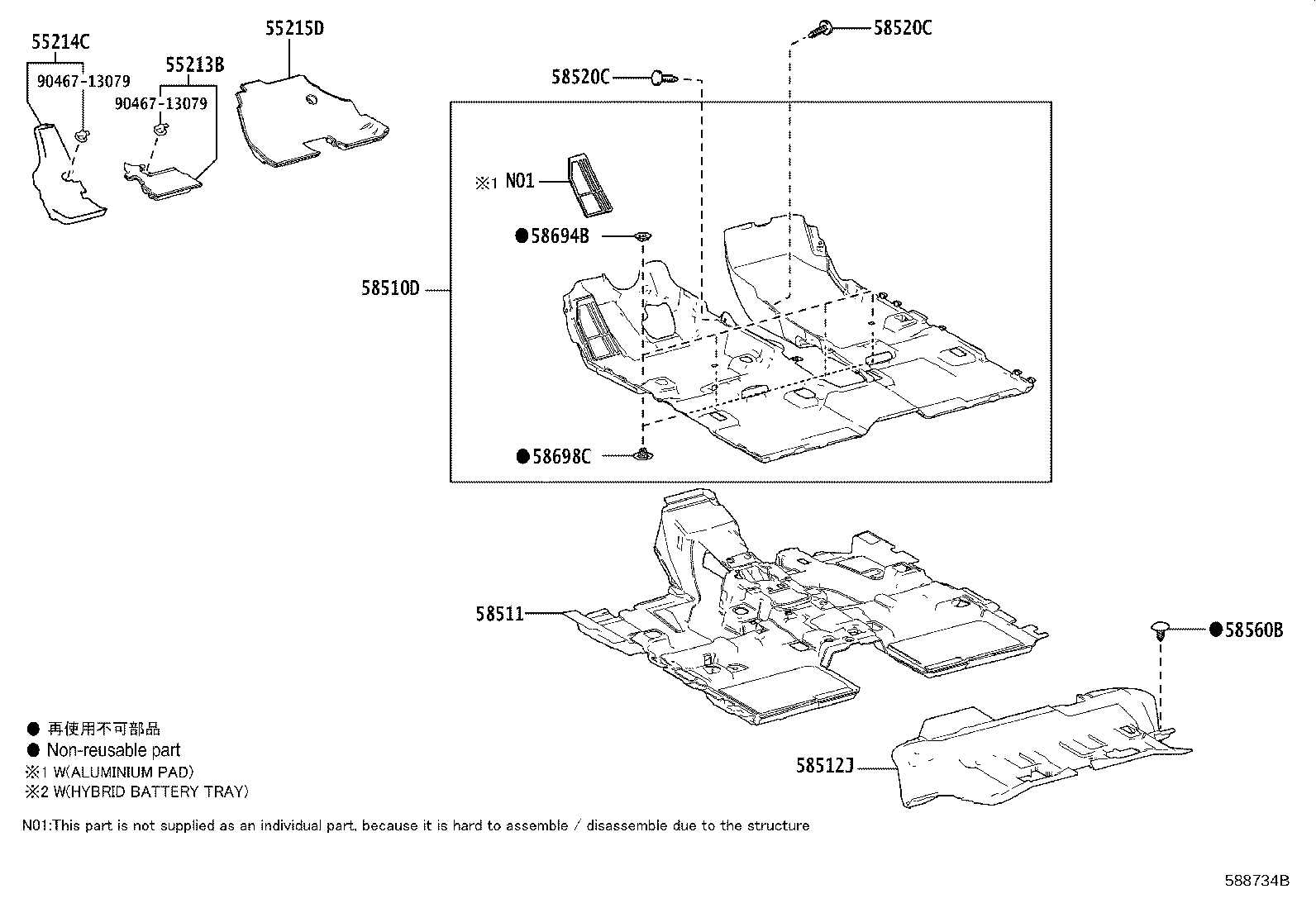

15 parts on this figure

Part number	Description	Fitment	Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-0E110	Pad, Dash Panel Insulator, NO.1 2022-10 → —	AALH15,TALA1#,TALH17	—
55214C — Pad, Dash Panel Insulator, NO.2
55214-0E060	Pad, Dash Panel Insulator, NO.2 2022-10 → —	AALH15,TALA1#,TALH17	—
55215D — Pad, Dash Panel Insulator, NO.3
55215-0E060	Pad, Dash Panel Insulator, NO.3 2022-10 → —	AALH15,TALA1#,TALH17	—
58510D — Carpet Assy, Floor, Front
58510-0E430-C0 note	Carpet Assy, Floor, Front 2022-10 → —	AALH15,TALA1#	—
58510-0E440-C0 note	Carpet Assy, Floor, Front 2022-10 → —	TALH17	—
58510-0E440-C0 note	Carpet Assy, Floor, Front 2022-10 → —	TALA15	—
58511 — Mat, Floor, Front
58511-0E030	Mat, Floor, Front 2022-10 → —	AALH15,TALA1#,TALH17	—
58512J — Mat, Floor, NO.2
58512-0E020	Mat, Floor, NO.2 2022-10 → —	TALA1#	—
58512-0E030	Mat, Floor, NO.2 2022-10 → —	AALH15,TALH17	—
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-05164-C7 note	Clip(FOR FRONT FLOOR CARPET) 2022-10 → —	TALH17	—
90467-05164-C7 note	Clip(FOR FRONT FLOOR CARPET) 2022-10 → —	TALA15	—
90467-05164-C7 note	Clip(FOR FRONT FLOOR CARPET) 2022-10 → —	AALH15,TALA10	—
58560B — Clip(FOR FLOOR CARPET, REAR)
90467-07049-C0 note	Clip(FOR FLOOR CARPET, REAR) 2022-10 → —	AALH15,TALA1#,TALH17	—
58694B — Plate, Mat Set, Upper
58694-33010	Plate, Mat Set, Upper 2022-10 → —	AALH15,TALA1#,TALH17	—
58698C — Plate, Mat Set, Lower
58698-33010	Plate, Mat Set, Lower 2022-10 → —	AALH15,TALA1#,TALH17	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
