Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

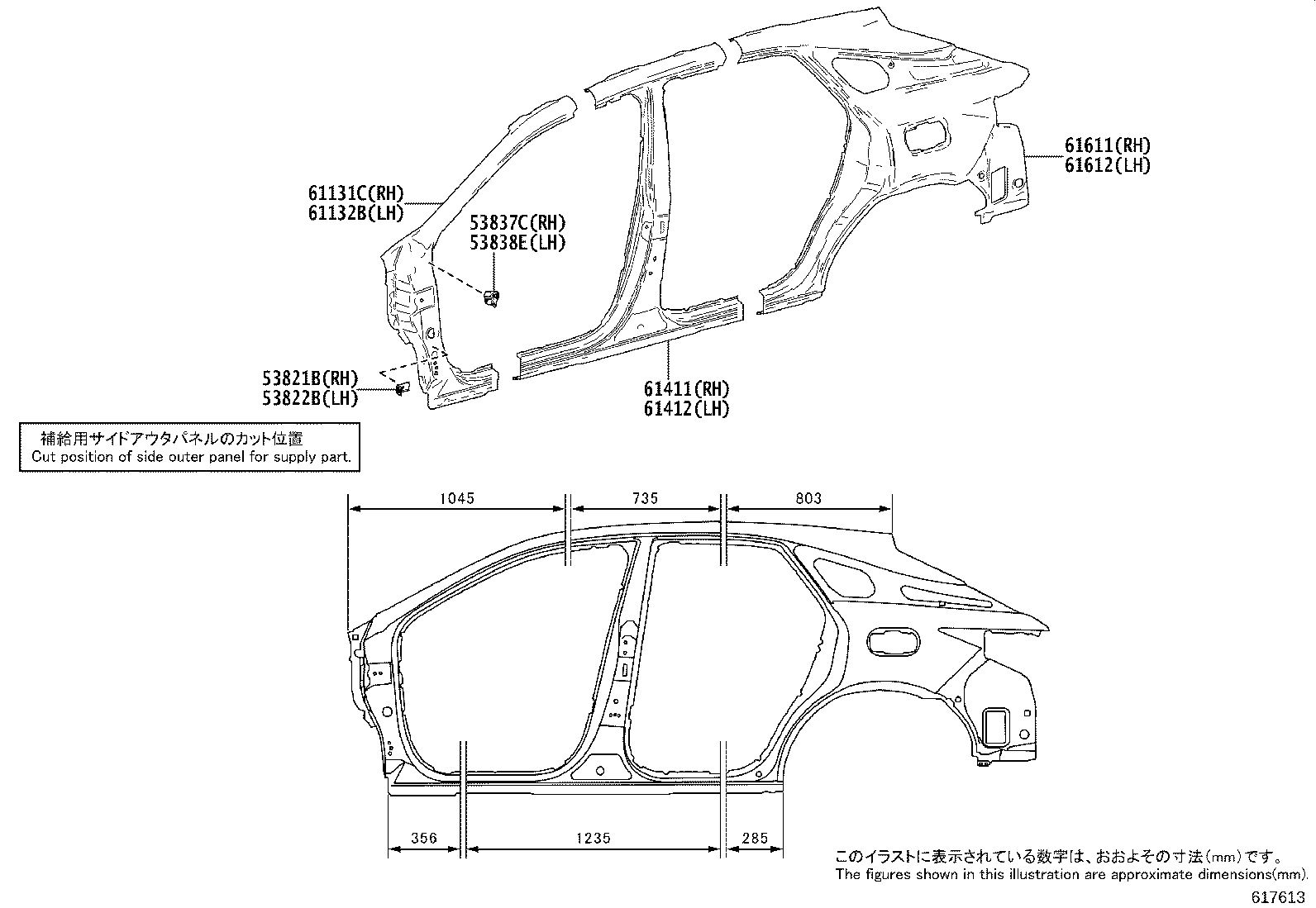

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53821B — Bracket, Front Fender, Rear RH | ||||
| 53821-0E160 |
Bracket, Front Fender, Rear RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53822B — Bracket, Front Fender, Rear LH | ||||
| 53821-0E160 |
Bracket, Front Fender, Rear LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53837C — Bracket, Front Side Panel, NO.2 RH | ||||
| 53837-0E130 |
Bracket, Front Side Panel, NO.2 RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53838E — Bracket, Front Side Panel, NO.2 LH | ||||
| 53838-0E130 |
Bracket, Front Side Panel, NO.2 LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61131C — Pillar, Front Body, Outer RH | ||||
| 61101-0E120 |
Pillar, Front Body, Outer RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61132B — Pillar, Front Body, Outer LH | ||||
| 61102-0E120 |
Pillar, Front Body, Outer LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61411 — Panel, Rocker, Outer RH | ||||
| 61311-0E150 |
Panel, Rocker, Outer RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61412 — Panel, Rocker, Outer LH | ||||
| 61312-0E150 |
Panel, Rocker, Outer LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61611 — Panel, Quarter, RH | ||||
| 61601-0E150 |
Panel, Quarter, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 61612 — Panel, Quarter, LH | ||||
| 61602-0E150 |
Panel, Quarter, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
