Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

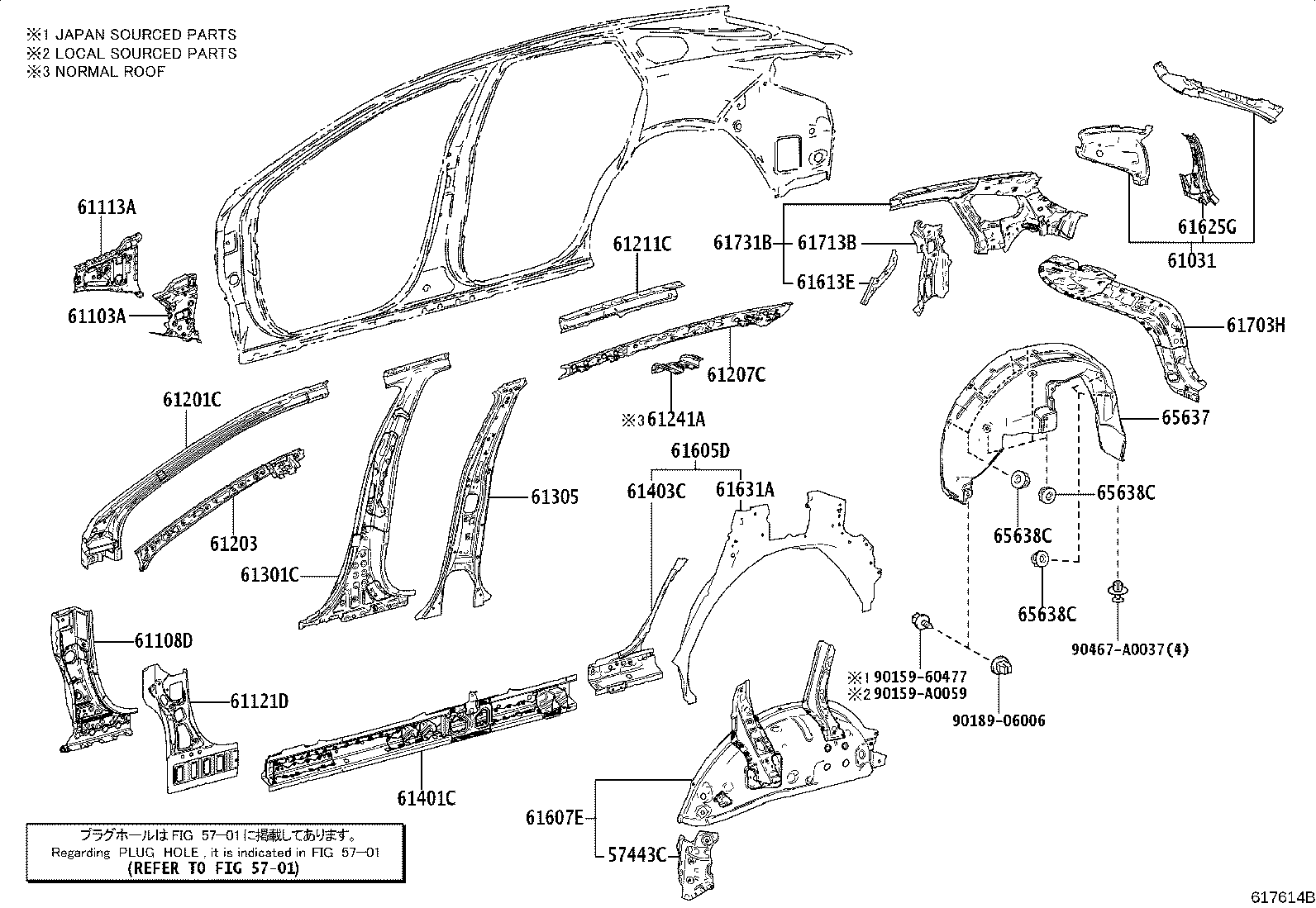

27 parts on this figure

Part number	Description	Fitment	Price
57443C — Reinforcement, Center Floor Side Member
57443-0E070	Reinforcement, Center Floor Side Member 2022-10 → —	AALH15,TALA1#,TALH17	—
61031 — Extension Sub-assy, Quarter Panel, Rear Lower RH
61031-0E030	Extension Sub-assy, Quarter Panel, Rear Lower RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61103A — Reinforcement Sub-assy, Cowl Side, RH
61103-0E130	Reinforcement Sub-assy, Cowl Side, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61108D — Reinforcement Sub-assy, Front Pillar, Lower RH
61108-0E910	Reinforcement Sub-assy, Front Pillar, Lower RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61113A — Panel, Side, Outer NO.2 RH
61113-0E050	Panel, Side, Outer NO.2 RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61121D — Panel, Cowl Side, RH
61121-0E150	Panel, Cowl Side, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61201C — Rail Sub-assy, Roof Side, Outer RH
61201-0E906	Rail Sub-assy, Roof Side, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-0E140	Rail Sub-assy, Roof Side, Inner RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61207C — Rail Sub-assy, Roof Side, Inner NO.2 RH
61207-0E060	Rail Sub-assy, Roof Side, Inner NO.2 RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61211C — Rail, Roof Side, RH
61211-0E140	Rail, Roof Side, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61241A — Gusset, Roof Side Rail, Rear RH
61241-0E040	Gusset, Roof Side Rail, Rear RH 2022-10 → —	AALH15,TALA1#	—
61301C — Pillar Sub-assy, Center Body, Outer RH
61301-0E110	Pillar Sub-assy, Center Body, Outer RH 2024-09 → —	AALH15,TALA1#,TALH17	—
61301-0E905	Pillar Sub-assy, Center Body, Outer RH 2022-10 → 2024-09 ended	AALH15,TALA1#,TALH17	—
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-0E030	Reinforce Sub-assy, Center Body Pillar, Lower RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61401C — Panel Sub-assy, Rocker, Outer RH
61401-0E910	Panel Sub-assy, Rocker, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-0E070	Reinforce Sub-assy, Rocker, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61605D — Panel Sub-assy, Quarter Wheel House, Outer RH
61605-0E080	Panel Sub-assy, Quarter Wheel House, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61607E — Panel, Quarter Wheel House, Inner RH
61607-0E110	Panel, Quarter Wheel House, Inner RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61613E — Panel, Quarter, Inner RH
61613-0E130	Panel, Quarter, Inner RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61625G — Extension, Quarter Panel, Rear RH
61625-0E100	Extension, Quarter Panel, Rear RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61631A — Panel, Quarter Wheel House, Outer RH
61631-0E130	Panel, Quarter Wheel House, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61703H — Reinforcement Sub-assy, Roof Side, Inner RH
61703-0E901	Reinforcement Sub-assy, Roof Side, Inner RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61713B — Reinforce, Roof Side, Outer RH
61713-0E080	Reinforce, Roof Side, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
61731B — Panel, Roof Side, Inner RH
61701-0E902	Panel, Roof Side, Inner RH 2022-10 → —	AALH15,TALA1#,TALH17	—
65637 — Liner, Rear Wheel House, RH
65637-0E140 note	Liner, Rear Wheel House, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
65637-48090 note	Liner, Rear Wheel House, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
65638C — Clip, Rear Wheel House Liner
90467-06121	Clip, Rear Wheel House Liner 2022-10 → —	AALH15,TALA1#,TALH17	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
