Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

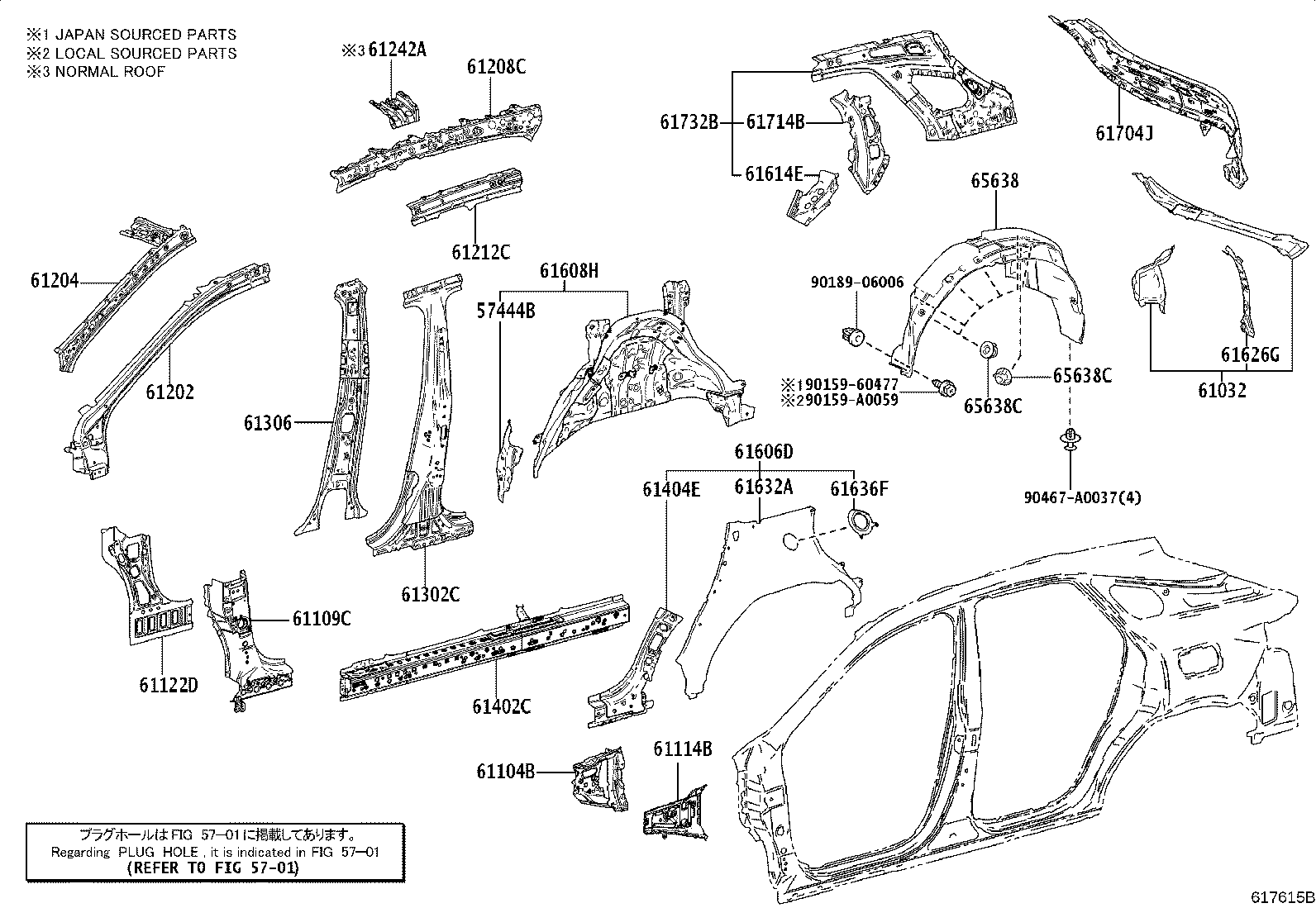

Exploded illustration 617615B 61122D — PANEL, COWL SIDE, LH (1 parts) 61114B — PANEL, SIDE, OUTER NO.2 LH (1 parts) 61032 — EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH (1 parts) 61626G — EXTENSION, QUARTER PANEL, REAR LH (1 parts) 61212C — RAIL, ROOF SIDE, LH (1 parts) 61104B — REINFORCEMENT SUB-ASSY, COWL SIDE, LH (1 parts) 61109C — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH (1 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (1 parts) 61302C — PILLAR SUB-ASSY, CENTER BODY, OUTER LH (2 parts) 61402C — PANEL SUB-ASSY, ROCKER, OUTER LH (1 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (1 parts) 61208C — RAIL SUB-ASSY, ROOF SIDE, INNER NO.2 LH (1 parts) 61242A — GUSSET, ROOF SIDE RAIL, REAR LH (1 parts) 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (1 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (1 parts) 61636F — REINFORCEMENT, QUARTER PANEL, UPR LH (1 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 61606D — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 57444B — REINFORCEMENT, NO.4 BODY MOUNTING (1 parts) 61608H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH (1 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (2 parts) 9015960477 — not listed in this catalogue 90159A0059 — not listed in this catalogue 9018906006 — not listed in this catalogue 90467A0037 — not listed in this catalogue 65638C — CLIP, REAR WHEEL HOUSE LINER (1 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (1 parts) 61704J — REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH (1 parts) 61732B — PANEL, ROOF SIDE, INNER LH (1 parts) 61714B — REINFORCE, ROOF SIDE, OUTER LH (1 parts) 61614E — PANEL, QUARTER, INNER LH (1 parts) 5701 — not listed in this catalogue
617615B · 27 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
57444B — Reinforcement, NO.4 Body Mounting
57444-0E070 Reinforcement, NO.4 Body Mounting
2022-10 → —
AALH15,TALA1#,TALH17 —
61032 — Extension Sub-assy, Quarter Panel, Rear Lower LH
61032-0E060 Extension Sub-assy, Quarter Panel, Rear Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61104B — Reinforcement Sub-assy, Cowl Side, LH
61104-0E130 Reinforcement Sub-assy, Cowl Side, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61109C — Reinforcement Sub-assy, Front Pillar, Lower LH
61109-0E911 Reinforcement Sub-assy, Front Pillar, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61114B — Panel, Side, Outer NO.2 LH
61114-0E060 Panel, Side, Outer NO.2 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61122D — Panel, Cowl Side, LH
61122-0E120 Panel, Cowl Side, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61202 — Rail Sub-assy, Roof Side, LH
61202-0E906 Rail Sub-assy, Roof Side, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-0E140 Rail Sub-assy, Roof Side, Inner LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61208C — Rail Sub-assy, Roof Side, Inner NO.2 LH
61208-0E060 Rail Sub-assy, Roof Side, Inner NO.2 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61212C — Rail, Roof Side, LH
61212-0E130 Rail, Roof Side, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61242A — Gusset, Roof Side Rail, Rear LH
61242-0E040 Gusset, Roof Side Rail, Rear LH
2022-10 → —
AALH15,TALA1# —
61302C — Pillar Sub-assy, Center Body, Outer LH
61302-0E110 Pillar Sub-assy, Center Body, Outer LH
2024-09 → —
AALH15,TALA1#,TALH17 —
61302-0E905 Pillar Sub-assy, Center Body, Outer LH
2022-10 → 2024-09 ended
AALH15,TALA1#,TALH17 —
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-0E030 Reinforce Sub-assy, Center Body Pillar, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61402C — Panel Sub-assy, Rocker, Outer LH
61402-0E911 Panel Sub-assy, Rocker, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-0E080 Reinforce Sub-assy, Rocker, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61606D — Panel Sub-assy, Quarter Wheel House, Outer LH
61606-0E090 Panel Sub-assy, Quarter Wheel House, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61608H — Panel Sub-assy, Quarter Wheel House, Inner LH
61608-0E110 Panel Sub-assy, Quarter Wheel House, Inner LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61614E — Panel, Quarter, Inner LH
61614-0E140 Panel, Quarter, Inner LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61626G — Extension, Quarter Panel, Rear LH
61626-0E110 Extension, Quarter Panel, Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61632A — Panel, Quarter Wheel House, Outer LH
61632-0E140 Panel, Quarter Wheel House, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61636F — Reinforcement, Quarter Panel, Upr LH
61635-06020 Reinforcement, Quarter Panel, Upr LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61704J — Reinforcement Sub-assy, Roof Side, Inner LH
61704-0E901 Reinforcement Sub-assy, Roof Side, Inner LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61714B — Reinforce, Roof Side, Outer LH
61714-0E080 Reinforce, Roof Side, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
61732B — Panel, Roof Side, Inner LH
61702-0E902 Panel, Roof Side, Inner LH
2022-10 → —
AALH15,TALA1#,TALH17 —
65638 — Liner, Rear Wheel House, LH
65638-0E140 note Liner, Rear Wheel House, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
65638-48090 note Liner, Rear Wheel House, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
65638C — Clip, Rear Wheel House Liner
90467-06121 Clip, Rear Wheel House Liner
2022-10 → —
AALH15,TALA1#,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
