Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

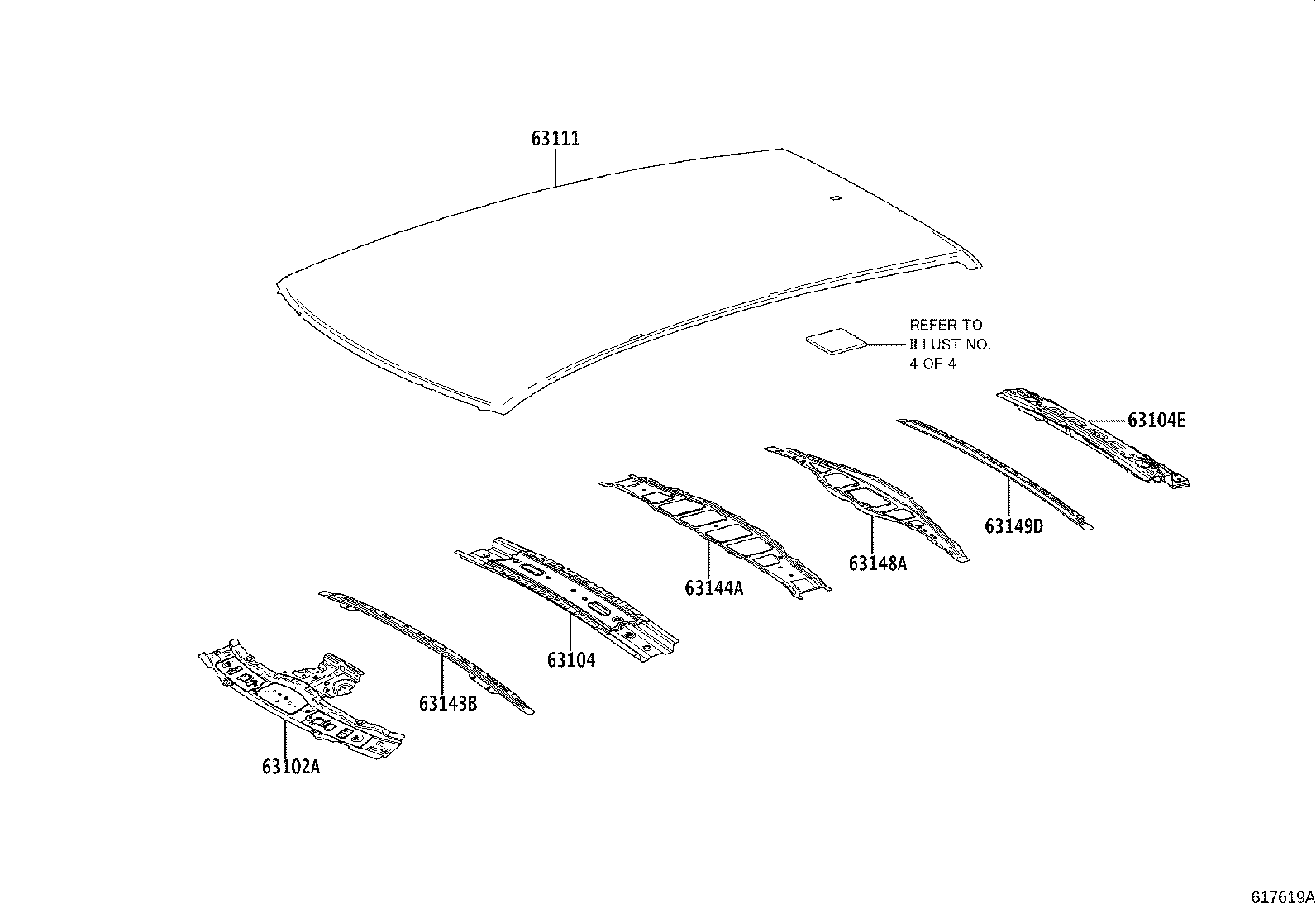

| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-0E300 note |
Panel Sub-assy, Windshield Header
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63102-0E918 |
Panel Sub-assy, Windshield Header
2022-10 → —
|
AALH15,TALA1# | — | |
| 63102-0E919 |
Panel Sub-assy, Windshield Header
2022-10 → —
|
TALH17 | — | |
| 63102-0E919 note |
Panel Sub-assy, Windshield Header
2022-10 → —
|
AALH15,TALA1# | — | |
| 63104 — Reinforcement Sub-assy, Roof Panel, Center | ||||
| 63103-0E160 |
Reinforcement Sub-assy, Roof Panel, Center
2022-10 → —
|
AALH15,TALA1# | — | |
| 63104E — Reinforcement Sub-assy, Roof Panel, Rear | ||||
| 63104-0E900 |
Reinforcement Sub-assy, Roof Panel, Rear
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63111 — Panel, Roof | ||||
| 63111-0E480 |
Panel, Roof
2022-10 → —
|
TALH17 | — | |
| 63111-0E480 note |
Panel, Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63111-0E500 |
Panel, Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-0E160 |
Reinforcement, Roof Panel, NO.3
2022-10 → —
|
AALH15,TALA1# | — | |
| 63144A — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-0E140 |
Reinforcement, Roof Panel, NO.4
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63148A — Reinforcement, Roof Panel, NO.7 | ||||
| 63148-0E100 |
Reinforcement, Roof Panel, NO.7
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63149D — Reinforcement, Roof Panel, NO.8 | ||||
| 63149-0E070 |
Reinforcement, Roof Panel, NO.8
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
