Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

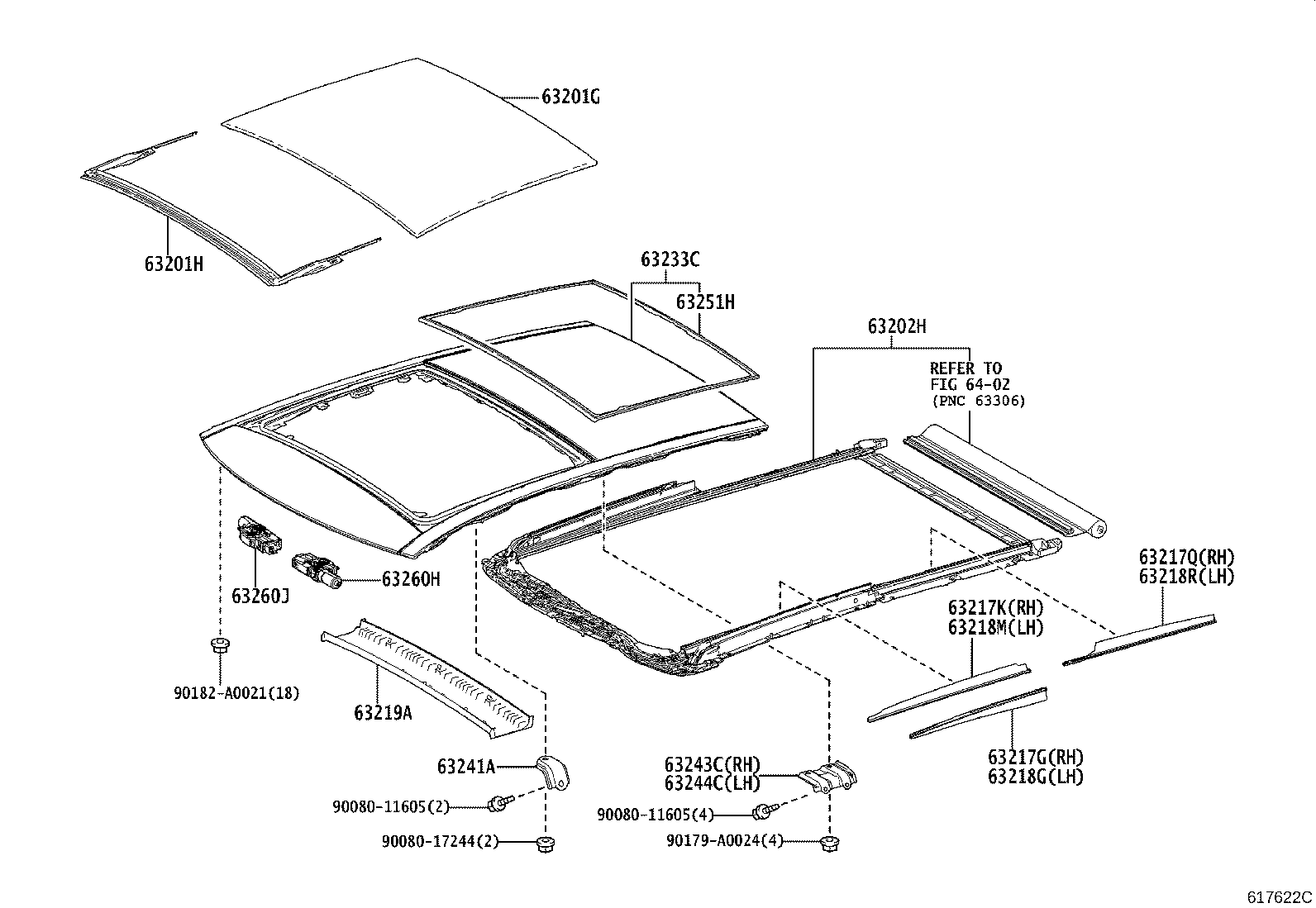

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-0E240 note |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63201-0E240 |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
TALH17 | — | |
| 63201-0E250 note |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63201H — Panel Sub-assy, Slide Roof | ||||
| 63201-0E270 note |
Panel Sub-assy, Slide Roof
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-0E090 |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALH17 | — | |
| 63202-0E090 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63202-0E120-A0 note |
Rail Sub-assy, Slide Roof
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 63202-0E120-A1 note |
Rail Sub-assy, Slide Roof
2024-11 → —
|
AALH15,TALA1# | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALH17 | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALA15 | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
AALH15,TALA10 | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-0E160 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63217-0E200 |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
TALH17 | — | |
| 63217-0E200 note |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63217-48130 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-0E170 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63217-48140 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63217Q — Garnish, Sliding Roof Side, RH | ||||
| 63217-0E180 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63217-48150 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63217-0E200 |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
TALH17 | — | |
| 63217-0E200 note |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63218-0E150 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63218-48130 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63218-0E160 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63218-48140 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63218R — Garnish, Sliding Roof Side, LH | ||||
| 63218-0E170 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63218-48150 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-0E020 note |
Garnish, Sliding Roof, Rear
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-0E220 note |
Panel, Sliding Roof Housing
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-0E190 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-0E130 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-0E100 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-0E120 note |
Weatherstrip, Sliding Roof
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63260H — Gear Assy, Sliding Roof Drive | ||||
| 63260-0E220 note |
Gear Assy, Sliding Roof Drive
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-0E230 note |
Gear Assy, Sliding Roof Drive
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
