Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

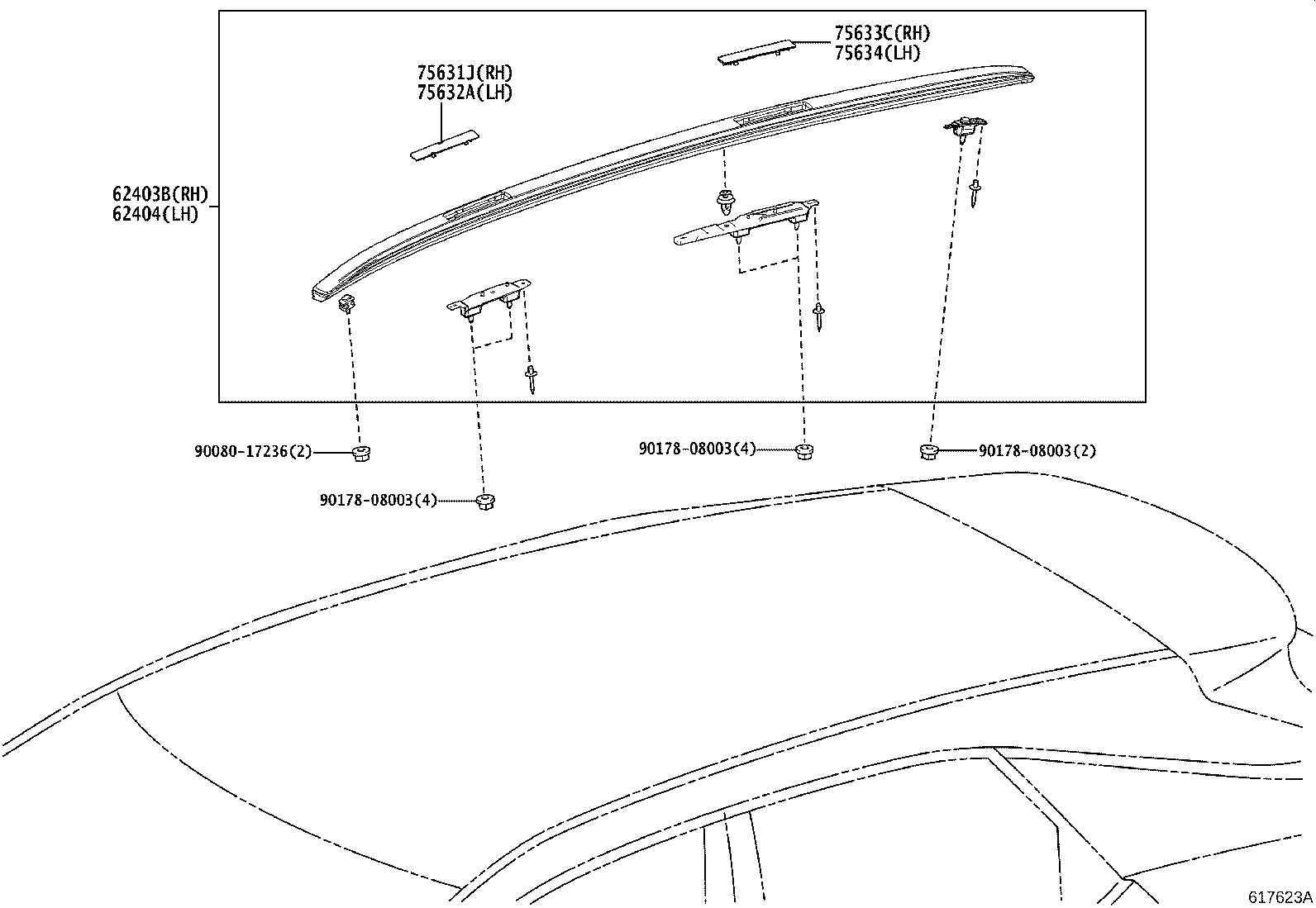

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62403B — Garnish Sub-assy, Roof Side Rail, RH | ||||
| 62403-0E010-B1 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62403-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
TALH17 | — | |
| 62403-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
TALA15 | — | |
| 62403-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62403-0E020-B1 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62403-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
TALH17 | — | |
| 62403-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
TALA15 | — | |
| 62403-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62404 — Garnish Sub-assy, Roof Side Rail, LH | ||||
| 62404-0E010-B1 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62404-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
TALA15 | — | |
| 62404-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62404-0E010-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
TALH17 | — | |
| 62404-0E020-B1 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62404-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
TALH17 | — | |
| 62404-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
TALA15 | — | |
| 62404-0E020-C0 note |
Garnish Sub-assy, Roof Side Rail, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75631J — Lid, Roof Side Garnish, NO.1 RH | ||||
| 75631-0E030-B1 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75631-0E030-B1 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75631-0E030-C0 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75631-0E030-C0 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
TALA15 | — | |
| 75631-0E030-C0 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
TALA15 | — | |
| 75631-0E030-C0 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
TALH17 | — | |
| 75631-0E030-C0 note |
Lid, Roof Side Garnish, NO.1 RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75632A — Lid, Roof Side Garnish, NO.1 LH | ||||
| 75632-0E100-B1 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75632-0E100-B1 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75632-0E100-C0 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
TALH17 | — | |
| 75632-0E100-C0 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
TALA15 | — | |
| 75632-0E100-C0 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75632-0E100-C0 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
TALA15 | — | |
| 75632-0E100-C0 note |
Lid, Roof Side Garnish, NO.1 LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75633C — Lid, Roof Side Garnish, NO.2 RH | ||||
| 75633-0E100-B1 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75633-0E100-B1 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75633-0E100-C0 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
TALH17 | — | |
| 75633-0E100-C0 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75633-0E100-C0 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
TALA15 | — | |
| 75633-0E100-C0 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75633-0E100-C0 note |
Lid, Roof Side Garnish, NO.2 RH
2022-10 → —
|
TALA15 | — | |
| 75634 — Lid, Roof Side Garnish, NO.2 LH | ||||
| 75634-0E030-B1 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75634-0E030-B1 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 75634-0E030-C0 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
TALH17 | — | |
| 75634-0E030-C0 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
TALA15 | — | |
| 75634-0E030-C0 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 75634-0E030-C0 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
TALA15 | — | |
| 75634-0E030-C0 note |
Lid, Roof Side Garnish, NO.2 LH
2022-10 → —
|
AALH15,TALA10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
