Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

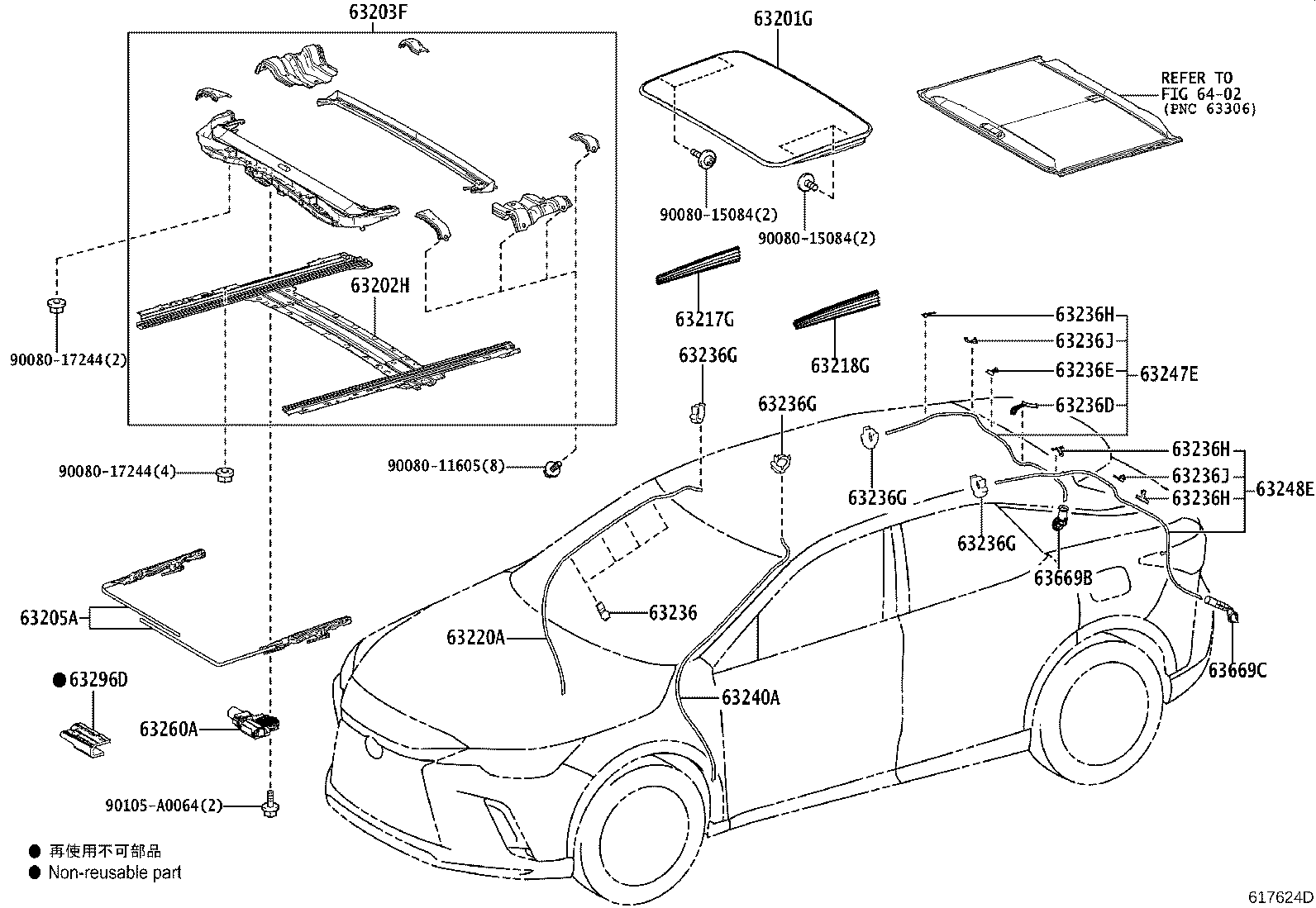

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-0E240 note |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63201-0E240 |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
TALH17 | — | |
| 63201-0E250 note |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-0E090 |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALH17 | — | |
| 63202-0E090 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63202-0E120-A0 note |
Rail Sub-assy, Slide Roof
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 63202-0E120-A1 note |
Rail Sub-assy, Slide Roof
2024-11 → —
|
AALH15,TALA1# | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALH17 | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
TALA15 | — | |
| 63202-0E120-C0 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
AALH15,TALA10 | — | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-0E220 |
Housing Sub-assy, Sliding Roof
2022-10 → —
|
TALH17 | — | |
| 63203-0E220 note |
Housing Sub-assy, Sliding Roof
2022-10 → —
|
AALH15,TALA1# | — | |
| 63205A — Cable Sub-assy, Sliding Roof Drive | ||||
| 63205-0E050 |
Cable Sub-assy, Sliding Roof Drive
2022-10 → —
|
TALH17 | — | |
| 63205-0E050 note |
Cable Sub-assy, Sliding Roof Drive
2022-10 → —
|
AALH15,TALA1# | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-0E160 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63217-0E200 |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
TALH17 | — | |
| 63217-0E200 note |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63217-48130 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63217-0E200 |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
TALH17 | — | |
| 63217-0E200 note |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63218-0E150 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 63218-48130 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63220A — Hose Assy, Sliding Roof Drain, RH | ||||
| 63220-0E010 |
Hose Assy, Sliding Roof Drain, RH
2022-10 → —
|
TALH17 | — | |
| 63220-0E010 note |
Hose Assy, Sliding Roof Drain, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236 — Clamp, Sliding Roof OR Removable Roof Drain Hose | ||||
| 63236-48010 |
Clamp, Sliding Roof OR Removable Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 63236-48010 note |
Clamp, Sliding Roof OR Removable Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236D — Clamp, Sliding Roof Drain Hose | ||||
| 63236-30040 |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 63236-30040 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236E — Clamp, Sliding Roof Drain Hose | ||||
| 85371-28130 |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 85371-28130 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236G — Clamp, Sliding Roof Drain Hose | ||||
| 63236-33030 |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 63236-33030 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236H — Clamp, Sliding Roof Drain Hose | ||||
| 86147-50050 |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 86147-50050 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63236J — Clamp, Sliding Roof Drain Hose | ||||
| 86147-30020 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 86147-30020 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 86147-30040 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
TALH17 | — | |
| 86147-30040 note |
Clamp, Sliding Roof Drain Hose
2022-10 → —
|
AALH15,TALA1# | — | |
| 63240A — Hose Assy, Sliding Roof Drain, LH | ||||
| 63240-0E010 note |
Hose Assy, Sliding Roof Drain, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63240-0E010 |
Hose Assy, Sliding Roof Drain, LH
2022-10 → —
|
TALH17 | — | |
| 63247E — Hose, Sliding Roof Drain, Rear RH | ||||
| 63247-0E150 |
Hose, Sliding Roof Drain, Rear RH
2022-10 → —
|
TALH17 | — | |
| 63247-0E150 note |
Hose, Sliding Roof Drain, Rear RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63248E — Hose, Sliding Roof Drain, Rear LH | ||||
| 63248-0E100 |
Hose, Sliding Roof Drain, Rear LH
2022-10 → —
|
TALH17 | — | |
| 63248-0E100 note |
Hose, Sliding Roof Drain, Rear LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-0E240 |
Gear Sub-assy, Sliding Roof Drive
2022-10 → —
|
TALH17 | — | |
| 63260-0E240 note |
Gear Sub-assy, Sliding Roof Drive
2022-10 → —
|
AALH15,TALA1# | — | |
| 63296D — Pad, Sliding Roof Housing, NO.2 | ||||
| 63296-0E010 |
Pad, Sliding Roof Housing, NO.2
2022-10 → —
|
TALH17 | — | |
| 63296-0E010 note |
Pad, Sliding Roof Housing, NO.2
2022-10 → —
|
AALH15,TALA1# | — | |
| 63669B — Grommet, Sliding Roof Drain | ||||
| 63669-30040 |
Grommet, Sliding Roof Drain
2022-10 → —
|
TALH17 | — | |
| 63669-30040 note |
Grommet, Sliding Roof Drain
2022-10 → —
|
AALH15,TALA1# | — | |
| 63669C — Grommet, Sliding Roof Drain | ||||
| 63669-60040 |
Grommet, Sliding Roof Drain
2022-10 → —
|
TALH17 | — | |
| 63669-60040 note |
Grommet, Sliding Roof Drain
2022-10 → —
|
AALH15,TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
