Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

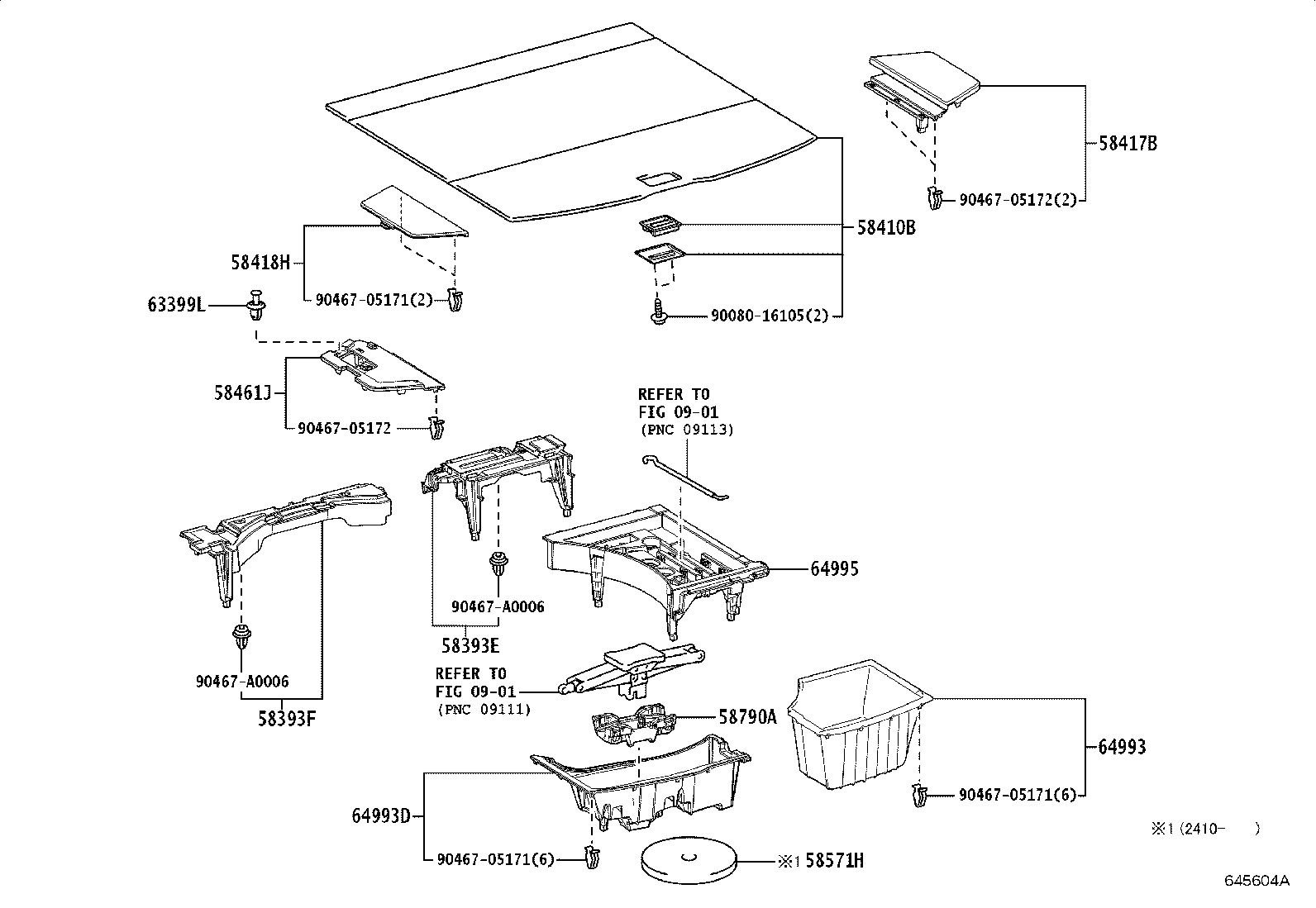

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58393E — Support, Deck Board Set | ||||
| 58393-0E020 |
Support, Deck Board Set
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58393F — Support, Deck Board Set, LH | ||||
| 58393-0E030 |
Support, Deck Board Set, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58410B — Board Assy, Deck | ||||
| 58410-0E150-C1 note |
Board Assy, Deck
2022-10 → —
|
TALH17 | — | |
| 58410-0E150-C1 note |
Board Assy, Deck
2022-10 → —
|
TALA15 | — | |
| 58410-0E150-C1 note |
Board Assy, Deck
2022-10 → —
|
AALH15,TALA10 | — | |
| 58417B — Board, Rear Floor, Rear RH | ||||
| 58417-0E110-C0 note |
Board, Rear Floor, Rear RH
2022-10 → —
|
TALA15 | — | |
| 58417-0E110-C0 note |
Board, Rear Floor, Rear RH
2022-10 → —
|
TALA10 | — | |
| 58417-0E120-C0 note |
Board, Rear Floor, Rear RH
2022-10 → —
|
TALH17 | — | |
| 58417-0E120-C0 note |
Board, Rear Floor, Rear RH
2022-10 → —
|
AALH15 | — | |
| 58418H — Board, Rear Floor, Rear LH | ||||
| 58418-0E100-C0 note |
Board, Rear Floor, Rear LH
2022-10 → —
|
TALA15 | — | |
| 58418-0E100-C0 note |
Board, Rear Floor, Rear LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 58418-0E100-C0 note |
Board, Rear Floor, Rear LH
2022-10 → —
|
TALH17 | — | |
| 58461J — Cover, Junction Block Service, LH | ||||
| 58461-0E020 |
Cover, Junction Block Service, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58571H — Carpet, Rear Floor | ||||
| 58571-0E010 |
Carpet, Rear Floor
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 58790A — Carrier Assy, Jack | ||||
| 58790-0E070 |
Carrier Assy, Jack
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 63399L — Clip, Junction Block Service Cover, LH | ||||
| 63399-78010 |
Clip, Junction Block Service Cover, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 64993 — Box, Deck Floor, Rear | ||||
| 64993-0E230 |
Box, Deck Floor, Rear
2022-10 → —
|
TALA1# | — | |
| 64993D — Box, Deck Floor, Rear LH | ||||
| 64993-0E250 |
Box, Deck Floor, Rear LH
2022-10 → 2024-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 64993-0E251 |
Box, Deck Floor, Rear LH
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 64995 — Box, Deck Floor, RH | ||||
| 64995-0E020 |
Box, Deck Floor, RH
2022-10 → 2024-10
ended
|
AALH15,TALA1#,TALH17 | — | |
| 64995-0E021 |
Box, Deck Floor, RH
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
