Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 645606A 58331H — BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1 (1 parts) 58332K — BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 (1 parts) 58387B — PLATE, REAR FLOOR FINISH (17 parts) 61653C — BRACKET, DECK SIDE TRIM, RH (1 parts) 61654F — BRACKET, DECK SIDE TRIM, LH (1 parts) 62521C — COVER, QUARTER TRIM RH (3 parts) 62522B — COVER, QUARTER TRIM LH (3 parts) 64715C — COVER, DECK SIDE TRIM, LH (7 parts) 64725F — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (3 parts) 64725F — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (3 parts) 64725K — HOOK, DECK SIDE TRIM, NO.1 (3 parts) 64726H — HOOK, DECK SIDE TRIM, NO.2 (3 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (5 parts) 64740C — PANEL ASSY, DECK TRIM SIDE, LH (7 parts) 64910J — COVER ASSY, TONNEAU (3 parts) 66310H — HOOK ASSY, ROPE (1 parts) 66310H — HOOK ASSY, ROPE (1 parts) 66310H — HOOK ASSY, ROPE (1 parts) 66310H — HOOK ASSY, ROPE (1 parts) 85536A — BEZEL, POWER OUTLET SOCKET (2 parts) 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 90119A0372 — not listed in this catalogue 90119A0372 — not listed in this catalogue 9011906A44 — not listed in this catalogue 90467A0006 — not listed in this catalogue 9356015012 — not listed in this catalogue 90467A0006 — not listed in this catalogue 90467A0006 — not listed in this catalogue

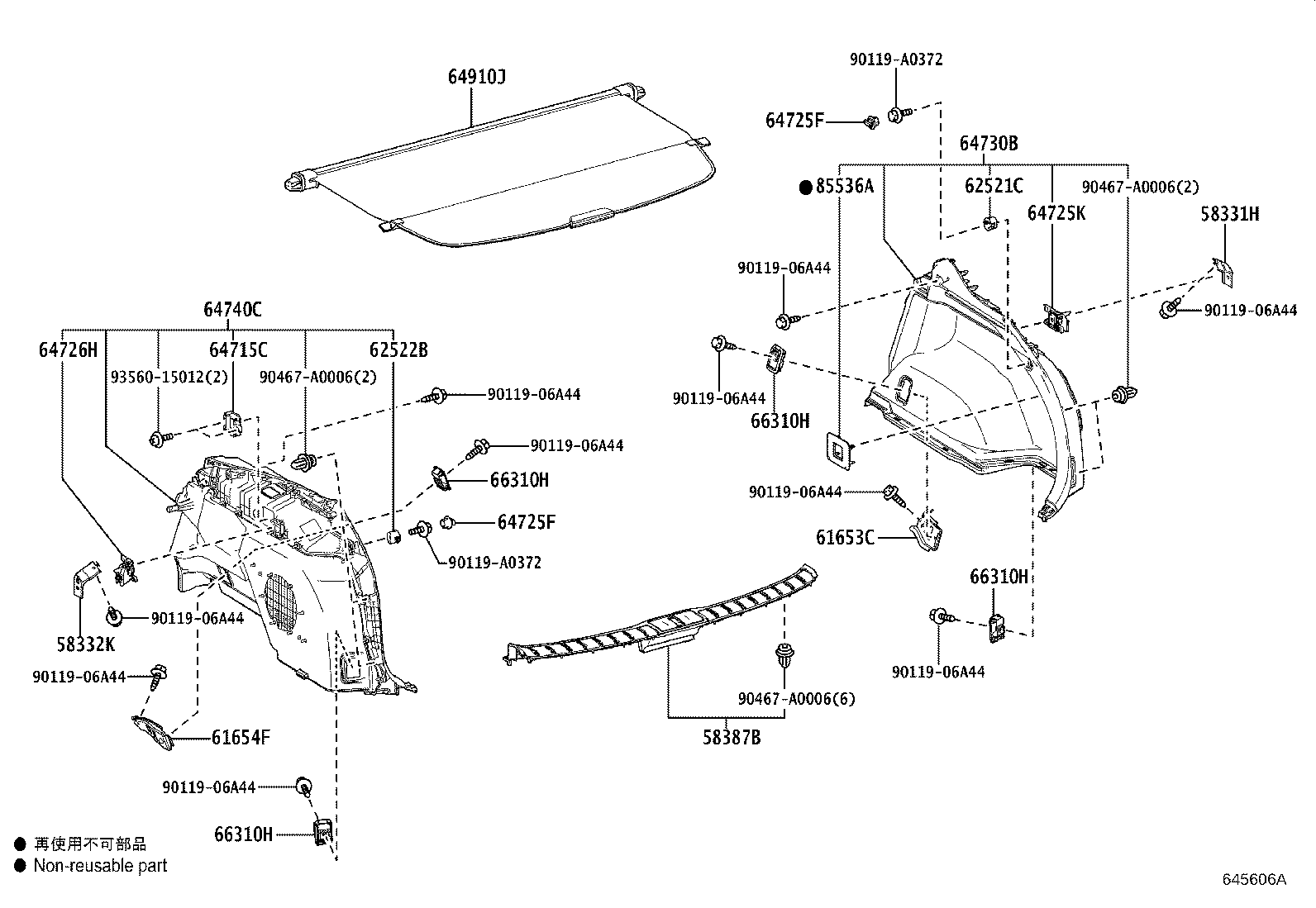

645606A · 20 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
58331H — Bracket, Luggage Compartment Trim, NO.1
58331-0E050 Bracket, Luggage Compartment Trim, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
58332K — Bracket, Luggage Compartment Trim, NO.2
58332-0E060 Bracket, Luggage Compartment Trim, NO.2
2022-10 → —
AALH15,TALA1#,TALH17 —
58387B — Plate, Rear Floor Finish
58387-0E140-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
AALH15,TALA1# —
58387-0E140-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
AALH15,TALA1# —
58387-0E140-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
TALA15 —
58387-0E141-C0 note Plate, Rear Floor Finish
2024-11 → —
AALH15,TALA1# —
58387-0E141-C0 note Plate, Rear Floor Finish
2024-11 → —
AALH15,TALA1# —
58387-0E141-C0 note Plate, Rear Floor Finish
2024-11 → —
TALA15 —
58387-0E150-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
TALH17 —
58387-0E150-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
TALA15 —
58387-0E150-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
AALH15,TALA10 —
58387-0E150-C0 note Plate, Rear Floor Finish
2022-10 → 2024-10 ended
TALH17 —
58387-0E151-C0 note Plate, Rear Floor Finish
2024-11 → —
TALA15 —
58387-0E151-C0 note Plate, Rear Floor Finish
2024-11 → —
TALH17 —
58387-0E151-C0 note Plate, Rear Floor Finish
2024-11 → —
AALH15,TALA10 —
58387-0E151-C0 note Plate, Rear Floor Finish
2024-11 → —
TALH17 —
67935-YY050 note Plate, Rear Floor Finish
2022-10 → —
AALH15,TALA1# —
67935-YY070 note Plate, Rear Floor Finish
2022-10 → —
TALH17 —
67935-YY070 note Plate, Rear Floor Finish
2022-10 → —
TALA15 —
61653C — Bracket, Deck Side Trim, RH
61653-0E050 Bracket, Deck Side Trim, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
61654F — Bracket, Deck Side Trim, LH
61654-0E050 Bracket, Deck Side Trim, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
62521C — Cover, Quarter Trim RH
62521-48020-C2 note Cover, Quarter Trim RH
2022-10 → —
TALH17 —
62521-48020-C2 note Cover, Quarter Trim RH
2022-10 → —
TALA15 —
62521-48020-C2 note Cover, Quarter Trim RH
2022-10 → —
AALH15,TALA10 —
62522B — Cover, Quarter Trim LH
62521-48020-C2 note Cover, Quarter Trim LH
2022-10 → —
TALH17 —
62521-48020-C2 note Cover, Quarter Trim LH
2022-10 → —
TALA15 —
62521-48020-C2 note Cover, Quarter Trim LH
2022-10 → —
AALH15,TALA10 —
64715C — Cover, Deck Side Trim, LH
64715-0E120-C0 note Cover, Deck Side Trim, LH
2022-10 → —
TALH17 —
64715-0E120-C0 note Cover, Deck Side Trim, LH
2022-10 → —
TALA15 —
64715-0E120-C0 note Cover, Deck Side Trim, LH
2022-10 → —
AALH15,TALA10 —
64715-0E130-C0 note Cover, Deck Side Trim, LH
2022-10 → —
TALH17 —
64715-0E130-C0 note Cover, Deck Side Trim, LH
2022-10 → —
TALA15 —
64715-0E130-C0 note Cover, Deck Side Trim, LH
2022-10 → —
AALH15,TALA10 —
64715-0E130-C0 note Cover, Deck Side Trim, LH
2022-10 → —
TALA15 —
64725F — Hook, Luggage Compartment Trim, NO.1
64725-48020-C1 note Hook, Luggage Compartment Trim, NO.1
2022-10 → —
TALH17 —
64725-48020-C1 note Hook, Luggage Compartment Trim, NO.1
2022-10 → —
TALA15 —
64725-48020-C1 note Hook, Luggage Compartment Trim, NO.1
2022-10 → —
AALH15,TALA10 —
64725K — Hook, Deck Side Trim, NO.1
64725-48030-C0 note Hook, Deck Side Trim, NO.1
2022-10 → —
TALH17 —
64725-48030-C0 note Hook, Deck Side Trim, NO.1
2022-10 → —
TALA15 —
64725-48030-C0 note Hook, Deck Side Trim, NO.1
2022-10 → —
AALH15,TALA10 —
64726H — Hook, Deck Side Trim, NO.2
64726-48040-C0 note Hook, Deck Side Trim, NO.2
2022-10 → —
TALH17 —
64726-48040-C0 note Hook, Deck Side Trim, NO.2
2022-10 → —
TALA15 —
64726-48040-C0 note Hook, Deck Side Trim, NO.2
2022-10 → —
AALH15,TALA10 —
64730B — Panel Assy, Deck Trim Side, RH
64730-0E200-C0 note Panel Assy, Deck Trim Side, RH
2022-10 → 2025-09 ended
TALH17 —
64730-0E200-C0 note Panel Assy, Deck Trim Side, RH
2022-10 → 2025-09 ended
TALA15 —
64730-0E200-C0 note Panel Assy, Deck Trim Side, RH
2022-10 → 2025-09 ended
AALH15,TALA10 —
64730-0E210-C0 note Panel Assy, Deck Trim Side, RH
2022-10 → 2025-09 ended
TALH17 —
64730-0E210-C0 note Panel Assy, Deck Trim Side, RH
2022-10 → 2025-09 ended
AALH15 —
64740C — Panel Assy, Deck Trim Side, LH
64740-0E280-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
TALH17 —
64740-0E280-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
TALA15 —
64740-0E280-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
AALH15,TALA10 —
64740-0E290-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
TALA15 —
64740-0E290-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
AALH15,TALA10 —
64740-0E290-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
TALA15 —
64740-0E290-C1 note Panel Assy, Deck Trim Side, LH
2022-10 → —
TALH17 —
64910J — Cover Assy, Tonneau
64910-0E150-C1 note Cover Assy, Tonneau
2022-10 → —
TALH17 —
64910-0E150-C1 note Cover Assy, Tonneau
2022-10 → —
TALA15 —
64910-0E150-C1 note Cover Assy, Tonneau
2022-10 → —
AALH15,TALA10 —
66310H — Hook Assy, Rope
66310-30011-C1 note Hook Assy, Rope
2022-10 → —
AALH15,TALA1#,TALH17 —
85536A — Bezel, Power Outlet Socket
85536-0E040-C0 note Bezel, Power Outlet Socket
2022-10 → —
TALH17 —
85536-0E040-C0 note Bezel, Power Outlet Socket
2022-10 → —
AALH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
