Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

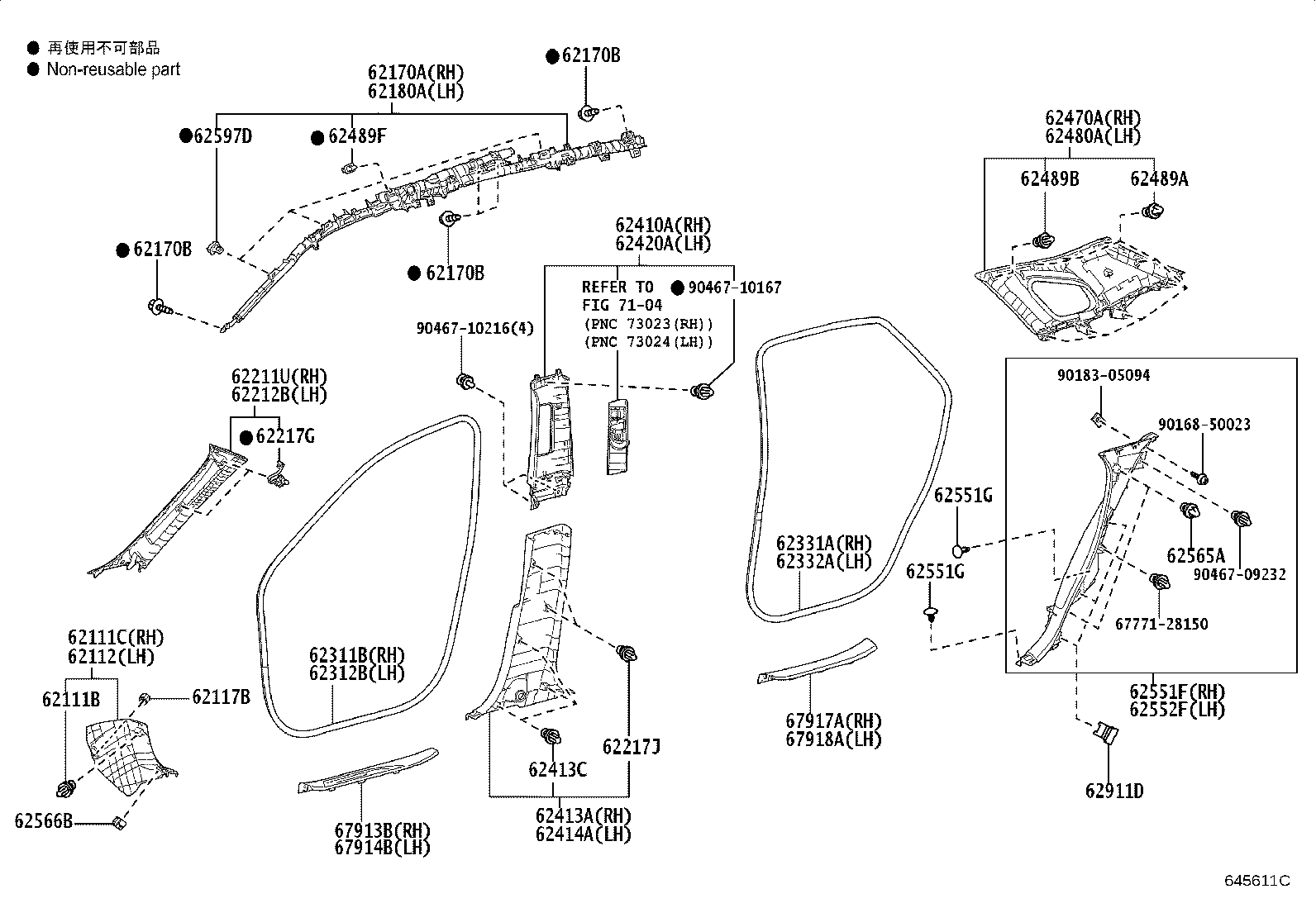

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62111B — Clip(FOR COWL SIDE TRIM) | ||||
| 90467-A0006 |
Clip(FOR COWL SIDE TRIM)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62111C — Board, Cowl Side Trim, RH | ||||
| 62111-0E030-C0 note |
Board, Cowl Side Trim, RH
2022-10 → —
|
TALH17 | — | |
| 62111-0E030-C0 note |
Board, Cowl Side Trim, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62111-0E030-C0 note |
Board, Cowl Side Trim, RH
2022-10 → —
|
TALA15 | — | |
| 62112 — Board, Cowl Side Trim, LH | ||||
| 62112-0E030-C0 note |
Board, Cowl Side Trim, LH
2022-10 → —
|
TALH17 | — | |
| 62112-0E030-C0 note |
Board, Cowl Side Trim, LH
2022-10 → —
|
TALA15 | — | |
| 62112-0E030-C0 note |
Board, Cowl Side Trim, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62117B — Clip, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-0E150 |
Airbag Assy, Curtain Shield, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62170B — Bolt, W/Washer | ||||
| 90080-11699 |
Bolt, W/Washer
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-0E150 |
Airbag Assy, Curtain Shield, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62211U — Garnish Assy, Front Pillar, RH | ||||
| 62210-0E210-A1 note |
Garnish Assy, Front Pillar, RH
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 62210-0E210-A2 note |
Garnish Assy, Front Pillar, RH
2024-11 → —
|
AALH15,TALA1# | — | |
| 62210-0E210-C1 note |
Garnish Assy, Front Pillar, RH
2022-10 → —
|
TALA15 | — | |
| 62210-0E210-C1 note |
Garnish Assy, Front Pillar, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62210-0E210-C1 note |
Garnish Assy, Front Pillar, RH
2022-10 → —
|
TALH17 | — | |
| 62212B — Garnish Assy, Front Pillar, LH | ||||
| 62220-0E220-A1 note |
Garnish Assy, Front Pillar, LH
2022-10 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 62220-0E220-A2 note |
Garnish Assy, Front Pillar, LH
2024-11 → —
|
AALH15,TALA1# | — | |
| 62220-0E220-C1 note |
Garnish Assy, Front Pillar, LH
2022-10 → —
|
TALH17 | — | |
| 62220-0E220-C1 note |
Garnish Assy, Front Pillar, LH
2022-10 → —
|
TALA15 | — | |
| 62220-0E220-C1 note |
Garnish Assy, Front Pillar, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-11020 |
Clip, Front Pillar Garnish
2022-10 → 2023-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 62217-48020 |
Clip, Front Pillar Garnish
2023-12 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62217J — Clip, Center Piller Garnish | ||||
| 90467-A0006 |
Clip, Center Piller Garnish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62311B — Weatherstrip, Front Door Opening Trim, RH | ||||
| 62311-0E130 |
Weatherstrip, Front Door Opening Trim, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62312B — Weatherstrip, Front Door Opening Trim, LH | ||||
| 62312-0E130 |
Weatherstrip, Front Door Opening Trim, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62331A — Weatherstrip, Rear Door Opening Trim, RH | ||||
| 62331-0E130 |
Weatherstrip, Rear Door Opening Trim, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62332A — Weatherstrip, Rear Door Opening Trim, LH | ||||
| 62332-0E130 |
Weatherstrip, Rear Door Opening Trim, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62410A — Garnish Assy, Center Pillar, RH | ||||
| 62410-0E160-C1 note |
Garnish Assy, Center Pillar, RH
2022-10 → 2023-04
ended
|
TALH17 | — | |
| 62410-0E160-C1 note |
Garnish Assy, Center Pillar, RH
2022-10 → 2023-04
ended
|
TALA15 | — | |
| 62410-0E160-C1 note |
Garnish Assy, Center Pillar, RH
2022-10 → 2023-04
ended
|
AALH15,TALA10 | — | |
| 62410-0E160-C2 note |
Garnish Assy, Center Pillar, RH
2023-04 → —
|
TALH17 | — | |
| 62410-0E160-C2 note |
Garnish Assy, Center Pillar, RH
2023-04 → —
|
TALA15 | — | |
| 62410-0E160-C2 note |
Garnish Assy, Center Pillar, RH
2023-04 → —
|
AALH15,TALA10 | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-0E130-C0 note |
Garnish, Center Pillar, Lower RH
2022-10 → —
|
TALH17 | — | |
| 62413-0E130-C0 note |
Garnish, Center Pillar, Lower RH
2022-10 → —
|
TALA15 | — | |
| 62413-0E130-C0 note |
Garnish, Center Pillar, Lower RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-10167 |
Clip (FOR CENTER LOWER GARNISH)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-0E130-C0 note |
Garnish, Center Pillar, Lower LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62414-0E130-C0 note |
Garnish, Center Pillar, Lower LH
2022-10 → —
|
TALA15 | — | |
| 62414-0E130-C0 note |
Garnish, Center Pillar, Lower LH
2022-10 → —
|
TALH17 | — | |
| 62420A — Garnish Assy, Center Piller, LH | ||||
| 62420-0E160-C1 note |
Garnish Assy, Center Piller, LH
2022-10 → 2023-04
ended
|
TALH17 | — | |
| 62420-0E160-C1 note |
Garnish Assy, Center Piller, LH
2022-10 → 2023-04
ended
|
TALA15 | — | |
| 62420-0E160-C1 note |
Garnish Assy, Center Piller, LH
2022-10 → 2023-04
ended
|
AALH15,TALA10 | — | |
| 62420-0E160-C2 note |
Garnish Assy, Center Piller, LH
2023-04 → —
|
TALH17 | — | |
| 62420-0E160-C2 note |
Garnish Assy, Center Piller, LH
2023-04 → —
|
TALA15 | — | |
| 62420-0E160-C2 note |
Garnish Assy, Center Piller, LH
2023-04 → —
|
AALH15,TALA10 | — | |
| 62470A — Garnish Assy, Roof Side, Inner RH | ||||
| 62470-0E270-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → 2024-10
ended
|
TALH17 | — | |
| 62470-0E270-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → 2024-10
ended
|
TALA15 | — | |
| 62470-0E270-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → 2024-10
ended
|
AALH15,TALA10 | — | |
| 62470-0E271-C0 note |
Garnish Assy, Roof Side, Inner RH
2024-11 → —
|
AALH15,TALA10 | — | |
| 62470-0E271-C0 note |
Garnish Assy, Roof Side, Inner RH
2024-11 → —
|
TALA15 | — | |
| 62470-0E271-C0 note |
Garnish Assy, Roof Side, Inner RH
2024-11 → —
|
TALH17 | — | |
| 62470-0E280-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → —
|
TALA15 | — | |
| 62470-0E280-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62470-0E280-C0 note |
Garnish Assy, Roof Side, Inner RH
2022-10 → —
|
TALH17 | — | |
| 62480A — Garnish Assy, Roof Side, Inner LH | ||||
| 62480-0E280-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → 2024-10
ended
|
TALH17 | — | |
| 62480-0E280-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → 2024-10
ended
|
TALA15 | — | |
| 62480-0E280-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → 2024-10
ended
|
AALH15,TALA10 | — | |
| 62480-0E281-C0 note |
Garnish Assy, Roof Side, Inner LH
2024-11 → —
|
TALH17 | — | |
| 62480-0E281-C0 note |
Garnish Assy, Roof Side, Inner LH
2024-11 → —
|
TALA15 | — | |
| 62480-0E281-C0 note |
Garnish Assy, Roof Side, Inner LH
2024-11 → —
|
AALH15,TALA10 | — | |
| 62480-0E290-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → —
|
TALH17 | — | |
| 62480-0E290-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → —
|
TALA15 | — | |
| 62480-0E290-C0 note |
Garnish Assy, Roof Side, Inner LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62489A — Clip, Roof Side Inner Garnish | ||||
| 90467-09245 note |
Clip, Roof Side Inner Garnish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62489B — Clip, Roof Side Inner Garnish | ||||
| 62489-06010 note |
Clip, Roof Side Inner Garnish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62489F — Clip, Roof Side Inner Garnish | ||||
| 62489-28010 |
Clip, Roof Side Inner Garnish
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-0E370-C0 note |
Garnish, Rear Seat Side, RH
2022-10 → —
|
TALH17 | — | |
| 62551-0E370-C0 note |
Garnish, Rear Seat Side, RH
2022-10 → —
|
TALA15 | — | |
| 62551-0E370-C0 note |
Garnish, Rear Seat Side, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62551-0E370-C0 note |
Garnish, Rear Seat Side, RH
2022-10 → —
|
TALA15 | — | |
| 62551-0E380-C0 note |
Garnish, Rear Seat Side, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62551G — Clip | ||||
| 90467-A0002-C4 note |
Clip
2022-10 → —
|
TALH17 | — | |
| 90467-A0002-C4 note |
Clip
2022-10 → —
|
TALA15 | — | |
| 90467-A0002-C4 note |
Clip
2022-10 → —
|
AALH15,TALA10 | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-0E220-C0 note |
Garnish, Rear Seat Side, LH
2022-10 → —
|
TALH17 | — | |
| 62552-0E220-C0 note |
Garnish, Rear Seat Side, LH
2022-10 → —
|
TALA15 | — | |
| 62552-0E220-C0 note |
Garnish, Rear Seat Side, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 62552-0E220-C0 note |
Garnish, Rear Seat Side, LH
2022-10 → —
|
TALA15 | — | |
| 62552-0E230-C0 note |
Garnish, Rear Seat Side, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 62565A — Clip (FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-09245 |
Clip (FOR REAR SEAT SIDE GARNISH)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62566B — Clamp, Rocker Panel Inner Protecter, NO.1 | ||||
| 62566-0E020 |
Clamp, Rocker Panel Inner Protecter, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62597D — Clip | ||||
| 90467-18017 |
Clip
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 62911D — Hook, Side Window Lock | ||||
| 62911-48010 |
Hook, Side Window Lock
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 67913B — Plate, Front Door Scuff, RH | ||||
| 67910-0E090-C0 note |
Plate, Front Door Scuff, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 67910-0E090-C0 note |
Plate, Front Door Scuff, RH
2022-10 → —
|
TALA15 | — | |
| 67910-0E090-C0 note |
Plate, Front Door Scuff, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 67910-0E140-C0 note |
Plate, Front Door Scuff, RH
2022-10 → 2024-04
ended
|
TALA15 | — | |
| 67910-0E140-C0 note |
Plate, Front Door Scuff, RH
2024-04 → —
|
TALA15 | — | |
| 67910-0E150-C0 note |
Plate, Front Door Scuff, RH
2022-10 → —
|
TALH17 | — | |
| 67910-0E150-C0 note |
Plate, Front Door Scuff, RH
2022-10 → —
|
TALH17 | — | |
| 67913-YY710 note |
Plate, Front Door Scuff, RH
2024-04 → —
|
AALH15,TALA1# | — | |
| 67913-YY720 note |
Plate, Front Door Scuff, RH
2024-04 → —
|
TALA15,TALH17 | — | |
| 67914B — Plate, Front Door Scuff, LH | ||||
| 67914-YY110 note |
Plate, Front Door Scuff, LH
2024-04 → —
|
AALH15,TALA1# | — | |
| 67914-YY140 note |
Plate, Front Door Scuff, LH
2024-04 → —
|
TALA15,TALH17 | — | |
| 67920-0E090-C0 note |
Plate, Front Door Scuff, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 67920-0E090-C0 note |
Plate, Front Door Scuff, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 67920-0E090-C0 note |
Plate, Front Door Scuff, LH
2022-10 → —
|
TALA15 | — | |
| 67920-0E140-C0 note |
Plate, Front Door Scuff, LH
2022-10 → 2024-04
ended
|
TALA15 | — | |
| 67920-0E140-C0 note |
Plate, Front Door Scuff, LH
2024-04 → —
|
TALA15 | — | |
| 67920-0E150-C0 note |
Plate, Front Door Scuff, LH
2022-10 → —
|
TALH17 | — | |
| 67920-0E150-C0 note |
Plate, Front Door Scuff, LH
2022-10 → —
|
TALH17 | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-0E140-C0 note |
Plate, Rear Door Scuff, RH
2022-10 → —
|
TALH17 | — | |
| 67917-0E140-C0 note |
Plate, Rear Door Scuff, RH
2022-10 → —
|
TALA15 | — | |
| 67917-0E140-C0 note |
Plate, Rear Door Scuff, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-0E140-C0 note |
Plate, Rear Door Scuff, LH
2022-10 → —
|
TALH17 | — | |
| 67918-0E140-C0 note |
Plate, Rear Door Scuff, LH
2022-10 → —
|
TALA15 | — | |
| 67918-0E140-C0 note |
Plate, Rear Door Scuff, LH
2022-10 → —
|
AALH15,TALA10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
