Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

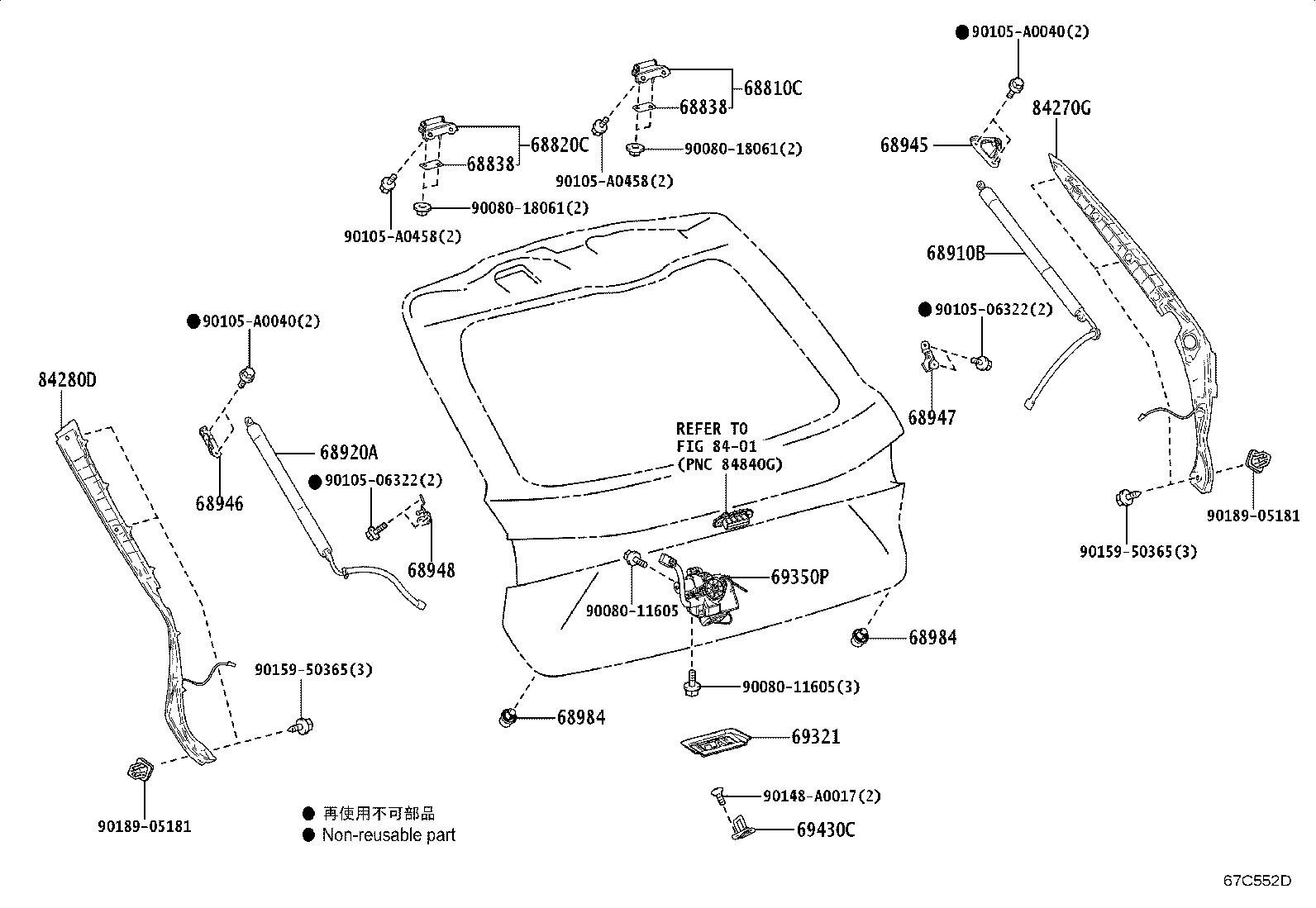

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810C — Hinge Assy, Back Door, RH | ||||
| 68810-F6010 |
Hinge Assy, Back Door, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68820C — Hinge Assy, Back Door, LH | ||||
| 68810-F6010 |
Hinge Assy, Back Door, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68838 — Pad, Back Door Hinge, NO.1 | ||||
| 68838-48140 note |
Pad, Back Door Hinge, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68910B — Unit Assy, Power Back Door, RH | ||||
| 68910-0E150 |
Unit Assy, Power Back Door, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68920A — Unit Assy, Power Back Door, LH | ||||
| 68920-0E100 |
Unit Assy, Power Back Door, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68945 — Bracket, Back Door Damper Stay, Upper RH | ||||
| 68945-0E130 |
Bracket, Back Door Damper Stay, Upper RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68946 — Bracket, Back Door Damper Stay, Upper LH | ||||
| 68946-0E090 |
Bracket, Back Door Damper Stay, Upper LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68947 — Bracket, Back Door Damper Stay, Lower RH | ||||
| 68947-0E110 |
Bracket, Back Door Damper Stay, Lower RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68948 — Bracket, Back Door Damper Stay, Lower LH | ||||
| 68948-0E110 |
Bracket, Back Door Damper Stay, Lower LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68984 — Stopper, Back Door Stay | ||||
| 68984-F6021 |
Stopper, Back Door Stay
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 69321 — Cover, Back Door Lock | ||||
| 69321-0E090-C0 note |
Cover, Back Door Lock
2022-10 → —
|
TALH17 | — | |
| 69321-0E090-C0 note |
Cover, Back Door Lock
2022-10 → —
|
TALA15 | — | |
| 69321-0E090-C0 note |
Cover, Back Door Lock
2022-10 → —
|
AALH15,TALA10 | — | |
| 69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch | ||||
| 69350-0E200 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-0E040 |
Striker Assy, Back Door Lock
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84270G — Sensor Assy, Power Back Door, RH | ||||
| 84270-0E110 |
Sensor Assy, Power Back Door, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84280D — Sensor Assy, Power Back Door, LH | ||||
| 84280-0E100 |
Sensor Assy, Power Back Door, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
