Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

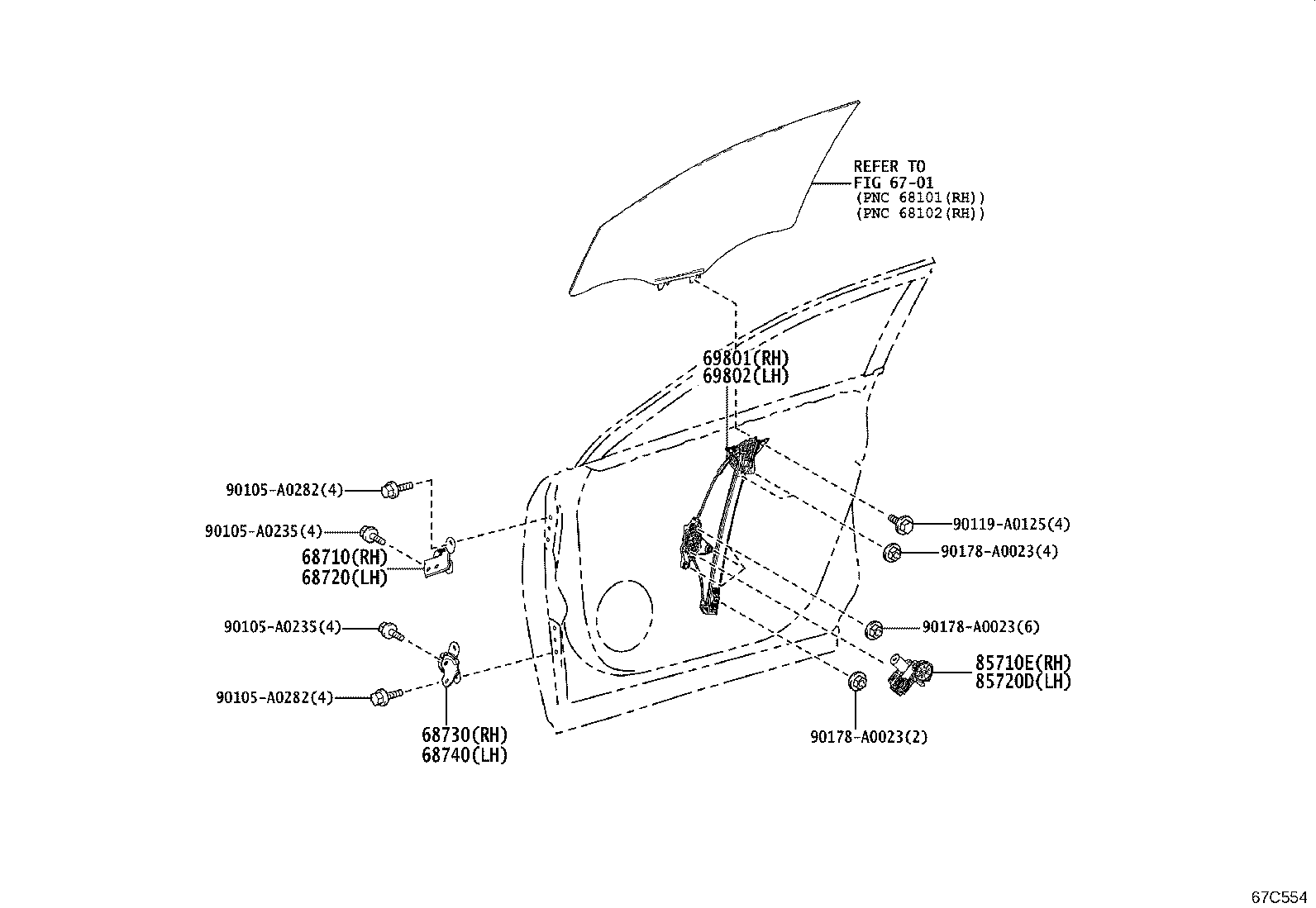

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68710 — Hinge Assy, Front Door, Upper RH | ||||
| 68710-02020 |
Hinge Assy, Front Door, Upper RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68720 — Hinge Assy, Front Door, Upper LH | ||||
| 68720-02020 |
Hinge Assy, Front Door, Upper LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68730 — Hinge Assy, Front Door, Lower RH | ||||
| 68730-02080 |
Hinge Assy, Front Door, Lower RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 68740 — Hinge Assy, Front Door, Lower LH | ||||
| 68740-02080 |
Hinge Assy, Front Door, Lower LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 69801 — Regulator Sub-assy, Front Door Window, RH | ||||
| 69801-0E180 |
Regulator Sub-assy, Front Door Window, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 69802 — Regulator Sub-assy, Front Door Window, LH | ||||
| 69802-0E180 |
Regulator Sub-assy, Front Door Window, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 85710E — Motor Assy, Power Window Regulator, RH | ||||
| 85710-0E190 |
Motor Assy, Power Window Regulator, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 85720D — Motor Assy, Power Window Regulator, LH | ||||
| 85720-0E210 |
Motor Assy, Power Window Regulator, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
