Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

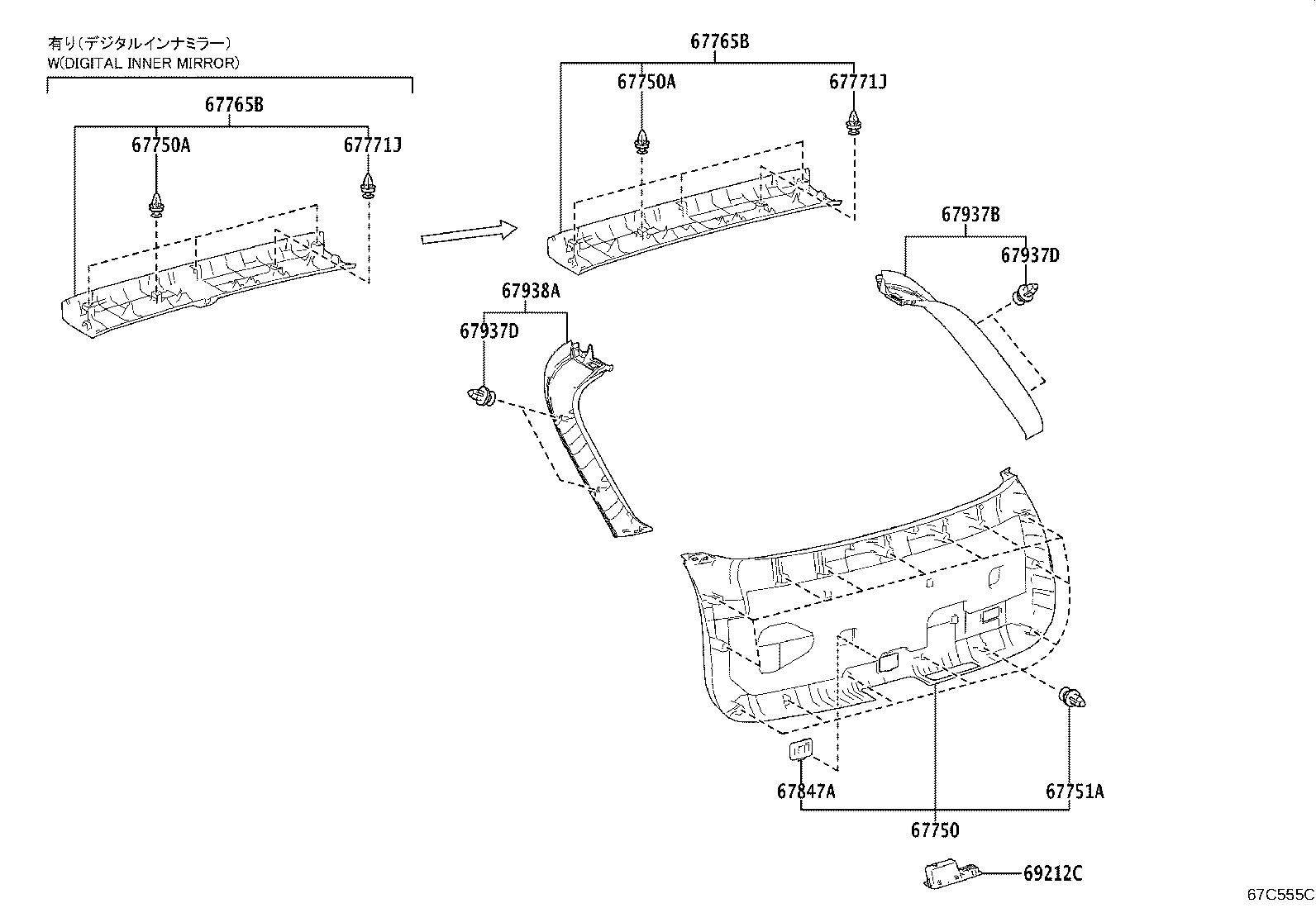

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67750 — Board Assy, Back Door Trim | ||||
| 67750-0E030-C0 note |
Board Assy, Back Door Trim
2022-10 → —
|
TALA15 | — | |
| 67750-0E030-C0 note |
Board Assy, Back Door Trim
2022-10 → —
|
AALH15,TALA10 | — | |
| 67750-0E030-C0 note |
Board Assy, Back Door Trim
2022-10 → —
|
TALH17 | — | |
| 67750A — Clip(FOR BACK DOOR TRIM) | ||||
| 90467-A0006 |
Clip(FOR BACK DOOR TRIM)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 67751A — Clip(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-A0006 |
Clip(FOR BACK DOOR TRIM BOARD)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 67765B — Cover, Back Door Trim, Upper | ||||
| 67765-0E030-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
TALH17 | — | |
| 67765-0E030-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
TALA15 | — | |
| 67765-0E030-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
AALH15,TALA10 | — | |
| 67765-0E031-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
TALH17 | — | |
| 67765-0E031-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
TALA15 | — | |
| 67765-0E031-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
AALH15,TALA10 | — | |
| 67765-0E040-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
TALH17 | — | |
| 67765-0E040-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
TALA15 | — | |
| 67765-0E040-C0 note |
Cover, Back Door Trim, Upper
2022-10 → 2024-10
ended
|
AALH15,TALA10 | — | |
| 67765-0E041-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
TALA15 | — | |
| 67765-0E041-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
AALH15,TALA10 | — | |
| 67765-0E041-C0 note |
Cover, Back Door Trim, Upper
2024-11 → —
|
TALH17 | — | |
| 67771J — Retainer, Door Trim | ||||
| 67771-58020 |
Retainer, Door Trim
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 67847A — Cover, Back Door Service Hole | ||||
| 67847-0E130-C0 note |
Cover, Back Door Service Hole
2022-10 → —
|
TALH17 | — | |
| 67847-0E130-C0 note |
Cover, Back Door Service Hole
2022-10 → —
|
TALA15 | — | |
| 67847-0E130-C0 note |
Cover, Back Door Service Hole
2022-10 → —
|
AALH15,TALA10 | — | |
| 67937B — Garnish, Back Door Side, RH | ||||
| 67937-0E050-C0 note |
Garnish, Back Door Side, RH
2022-10 → —
|
TALH17 | — | |
| 67937-0E050-C0 note |
Garnish, Back Door Side, RH
2022-10 → —
|
TALA15 | — | |
| 67937-0E050-C0 note |
Garnish, Back Door Side, RH
2022-10 → —
|
AALH15,TALA10 | — | |
| 67937D — Retainer, Door Trim | ||||
| 67771-12060 |
Retainer, Door Trim
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 67938A — Garnish, Back Door Side, LH | ||||
| 67938-0E030-C0 note |
Garnish, Back Door Side, LH
2022-10 → —
|
TALH17 | — | |
| 67938-0E030-C0 note |
Garnish, Back Door Side, LH
2022-10 → —
|
TALA15 | — | |
| 67938-0E030-C0 note |
Garnish, Back Door Side, LH
2022-10 → —
|
AALH15,TALA10 | — | |
| 69212C — Handle, Back Door Inside | ||||
| 69291-0E060-C0 note |
Handle, Back Door Inside
2022-10 → —
|
TALH17 | — | |
| 69291-0E060-C0 note |
Handle, Back Door Inside
2022-10 → —
|
TALA15 | — | |
| 69291-0E060-C0 note |
Handle, Back Door Inside
2022-10 → —
|
AALH15,TALA10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
