Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

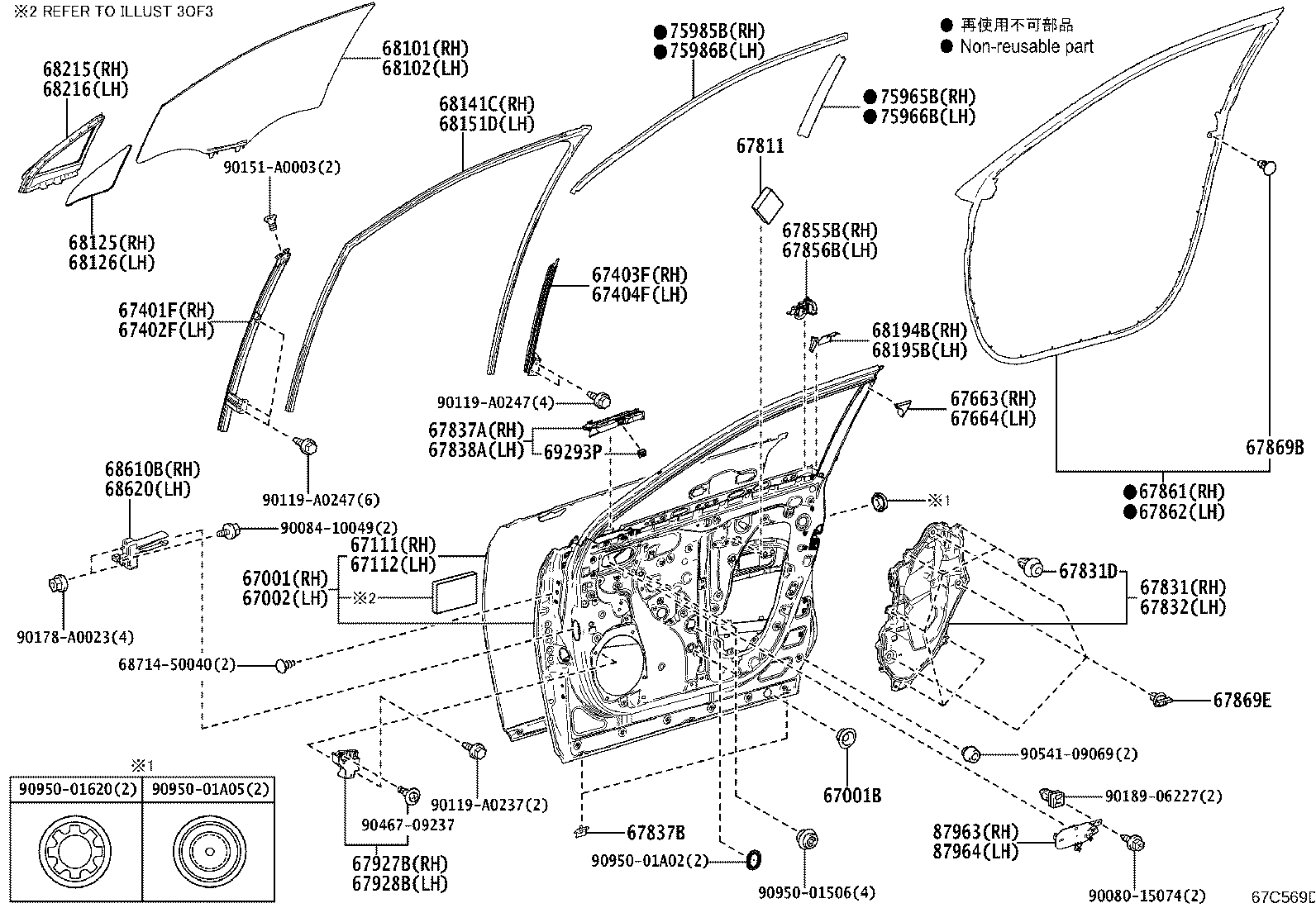

45 parts on this figure

Part number	Description	Fitment	Price
67001 — Panel Sub-assy, Front Door, RH
67001-0E250	Panel Sub-assy, Front Door, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67001B — Plug, Hole(FOR FRONT DOOR PANEL)
90950-01958	Plug, Hole(FOR FRONT DOOR PANEL) 2022-10 → —	AALH15,TALA1#,TALH17	—
67002 — Panel Sub-assy, Front Door, LH
67002-0E210	Panel Sub-assy, Front Door, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67111 — Panel, Front Door, Outer RH
67111-0E130	Panel, Front Door, Outer RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67112 — Panel, Front Door, Outer LH
67112-0E130	Panel, Front Door, Outer LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-0E070	Frame Sub-assy, Front Door, Front Lower RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-0E070	Frame Sub-assy, Front Door, Front Lower LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-0E120	Frame Sub-assy, Front Door, Rear Lower RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-0E110	Frame Sub-assy, Front Door, Rear Lower LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67663 — Garnish, Door Frame, Upper RH
67663-0E130	Garnish, Door Frame, Upper RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67664 — Garnish, Door Frame, Upper LH
67664-0E120	Garnish, Door Frame, Upper LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67811 — Pad, Front Door Silencer
67811-30100	Pad, Front Door Silencer 2022-10 → —	AALH15,TALA1#,TALH17	—
67831 — Cover, Front Door Service Hole, RH
67831-0E140	Cover, Front Door Service Hole, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67831D — Clip(FOR FRONT DOOR SERVICE HOLE COVER)
90467-A0005	Clip(FOR FRONT DOOR SERVICE HOLE COVER) 2022-10 → —	AALH15,TALA1#,TALH17	—
67832 — Cover, Front Door Service Hole, LH
67832-0E140	Cover, Front Door Service Hole, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67837A — Seal, Front Door Vent, RH
67837-0E140	Seal, Front Door Vent, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67837B — Seal, Front Door Dust Proof
67837-0E060	Seal, Front Door Dust Proof 2022-10 → —	AALH15,TALA1#,TALH17	—
67838A — Seal, Front Door Vent, LH
67838-0E050	Seal, Front Door Vent, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67855B — Protector, Front Door Panel, RH
67855-0E090	Protector, Front Door Panel, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67856B — Protector, Front Door Panel, LH
67856-0E080	Protector, Front Door Panel, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67861 — Weatherstrip, Front Door, RH
67861-0E140	Weatherstrip, Front Door, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
67862 — Weatherstrip, Front Door, LH
67862-0E140	Weatherstrip, Front Door, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
67869B — Clip, Front Door Weatherstrip
67869-26050	Clip, Front Door Weatherstrip 2022-10 → —	AALH15,TALA1#,TALH17	—
67869E — Clip, Front Door Weatherstrip
67869-0E010	Clip, Front Door Weatherstrip 2022-10 → —	AALH15,TALA1#,TALH17	—
67927B — Cushion, Separation Door Stiffener, NO.1
67927-0E150	Cushion, Separation Door Stiffener, NO.1 2022-10 → —	AALH15,TALA1#,TALH17	—
67928B — Cushion, Separation Door Stiffener, NO.2
67928-0E100	Cushion, Separation Door Stiffener, NO.2 2022-10 → —	AALH15,TALA1#,TALH17	—
68101 — Glass Sub-assy, Front Door, RH
68101-0E240	Glass Sub-assy, Front Door, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68102 — Glass Sub-assy, Front Door, LH
68102-0E240	Glass Sub-assy, Front Door, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
68125 — Glass, Front Door Fix Window, RH
68125-0E040	Glass, Front Door Fix Window, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68126 — Glass, Front Door Fix Window, LH
68126-0E040	Glass, Front Door Fix Window, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
68141C — Run, Front Door Glass, RH
68141-0E130	Run, Front Door Glass, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68151D — Run, Front Door Glass, LH
68151-0E130	Run, Front Door Glass, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
68194B — Seal, Front Door Belt, Rear RH
68194-0E030	Seal, Front Door Belt, Rear RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68195B — Seal, Front Door Belt, Rear LH
68195-0E030	Seal, Front Door Belt, Rear LH 2022-10 → —	AALH15,TALA1#,TALH17	—
68215 — Weatherstrip, Front Door Fix Window, RH
68215-0E010	Weatherstrip, Front Door Fix Window, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68216 — Weatherstrip, Front Door Fix Window, LH
68216-0E010	Weatherstrip, Front Door Fix Window, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
68610B — Check Assy, Front Door, RH
68610-0E160	Check Assy, Front Door, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
68620 — Check Assy, Front Door, LH
68620-0E140	Check Assy, Front Door, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
69293P — Retainer, Front Door Corner Seal
67923-0E110	Retainer, Front Door Corner Seal 2022-10 → —	AALH15,TALA1#,TALH17	—
75965B — Stripe, Front Door NO.4 RH
75965-0E040	Stripe, Front Door NO.4 RH 2022-10 → —	AALH15,TALA1#,TALH17	—
75966B — Stripe, Front Door NO.4 LH
75966-0E040	Stripe, Front Door NO.4 LH 2022-10 → —	AALH15,TALA1#,TALH17	—
75985B — Stripe, Front Door, NO.3 RH
75985-0E050	Stripe, Front Door, NO.3 RH 2022-10 → —	AALH15,TALA1#,TALH17	—
75986B — Stripe, Front Door, NO.3 LH
75986-0E050	Stripe, Front Door, NO.3 LH 2022-10 → —	AALH15,TALA1#,TALH17	—
87963 — Cover, Outer Mirror Install Hole, RH
87963-0E100	Cover, Outer Mirror Install Hole, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
87964 — Cover, Outer Mirror Install Hole, LH
87964-0E100	Cover, Outer Mirror Install Hole, LH 2022-10 → —	AALH15,TALA1#,TALH17	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
