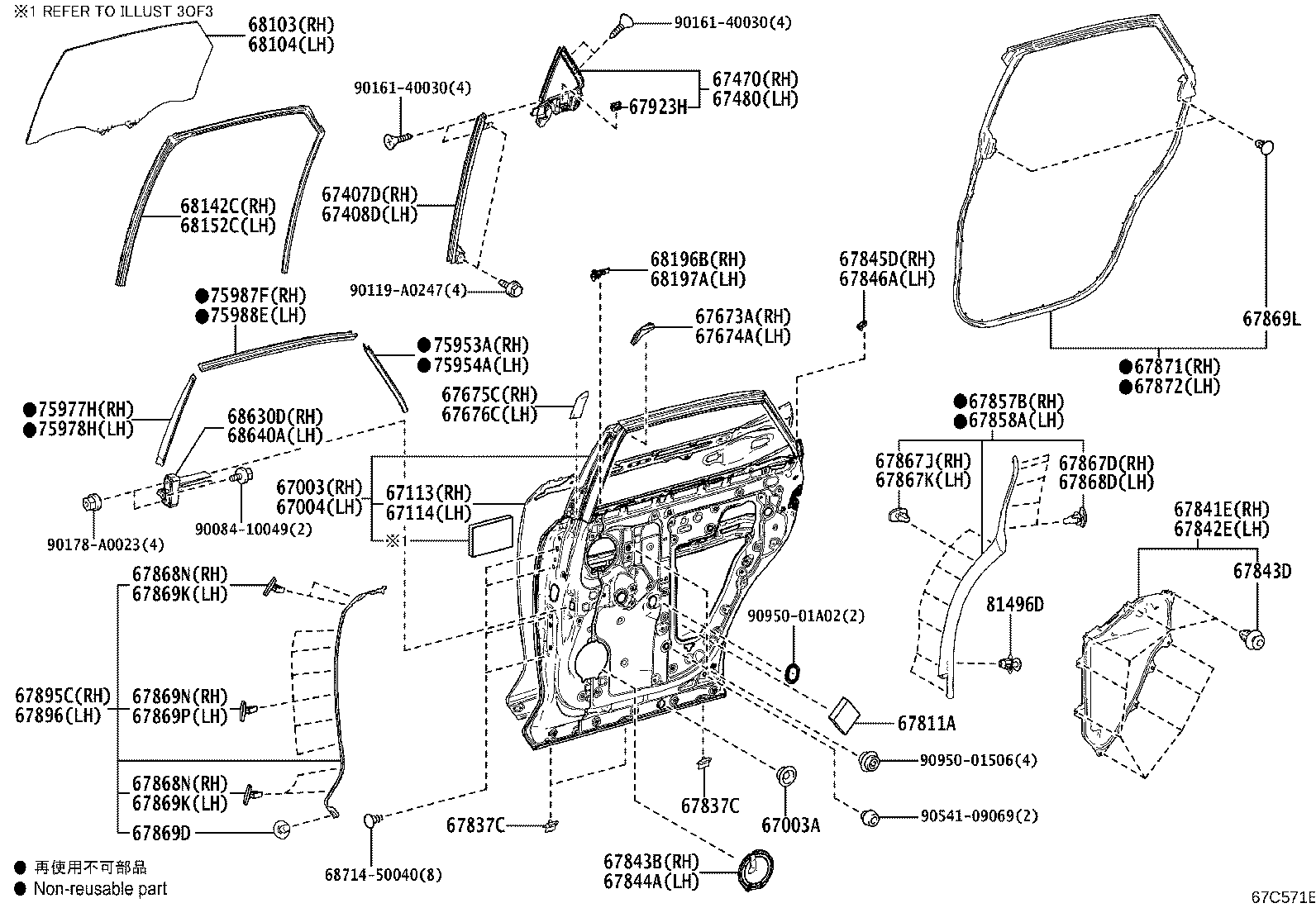

Exploded illustration 67C571E 67003 — PANEL SUB-ASSY, REAR DOOR, RH (2 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (2 parts) 67407D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH (1 parts) 67408D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH (1 parts) 67470 — SEAL ASSY, REAR DOOR REAR GUIDE, RH (1 parts) 67480 — SEAL ASSY, REAR DOOR REAR GUIDE, LH (1 parts) 67923H — RETAINER, DOOR CORNER SEAL (1 parts) 90119A0247 — not listed in this catalogue 9016140030 — not listed in this catalogue 9016140030 — not listed in this catalogue 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 67869L — CLIP, REAR DOOR WEATHERSTRIP (1 parts) 67869D — CLIP, DOOR WEATHERSTRIP (1 parts) 67895C — WEATHERSTRIP, REAR DOOR, NO.3 RH (1 parts) 67896 — WEATHERSTRIP, REAR DOOR, NO.3 LH (1 parts) 67869N — CLIP, REAR DOOR WEATHERSTRIP, RH (1 parts) 67869P — CLIP, REAR DOOR WEATHERSTRIP, LH (1 parts) 67868N — CLIP, DOOR WEATHERSTRIP, RH (1 parts) 67869K — CLIP, DOOR WEATHERSTRIP, LH (1 parts) 67868N — CLIP, DOOR WEATHERSTRIP, RH (1 parts) 67869K — CLIP, DOOR WEATHERSTRIP, LH (1 parts) 67857B — PROTECTOR, REAR DOOR PANEL, RH (1 parts) 67858A — PROTECTOR, REAR DOOR PANEL, LH (1 parts) 67867J — CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) (1 parts) 67867K — CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) (1 parts) 81496D — GUIDE, REAR COMBINATION LAMP (1 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (1 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (1 parts) 67843D — CLIP, REAR DOOR SERVICE HOLE (1 parts) 67843B — COVER, REAR DOOR SERVICE HOLE, NO.2 RH (1 parts) 67844A — COVER, REAR DOOR SERVICE HOLE, NO.2 LH (1 parts) 68196B — SEAL, REAR DOOR BELT, FRONT RH (1 parts) 68197A — SEAL, REAR DOOR BELT, FRONT LH (1 parts) 67811A — PAD, REAR DOOR SILENCER (1 parts) 67837C — SEAL, REAR DOOR DUST PROOF (1 parts) 67837C — SEAL, REAR DOOR DUST PROOF (1 parts) 6871450040 — not listed in this catalogue 9054109069 — not listed in this catalogue 9095001506 — not listed in this catalogue 67003A — PLUG, HOLE(FOR REAR DOOR PANEL) (1 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (1 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (1 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68630D — CHECK ASSY, REAR DOOR, RH (1 parts) 68640A — CHECK ASSY, REAR DOOR, LH (1 parts) 9008410049 — not listed in this catalogue 90178A0023 — not listed in this catalogue 75953A — TAPE, BLACK OUT, INNER REAR RH (1 parts) 75954A — TAPE, BLACK OUT, INNER REAR LH (1 parts) 75987F — STRIPE, REAR DOOR, OUTSIDE, RH (2 parts) 75988E — STRIPE, REAR DOOR, OUTSIDE LH (2 parts) 67673A — GARNISH, REAR DOOR FRAME, RH (1 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (1 parts) 67675C — GARNISH, REAR DOOR FRAME, NO.2 RH (1 parts) 67676C — GARNISH, REAR DOOR FRAME, NO.2 LH (1 parts) 9095001A02 — not listed in this catalogue 75977H — STRIPE, REAR DOOR OUTSIDE, LOWER RH (1 parts) 75978H — STRIPE, REAR DOOR OUTSIDE, LOWER LH (1 parts) 67845D — SEAL, REAR DOOR FRONT OUTSIDE, RH (1 parts) 67846A — SEAL, REAR DOOR FRONT OUTSIDE, LH (1 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (1 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (1 parts) 67113 — PANEL, REAR DOOR, OUTER RH (1 parts) 67114 — PANEL, REAR DOOR, OUTER LH (1 parts)
67C571E · 57 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-0E250 Panel Sub-assy, Rear Door, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67003-0E260 note Panel Sub-assy, Rear Door, RH
2022-10 → —
AALH15,TALA1# —
67003A — Plug, Hole(FOR REAR DOOR PANEL)
90950-01958 Plug, Hole(FOR REAR DOOR PANEL)
2022-10 → —
AALH15,TALA1#,TALH17 —
67004 — Panel Sub-assy, Rear Door, LH
67004-0E240 Panel Sub-assy, Rear Door, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67004-0E250 note Panel Sub-assy, Rear Door, LH
2022-10 → —
AALH15,TALA1# —
67113 — Panel, Rear Door, Outer RH
67113-0E130 Panel, Rear Door, Outer RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67114 — Panel, Rear Door, Outer LH
67114-0E130 Panel, Rear Door, Outer LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67407D — Guide Sub-assy, Rear Door Window, Rear RH
67407-0E140 Guide Sub-assy, Rear Door Window, Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67408D — Guide Sub-assy, Rear Door Window, Rear LH
67408-0E130 Guide Sub-assy, Rear Door Window, Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67470 — Seal Assy, Rear Door Rear Guide, RH
67470-0E020 Seal Assy, Rear Door Rear Guide, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67480 — Seal Assy, Rear Door Rear Guide, LH
67480-0E020 Seal Assy, Rear Door Rear Guide, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67673A — Garnish, Rear Door Frame, RH
67673-0E110 Garnish, Rear Door Frame, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67674A — Garnish, Rear Door Frame, LH
67674-0E090 Garnish, Rear Door Frame, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67675C — Garnish, Rear Door Frame, NO.2 RH
67675-0E110 Garnish, Rear Door Frame, NO.2 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67676C — Garnish, Rear Door Frame, NO.2 LH
67676-0E090 Garnish, Rear Door Frame, NO.2 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67811A — Pad, Rear Door Silencer
67811-30100 Pad, Rear Door Silencer
2022-10 → —
AALH15,TALA1#,TALH17 —
67837C — Seal, Rear Door Dust Proof
67837-0E060 Seal, Rear Door Dust Proof
2022-10 → —
AALH15,TALA1#,TALH17 —
67841E — Cover, Rear Door Service Hole, RH
67841-0E140 Cover, Rear Door Service Hole, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67842E — Cover, Rear Door Service Hole, LH
67842-0E140 Cover, Rear Door Service Hole, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67843B — Cover, Rear Door Service Hole, NO.2 RH
67843-0E050 Cover, Rear Door Service Hole, NO.2 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67843D — Clip, Rear Door Service Hole
90467-A0005 Clip, Rear Door Service Hole
2022-10 → —
AALH15,TALA1#,TALH17 —
67844A — Cover, Rear Door Service Hole, NO.2 LH
67844-0E050 Cover, Rear Door Service Hole, NO.2 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67845D — Seal, Rear Door Front Outside, RH
67845-0E050 Seal, Rear Door Front Outside, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67846A — Seal, Rear Door Front Outside, LH
67846-0E050 Seal, Rear Door Front Outside, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67857B — Protector, Rear Door Panel, RH
67857-0E080 Protector, Rear Door Panel, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67858A — Protector, Rear Door Panel, LH
67858-0E050 Protector, Rear Door Panel, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67867D — Retainer, Rear Door Weatherstrip, RH
67867-52010 Retainer, Rear Door Weatherstrip, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67867J — Clip, Door Weatherstrip, RH(FOR REAR DOOR)
90467-08219 Clip, Door Weatherstrip, RH(FOR REAR DOOR)
2022-10 → —
AALH15,TALA1#,TALH17 —
67867K — Clip, Door Weatherstrip, LH(FOR REAR DOOR)
90467-08219 Clip, Door Weatherstrip, LH(FOR REAR DOOR)
2022-10 → —
AALH15,TALA1#,TALH17 —
67868D — Retainer, Rear Door Weatherstrip, LH
67867-30110 Retainer, Rear Door Weatherstrip, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67868N — Clip, Door Weatherstrip, RH
67869-0E040 Clip, Door Weatherstrip, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67869D — Clip, Door Weatherstrip
67869-26050 Clip, Door Weatherstrip
2022-10 → —
AALH15,TALA1#,TALH17 —
67869K — Clip, Door Weatherstrip, LH
67869-0E040 Clip, Door Weatherstrip, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67869L — Clip, Rear Door Weatherstrip
67869-26050 Clip, Rear Door Weatherstrip
2022-10 → —
AALH15,TALA1#,TALH17 —
67869N — Clip, Rear Door Weatherstrip, RH
67869-0E050 Clip, Rear Door Weatherstrip, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67869P — Clip, Rear Door Weatherstrip, LH
67869-0E060 Clip, Rear Door Weatherstrip, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67871 — Weatherstrip, Rear Door, RH
67871-0E130 Weatherstrip, Rear Door, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67872 — Weatherstrip, Rear Door, LH
67872-0E130 Weatherstrip, Rear Door, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67895C — Weatherstrip, Rear Door, NO.3 RH
67895-0E090 Weatherstrip, Rear Door, NO.3 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67896 — Weatherstrip, Rear Door, NO.3 LH
67896-0E090 Weatherstrip, Rear Door, NO.3 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67923H — Retainer, Door Corner Seal
67923-06300 Retainer, Door Corner Seal
2022-10 → —
AALH15,TALA1#,TALH17 —
68103 — Glass Sub-assy, Rear Door, RH
68103-0E200 Glass Sub-assy, Rear Door, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
68104 — Glass Sub-assy, Rear Door, LH
68104-0E200 Glass Sub-assy, Rear Door, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
68142C — Run, Rear Door Glass, RH
68142-0E130 Run, Rear Door Glass, RH
2022-10 → 2024-11 ended
AALH15,TALA1#,TALH17 —
68142-0E131 Run, Rear Door Glass, RH
2024-11 → —
AALH15,TALA1#,TALH17 —
68152C — Run, Rear Door Glass, LH
68152-0E130 Run, Rear Door Glass, LH
2022-10 → 2024-11 ended
AALH15,TALA1#,TALH17 —
68152-0E131 Run, Rear Door Glass, LH
2024-11 → —
AALH15,TALA1#,TALH17 —
68196B — Seal, Rear Door Belt, Front RH
68196-0E040 Seal, Rear Door Belt, Front RH
2022-10 → —
AALH15,TALA1#,TALH17 —
68197A — Seal, Rear Door Belt, Front LH
68197-0E040 Seal, Rear Door Belt, Front LH
2022-10 → —
AALH15,TALA1#,TALH17 —
68630D — Check Assy, Rear Door, RH
68630-0E140 Check Assy, Rear Door, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
68640A — Check Assy, Rear Door, LH
68640-0E120 Check Assy, Rear Door, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75953A — Tape, Black Out, Inner Rear RH
75953-0E120 Tape, Black Out, Inner Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75954A — Tape, Black Out, Inner Rear LH
75954-0E120 Tape, Black Out, Inner Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75977H — Stripe, Rear Door Outside, Lower RH
75977-0E050 Stripe, Rear Door Outside, Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75978H — Stripe, Rear Door Outside, Lower LH
75978-0E050 Stripe, Rear Door Outside, Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75987F — Stripe, Rear Door, Outside, RH
75987-0E060 Stripe, Rear Door, Outside, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75987-0E070 note Stripe, Rear Door, Outside, RH
2022-10 → —
AALH15,TALA1# —
75988E — Stripe, Rear Door, Outside LH
75988-0E060 Stripe, Rear Door, Outside LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75988-0E070 note Stripe, Rear Door, Outside LH
2022-10 → —
AALH15,TALA1# —
81496D — Guide, Rear Combination Lamp
81496-50010 Guide, Rear Combination Lamp
2022-10 → —
AALH15,TALA1#,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
