Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

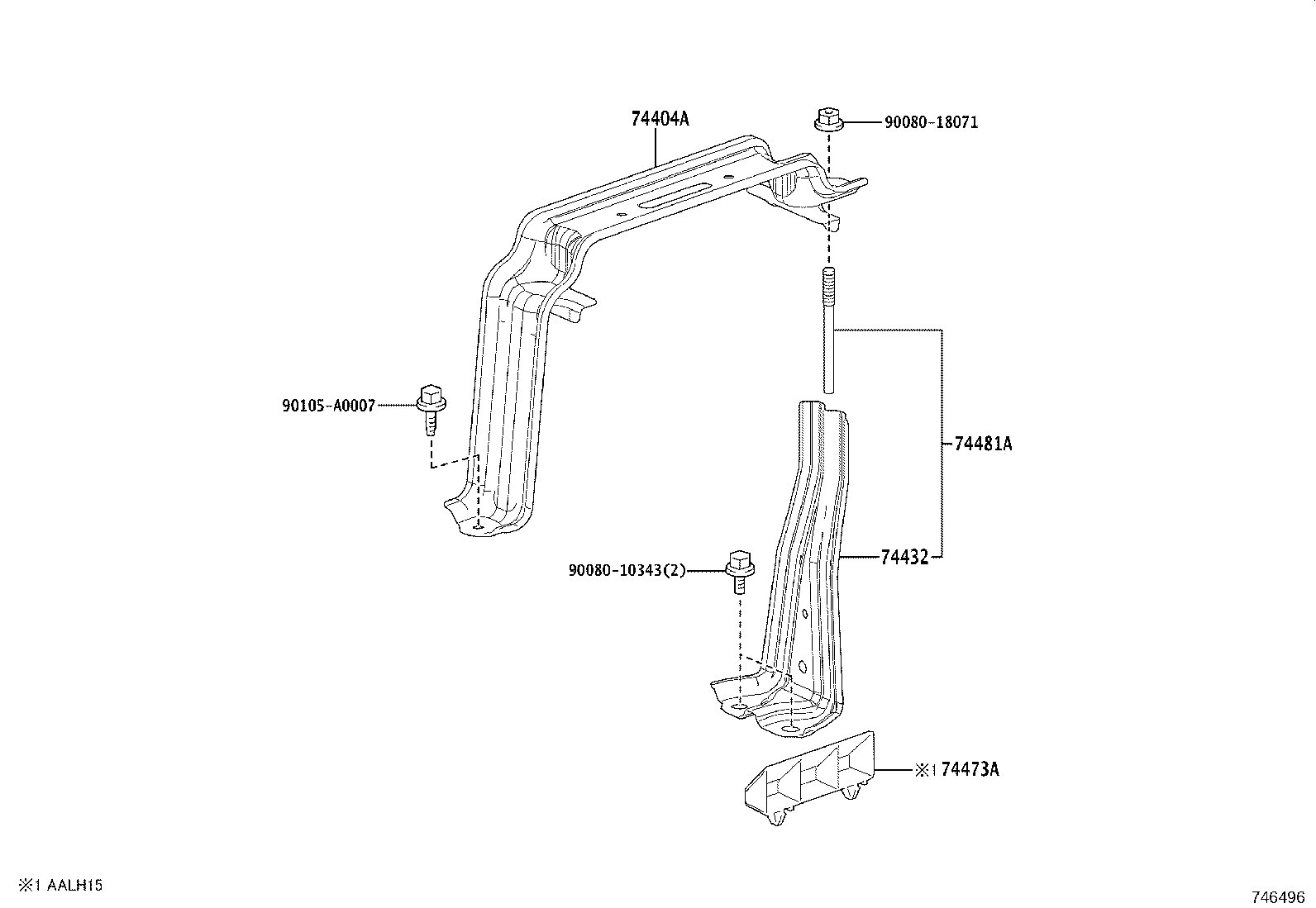

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-48200 |
Clamp Sub-assy, Battery
2022-10 → —
|
AALH15,TALH17 | — | |
| 74432 — Tray, Battery, NO.2 | ||||
| 74432-0E040 |
Tray, Battery, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| 74473A — Spacer, Battery, NO.1 | ||||
| 74473-0E020 |
Spacer, Battery, NO.1
2022-10 → —
|
AALH15 | — | |
| 74481A — Clamp, Battery | ||||
| 74440-0E040 |
Clamp, Battery
2022-10 → —
|
AALH15,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
