Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

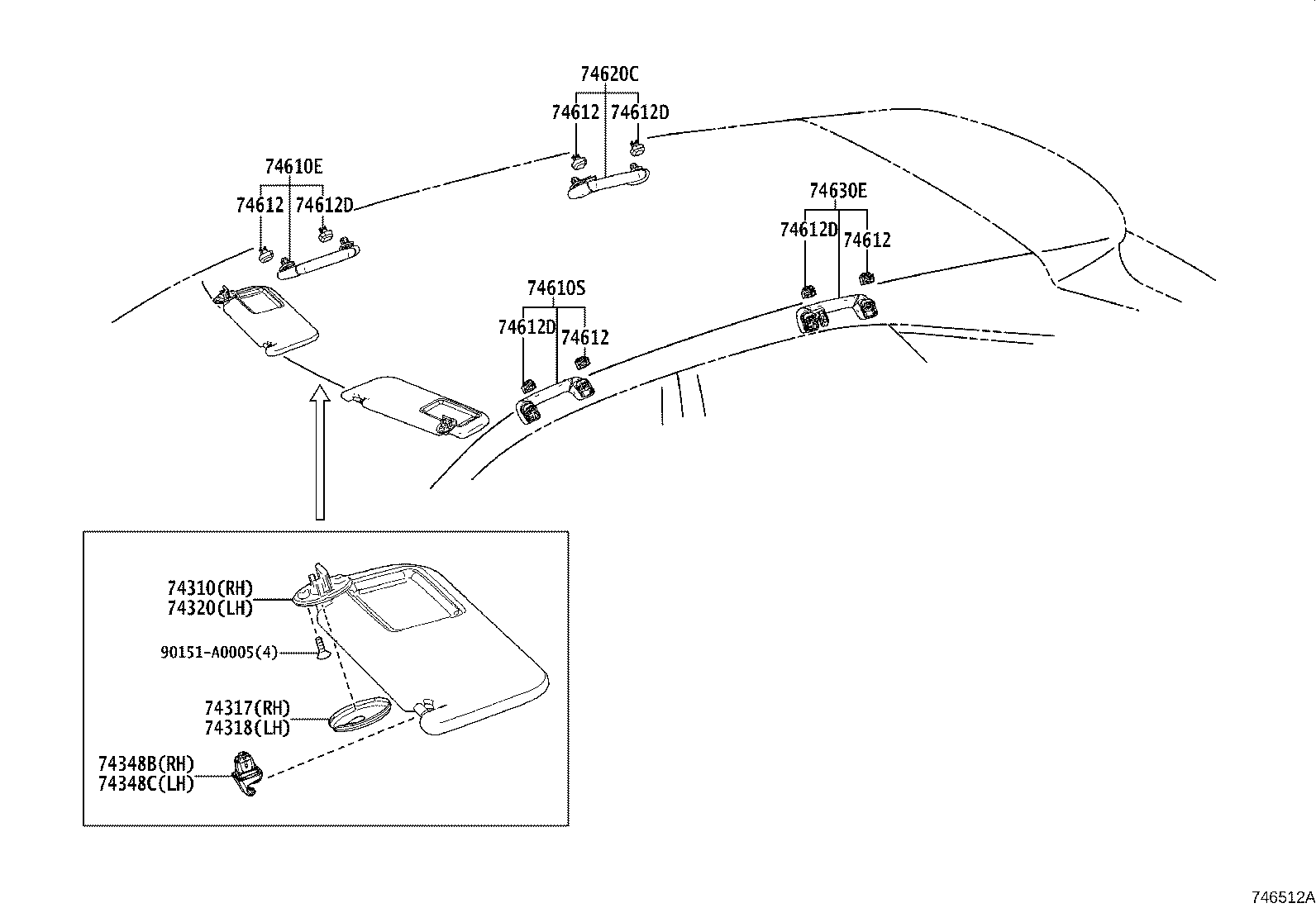

Exploded illustration 746512A 74610E — GRIP ASSY, ASSIST (8 parts) 74612D — COVER, ASSIST GRIP (5 parts) 74612 — COVER, ASSIST GRIP (5 parts) 74620C — GRIP ASSY, ASSIST, REAR RH (9 parts) 74612D — COVER, ASSIST GRIP (5 parts) 74612 — COVER, ASSIST GRIP (5 parts) 74610S — GRIP ASSY, ASSIST (8 parts) 74612 — COVER, ASSIST GRIP (5 parts) 74612D — COVER, ASSIST GRIP (5 parts) 74630E — GRIP ASSY, ASSIST, REAR LH (9 parts) 74612 — COVER, ASSIST GRIP (5 parts) 74612D — COVER, ASSIST GRIP (5 parts) 74348B — HOLDER, VISOR, RH (5 parts) 90151A0005 — not listed in this catalogue 74317 — COVER, VISOR BRACKET, RH (5 parts) 74318 — COVER, VISOR BRACKET, LH (5 parts) 74310 — VISOR ASSY, RH (5 parts) 74320 — VISOR ASSY, LH (5 parts) 74348C — HOLDER, VISOR, LH (5 parts)
746512A · 18 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-0E230-A0 note Visor Assy, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74310-0E230-A1 note Visor Assy, RH
2024-11 → —
AALH15,TALA1# —
74310-0E230-C0 note Visor Assy, RH
2022-10 → —
TALH17 —
74310-0E230-C0 note Visor Assy, RH
2022-10 → —
TALA15 —
74310-0E230-C0 note Visor Assy, RH
2022-10 → —
AALH15,TALA10 —
74317 — Cover, Visor Bracket, RH
74317-60020-01 note Cover, Visor Bracket, RH
2024-11 → —
AALH15,TALA1# —
74317-60020-A9 note Cover, Visor Bracket, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74317-60020-C2 note Cover, Visor Bracket, RH
2022-10 → —
TALH17 —
74317-60020-C2 note Cover, Visor Bracket, RH
2022-10 → —
TALA15 —
74317-60020-C2 note Cover, Visor Bracket, RH
2022-10 → —
AALH15,TALA10 —
74318 — Cover, Visor Bracket, LH
74317-60020-01 note Cover, Visor Bracket, LH
2024-11 → —
AALH15,TALA1# —
74317-60020-A9 note Cover, Visor Bracket, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74317-60020-C2 note Cover, Visor Bracket, LH
2022-10 → —
TALA15 —
74317-60020-C2 note Cover, Visor Bracket, LH
2022-10 → —
AALH15,TALA10 —
74317-60020-C2 note Cover, Visor Bracket, LH
2022-10 → —
TALH17 —
74320 — Visor Assy, LH
74320-0E230-A0 note Visor Assy, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74320-0E230-A1 note Visor Assy, LH
2024-11 → —
AALH15,TALA1# —
74320-0E230-C0 note Visor Assy, LH
2022-10 → —
TALH17 —
74320-0E230-C0 note Visor Assy, LH
2022-10 → —
TALA15 —
74320-0E230-C0 note Visor Assy, LH
2022-10 → —
AALH15,TALA10 —
74348B — Holder, Visor, RH
74348-04030-A0 note Holder, Visor, RH
2024-11 → —
AALH15,TALA1# —
74348-04030-A1 note Holder, Visor, RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74348-04030-C1 note Holder, Visor, RH
2022-10 → —
TALA15 —
74348-04030-C1 note Holder, Visor, RH
2022-10 → —
AALH15,TALA10 —
74348-04030-C1 note Holder, Visor, RH
2022-10 → —
TALH17 —
74348C — Holder, Visor, LH
74348-04030-A0 note Holder, Visor, LH
2024-11 → —
AALH15,TALA1# —
74348-04030-A1 note Holder, Visor, LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74348-04030-C1 note Holder, Visor, LH
2022-10 → —
TALH17 —
74348-04030-C1 note Holder, Visor, LH
2022-10 → —
TALA15 —
74348-04030-C1 note Holder, Visor, LH
2022-10 → —
AALH15,TALA10 —
74610E — Grip Assy, Assist
74610-33150-A0 note Grip Assy, Assist
2022-10 → 2024-11 ended
AALH15,TALA1# —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
TALH17 —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
TALA15 —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
AALH15,TALA10 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
TALH17 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
TALA15 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
AALH15,TALA10 —
74610-78040-A0 note Grip Assy, Assist
2024-11 → —
AALH15,TALA1# —
74610S — Grip Assy, Assist
74610-33150-A0 note Grip Assy, Assist
2022-10 → 2024-11 ended
AALH15,TALA1# —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
TALH17 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
AALH15,TALA10 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
TALA15 —
74610-33150-C0 note Grip Assy, Assist
2024-11 → —
TALH17 —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
AALH15,TALA10 —
74610-33150-C0 note Grip Assy, Assist
2022-10 → 2024-11 ended
TALA15 —
74610-78040-A0 note Grip Assy, Assist
2024-11 → —
AALH15,TALA1# —
74612 — Cover, Assist Grip
74611-33020-A0 note Cover, Assist Grip
2022-10 → 2024-11 ended
AALH15,TALA1# —
74611-33020-A2 note Cover, Assist Grip
2024-11 → —
AALH15,TALA1# —
74611-33020-C0 note Cover, Assist Grip
2022-10 → —
TALH17 —
74611-33020-C0 note Cover, Assist Grip
2022-10 → —
TALA15 —
74611-33020-C0 note Cover, Assist Grip
2022-10 → —
AALH15,TALA10 —
74612D — Cover, Assist Grip
74612-33030-A0 note Cover, Assist Grip
2022-10 → 2024-11 ended
AALH15,TALA1# —
74612-33030-A2 note Cover, Assist Grip
2024-11 → —
AALH15,TALA1# —
74612-33030-C0 note Cover, Assist Grip
2022-10 → —
TALH17 —
74612-33030-C0 note Cover, Assist Grip
2022-10 → —
TALA15 —
74612-33030-C0 note Cover, Assist Grip
2022-10 → —
AALH15,TALA10 —
74620C — Grip Assy, Assist, Rear RH
74610-33190-A0 note Grip Assy, Assist, Rear RH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2022-10 → 2024-11 ended
TALA15 —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2022-10 → 2024-11 ended
AALH15,TALA10 —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2024-11 → —
TALH17 —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2024-11 → —
TALA15 —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2024-11 → —
AALH15,TALA10 —
74610-33190-C0 note Grip Assy, Assist, Rear RH
2022-10 → 2024-11 ended
TALH17 —
74610-78050 note Grip Assy, Assist, Rear RH
2024-11 → —
TALH17 —
74610-78050-A0 note Grip Assy, Assist, Rear RH
2024-11 → —
AALH15,TALA1# —
74630E — Grip Assy, Assist, Rear LH
74610-33200-A0 note Grip Assy, Assist, Rear LH
2022-10 → 2024-11 ended
AALH15,TALA1# —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2022-10 → 2024-11 ended
TALH17 —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2022-10 → 2024-11 ended
TALA15 —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2022-10 → 2024-11 ended
AALH15,TALA10 —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2024-11 → —
TALH17 —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2024-11 → —
TALA15 —
74610-33200-C0 note Grip Assy, Assist, Rear LH
2024-11 → —
AALH15,TALA10 —
74610-78060 note Grip Assy, Assist, Rear LH
2024-11 → —
TALH17 —
74610-78060-A0 note Grip Assy, Assist, Rear LH
2024-11 → —
AALH15,TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
