Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

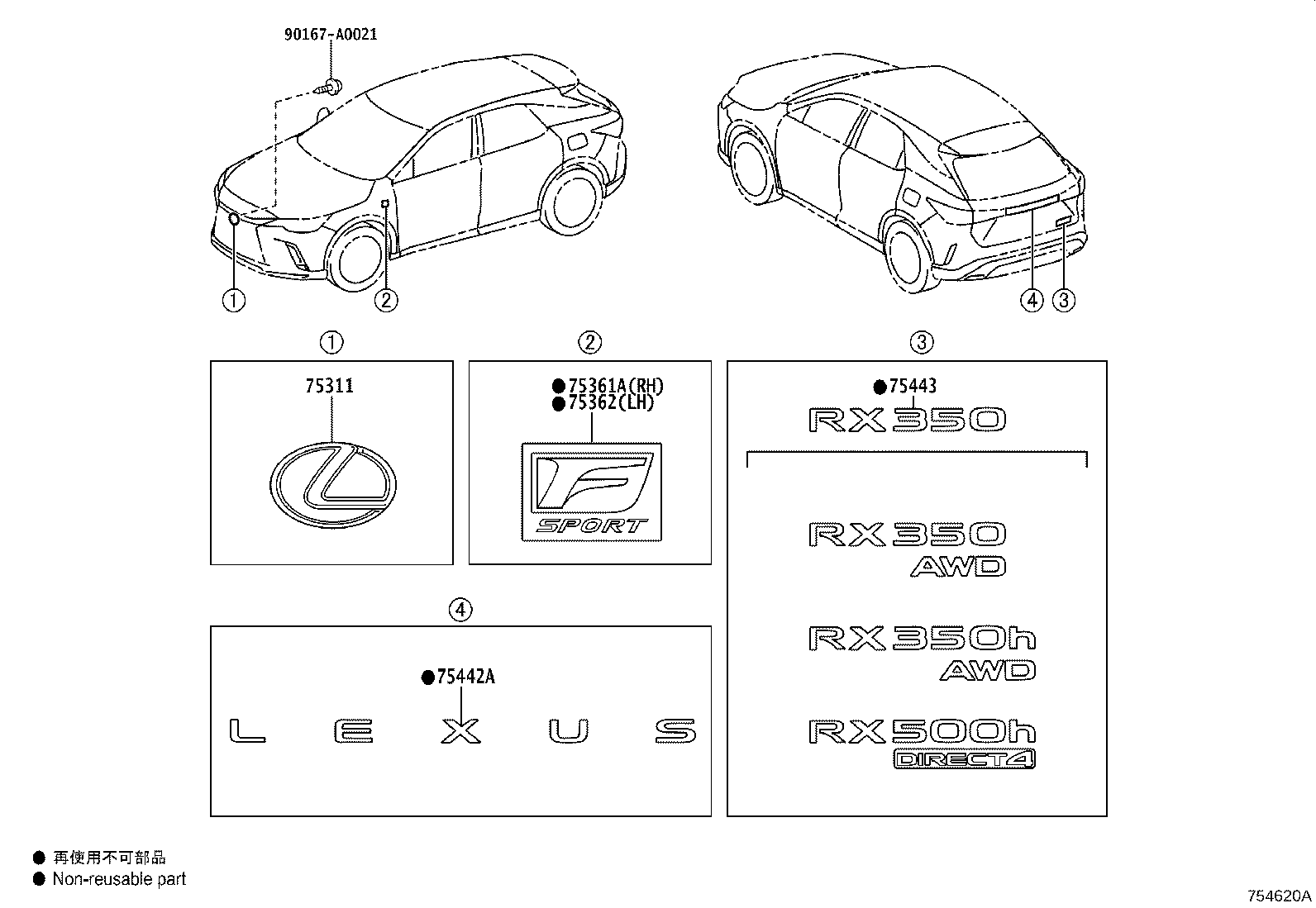

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75311 — Emblem, Radiator Grille (OR FRONT PANEL) | ||||
| 90975-02202 note |
Emblem, Radiator Grille (OR FRONT PANEL)
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 90975-A2021 |
Emblem, Radiator Grille (OR FRONT PANEL)
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 75361A — Plate, Front Fender Name, NO.1 | ||||
| 75361-48130 note |
Plate, Front Fender Name, NO.1
2022-10 → —
|
TALA15 | — | |
| 75361-48140 note |
Plate, Front Fender Name, NO.1
2022-10 → —
|
TALH17 | — | |
| 75444-48120 note |
Plate, Front Fender Name, NO.1
2023-09 → —
|
AALH15,TALA1# | — | |
| 75362 — Plate, Front Fender Name, NO.2 | ||||
| 75362-48090 note |
Plate, Front Fender Name, NO.2
2022-10 → —
|
TALA15 | — | |
| 75362-48100 note |
Plate, Front Fender Name, NO.2
2022-10 → —
|
TALH17 | — | |
| 75444-48130 note |
Plate, Front Fender Name, NO.2
2023-09 → —
|
AALH15,TALA1# | — | |
| 75442A — Plate, Back Door Name, NO.2 | ||||
| 75442-48190 note |
Plate, Back Door Name, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 75443 — Plate, Back Door Name, NO.3 | ||||
| 75443-48320 note |
Plate, Back Door Name, NO.3
2022-10 → —
|
TALA10 | — | |
| 75443-48340 note |
Plate, Back Door Name, NO.3
2022-10 → —
|
TALH17 | — | |
| 75443-48370 note |
Plate, Back Door Name, NO.3
2022-10 → —
|
AALH15 | — | |
| 75443-48400 note |
Plate, Back Door Name, NO.3
2022-10 → —
|
TALA15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
