Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

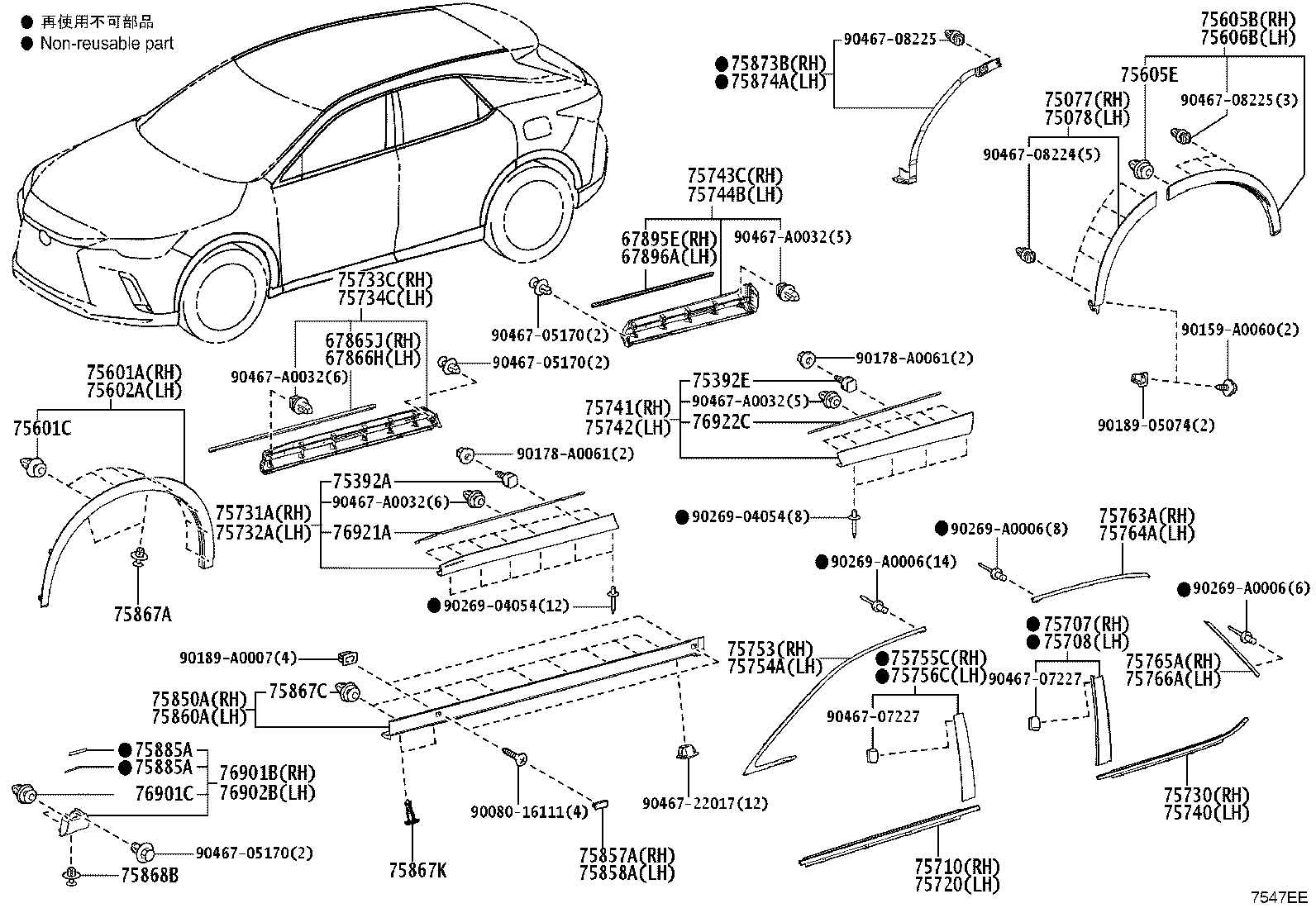

Exploded illustration 7547EE 75710 — MOULDING ASSY, FRONT DOOR BELT, RH (2 parts) 75720 — MOULDING ASSY, FRONT DOOR BELT, LH (2 parts) 75730 — MOULDING ASSY, REAR DOOR BELT, RH (2 parts) 75740 — MOULDING ASSY, REAR DOOR BELT, LH (2 parts) 75873B — MOULDING, QUARTER WHEEL OPENING, RH (1 parts) 75874A — MOULDING, QUARTER WHEEL OPENING, LH (1 parts) 75850A — MOULDING ASSY, BODY ROCKER PANEL, RH (1 parts) 75860A — MOULDING ASSY, BODY ROCKER PANEL, LH (1 parts) 75707 — MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH (1 parts) 75708 — MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH (1 parts) 75765A — MOULDING, REAR DOOR WINDOW FRAME, REAR RH (1 parts) 75766A — MOULDING, REAR DOOR WINDOW FRAME, REAR LH (1 parts) 75763A — MOULDING, REAR DOOR WINDOW FRAME, UPPER RH (2 parts) 75764A — MOULDING, REAR DOOR WINDOW FRAME, UPPER LH (2 parts) 75755C — MOULDING, FRONT DOOR WINDOW FRAME, REAR RH (1 parts) 75756C — MOULDING, FRONT DOOR WINDOW FRAME, REAR LH (1 parts) 75753 — MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH (2 parts) 75754A — MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH (2 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (1 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (1 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (1 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (1 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (1 parts) 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (1 parts) 75867C — CLIP, ROCKER PANEL MOULDING (1 parts) 9046708225 — not listed in this catalogue 9046708225 — not listed in this catalogue 90159A0060 — not listed in this catalogue 9008016111 — not listed in this catalogue 90189A0007 — not listed in this catalogue 9018905074 — not listed in this catalogue 90269A0006 — not listed in this catalogue 90269A0006 — not listed in this catalogue 90269A0006 — not listed in this catalogue 9046707227 — not listed in this catalogue 9046707227 — not listed in this catalogue 75601C — CLIP, FRONT FENDER MOULDING (1 parts) 75867A — CLIP, ROCKER PANEL MOULDING (1 parts) 76901C — CLIP, FENDER PANEL MUDGUARD (1 parts) 75885A — TAPE, MOULDING, NO.6 (1 parts) 75885A — TAPE, MOULDING, NO.6 (1 parts) 76901B — MUDGUARD SUB-ASSY, FENDER PANEL, RH (3 parts) 76902B — MUDGUARD SUB-ASSY, FENDER PANEL, LH (3 parts) 9046708224 — not listed in this catalogue 75868B — CLIP, ROCKER PANEL MOULDING, NO.2 (1 parts) 75605E — CLIP, QUARTER OUTSIDE MOULDING (1 parts) 75857A — COVER, ROCKER PANEL MOULDING, RH (1 parts) 75858A — COVER, ROCKER PANEL MOULDING, LH (1 parts) 75867K — CLIP, ROCKER PANEL MOULDING (1 parts) 9046722017 — not listed in this catalogue 9046705170 — not listed in this catalogue 90467A0032 — not listed in this catalogue 9046705170 — not listed in this catalogue 75733C — MOULDING, FRONT DOOR, OUTSIDE REAR RH (1 parts) 75734C — MOULDING, FRONT DOOR, OUTSIDE REAR LH (1 parts) 67865J — WEATHERSTRIP, FRONT DOOR, NO.3 RH (1 parts) 67866H — WEATHERSTRIP, FRONT DOOR, NO.3 LH (1 parts) 75743C — MOULDING, REAR DOOR OUTSIDE, LWR RR RH (2 parts) 75744B — MOULDING, REAR DOOR OUTSIDE, LWR RR LH (1 parts) 90467A0032 — not listed in this catalogue 9046705170 — not listed in this catalogue 67895E — WEATHERSTRIP, REAR DOOR, NO.3 RH (1 parts) 67896A — WEATHERSTRIP, REAR DOOR, NO.3 LH (1 parts) 90178A0061 — not listed in this catalogue 9026904054 — not listed in this catalogue 90467A0032 — not listed in this catalogue 75731A — MOULDING, FRONT DOOR, OUTSIDE RH (3 parts) 75732A — MOULDING, FRONT DOOR, OUTSIDE LH (3 parts) 75392A — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 76921A — PROTECTOR, SIDE MUDGUARD, NO.1 (1 parts) 90467A0032 — not listed in this catalogue 75741 — MOULDING, REAR DOOR, OUTSIDE RH (3 parts) 75742 — MOULDING, REAR DOOR, OUTSIDE LH (3 parts) 75392E — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 76922C — PROTECTOR, SIDE MUDGUARD, NO.2 (1 parts) 90178A0061 — not listed in this catalogue 9026904054 — not listed in this catalogue
7547EE · 53 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
67865J — Weatherstrip, Front Door, NO.3 RH
67865-0E070 Weatherstrip, Front Door, NO.3 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67866H — Weatherstrip, Front Door, NO.3 LH
67865-0E070 Weatherstrip, Front Door, NO.3 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
67895E — Weatherstrip, Rear Door, NO.3 RH
67895-0E100 Weatherstrip, Rear Door, NO.3 RH
2022-10 → —
AALH15,TALA1#,TALH17 —
67896A — Weatherstrip, Rear Door, NO.3 LH
67895-0E100 Weatherstrip, Rear Door, NO.3 LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-0E900 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-0E900 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75392A — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
75392E — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2022-10 → —
AALH15,TALA1#,TALH17 —
75601A — Moulding Sub-assy, Front Fender, RH
75601-0E904 note Moulding Sub-assy, Front Fender, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75601C — Clip, Front Fender Moulding
75867-68010 Clip, Front Fender Moulding
2022-10 → —
AALH15,TALA1#,TALH17 —
75602A — Moulding Sub-assy, Front Fender, LH
75602-0E904 note Moulding Sub-assy, Front Fender, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-0E900 note Moulding Sub-assy, Quarter Outside, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75605E — Clip, Quarter Outside Moulding
62217-13010 Clip, Quarter Outside Moulding
2022-10 → —
AALH15,TALA1#,TALH17 —
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-0E900 note Moulding Sub-assy, Quarter Outside, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75707 — Moulding Sub-assy, Rear Door Window Frame, RH
75707-48040 Moulding Sub-assy, Rear Door Window Frame, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75708 — Moulding Sub-assy, Rear Door Window Frame, LH
75708-48040 Moulding Sub-assy, Rear Door Window Frame, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75710 — Moulding Assy, Front Door Belt, RH
75710-0E170 Moulding Assy, Front Door Belt, RH
2022-10 → —
AALH15,TALA1# —
75710-48120 Moulding Assy, Front Door Belt, RH
2022-10 → —
TALH17 —
75720 — Moulding Assy, Front Door Belt, LH
75720-0E170 Moulding Assy, Front Door Belt, LH
2022-10 → —
AALH15,TALA1# —
75720-48120 Moulding Assy, Front Door Belt, LH
2022-10 → —
TALH17 —
75730 — Moulding Assy, Rear Door Belt, RH
75730-0E170 Moulding Assy, Rear Door Belt, RH
2022-10 → —
AALH15,TALA1# —
75730-48130 Moulding Assy, Rear Door Belt, RH
2022-10 → —
TALH17 —
75731A — Moulding, Front Door, Outside RH
75731-0E170 note Moulding, Front Door, Outside RH
2022-10 → —
AALH15,TALA1# —
75731-0E907 note Moulding, Front Door, Outside RH
2022-10 → —
TALH17 —
75731-WY030 note Moulding, Front Door, Outside RH
2024-11 → —
TALH17 —
75732A — Moulding, Front Door, Outside LH
75732-0E170 note Moulding, Front Door, Outside LH
2022-10 → —
AALH15,TALA1# —
75732-0E907 note Moulding, Front Door, Outside LH
2022-10 → —
TALH17 —
75732-WY020 note Moulding, Front Door, Outside LH
2024-11 → —
TALH17 —
75733C — Moulding, Front Door, Outside Rear RH
75733-0E080 Moulding, Front Door, Outside Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75734C — Moulding, Front Door, Outside Rear LH
75734-0E070 Moulding, Front Door, Outside Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75740 — Moulding Assy, Rear Door Belt, LH
75740-0E170 Moulding Assy, Rear Door Belt, LH
2022-10 → —
AALH15,TALA1# —
75740-48130 Moulding Assy, Rear Door Belt, LH
2022-10 → —
TALH17 —
75741 — Moulding, Rear Door, Outside RH
75741-0E170 note Moulding, Rear Door, Outside RH
2022-10 → —
AALH15,TALA1# —
75741-0E907 note Moulding, Rear Door, Outside RH
2022-10 → —
TALH17 —
75741-WY030 note Moulding, Rear Door, Outside RH
2024-11 → —
TALH17 —
75742 — Moulding, Rear Door, Outside LH
75742-0E170 note Moulding, Rear Door, Outside LH
2022-10 → —
AALH15,TALA1# —
75742-0E907 note Moulding, Rear Door, Outside LH
2022-10 → —
TALH17 —
75742-WY030 note Moulding, Rear Door, Outside LH
2024-11 → —
TALH17 —
75743C — Moulding, Rear Door Outside, Lwr RR RH
75743-0E100 Moulding, Rear Door Outside, Lwr RR RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75743-0E100 note Moulding, Rear Door Outside, Lwr RR RH
2024-11 → —
TALH17 —
75744B — Moulding, Rear Door Outside, Lwr RR LH
75744-0E100 Moulding, Rear Door Outside, Lwr RR LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75753 — Moulding, Front Door Window Frame, Upper RH
75753-0E090 Moulding, Front Door Window Frame, Upper RH
2022-10 → —
AALH15,TALA1# —
75753-48040 Moulding, Front Door Window Frame, Upper RH
2022-10 → —
TALH17 —
75754A — Moulding, Front Door Window Frame, Upper LH
75754-0E090 Moulding, Front Door Window Frame, Upper LH
2022-10 → —
AALH15,TALA1# —
75754-48040 Moulding, Front Door Window Frame, Upper LH
2022-10 → —
TALH17 —
75755C — Moulding, Front Door Window Frame, Rear RH
75755-48070 note Moulding, Front Door Window Frame, Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75756C — Moulding, Front Door Window Frame, Rear LH
75756-48070 note Moulding, Front Door Window Frame, Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75763A — Moulding, Rear Door Window Frame, Upper RH
75763-0E110 Moulding, Rear Door Window Frame, Upper RH
2022-10 → —
AALH15,TALA1# —
75763-48060 Moulding, Rear Door Window Frame, Upper RH
2022-10 → —
TALH17 —
75764A — Moulding, Rear Door Window Frame, Upper LH
75764-0E110 Moulding, Rear Door Window Frame, Upper LH
2022-10 → —
AALH15,TALA1# —
75764-48060 Moulding, Rear Door Window Frame, Upper LH
2022-10 → —
TALH17 —
75765A — Moulding, Rear Door Window Frame, Rear RH
75765-0E100 Moulding, Rear Door Window Frame, Rear RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75766A — Moulding, Rear Door Window Frame, Rear LH
75766-0E100 Moulding, Rear Door Window Frame, Rear LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75850A — Moulding Assy, Body Rocker Panel, RH
75850-0E100 Moulding Assy, Body Rocker Panel, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75857A — Cover, Rocker Panel Moulding, RH
75857-0E020 Cover, Rocker Panel Moulding, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75858A — Cover, Rocker Panel Moulding, LH
75857-0E020 Cover, Rocker Panel Moulding, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75860A — Moulding Assy, Body Rocker Panel, LH
75860-0E100 Moulding Assy, Body Rocker Panel, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75867A — Clip, Rocker Panel Moulding
75867-06030 Clip, Rocker Panel Moulding
2022-10 → —
AALH15,TALA1#,TALH17 —
75867C — Clip, Rocker Panel Moulding
75867-30130 Clip, Rocker Panel Moulding
2022-10 → —
AALH15,TALA1#,TALH17 —
75867K — Clip, Rocker Panel Moulding
75867-30120 Clip, Rocker Panel Moulding
2022-10 → —
AALH15,TALA1#,TALH17 —
75868B — Clip, Rocker Panel Moulding, NO.2
75867-33050 note Clip, Rocker Panel Moulding, NO.2
2024-11 → —
TALH17 —
75873B — Moulding, Quarter Wheel Opening, RH
75873-0E080 Moulding, Quarter Wheel Opening, RH
2022-10 → —
AALH15,TALA1#,TALH17 —
75874A — Moulding, Quarter Wheel Opening, LH
75874-0E080 Moulding, Quarter Wheel Opening, LH
2022-10 → —
AALH15,TALA1#,TALH17 —
75885A — Tape, Moulding, NO.6
75885-0E010 Tape, Moulding, NO.6
2022-10 → —
AALH15,TALA1#,TALH17 —
76901B — Mudguard Sub-assy, Fender Panel, RH
76901-0E030 Mudguard Sub-assy, Fender Panel, RH
2022-10 → —
AALH15,TALA1# —
76901-0E900 Mudguard Sub-assy, Fender Panel, RH
2022-10 → —
TALH17 —
76901-WY010 note Mudguard Sub-assy, Fender Panel, RH
2024-11 → —
TALH17 —
76901C — Clip, Fender Panel Mudguard
90467-10167 Clip, Fender Panel Mudguard
2022-10 → —
AALH15,TALA1#,TALH17 —
76902B — Mudguard Sub-assy, Fender Panel, LH
76902-0E030 Mudguard Sub-assy, Fender Panel, LH
2022-10 → —
AALH15,TALA1# —
76902-0E900 Mudguard Sub-assy, Fender Panel, LH
2022-10 → —
TALH17 —
76902-WY010 note Mudguard Sub-assy, Fender Panel, LH
2024-11 → —
TALH17 —
76921A — Protector, Side Mudguard, NO.1
76921-WY020 note Protector, Side Mudguard, NO.1
2024-11 → —
TALH17 —
76922C — Protector, Side Mudguard, NO.2
76921-WY030 note Protector, Side Mudguard, NO.2
2024-11 → —
TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
