Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

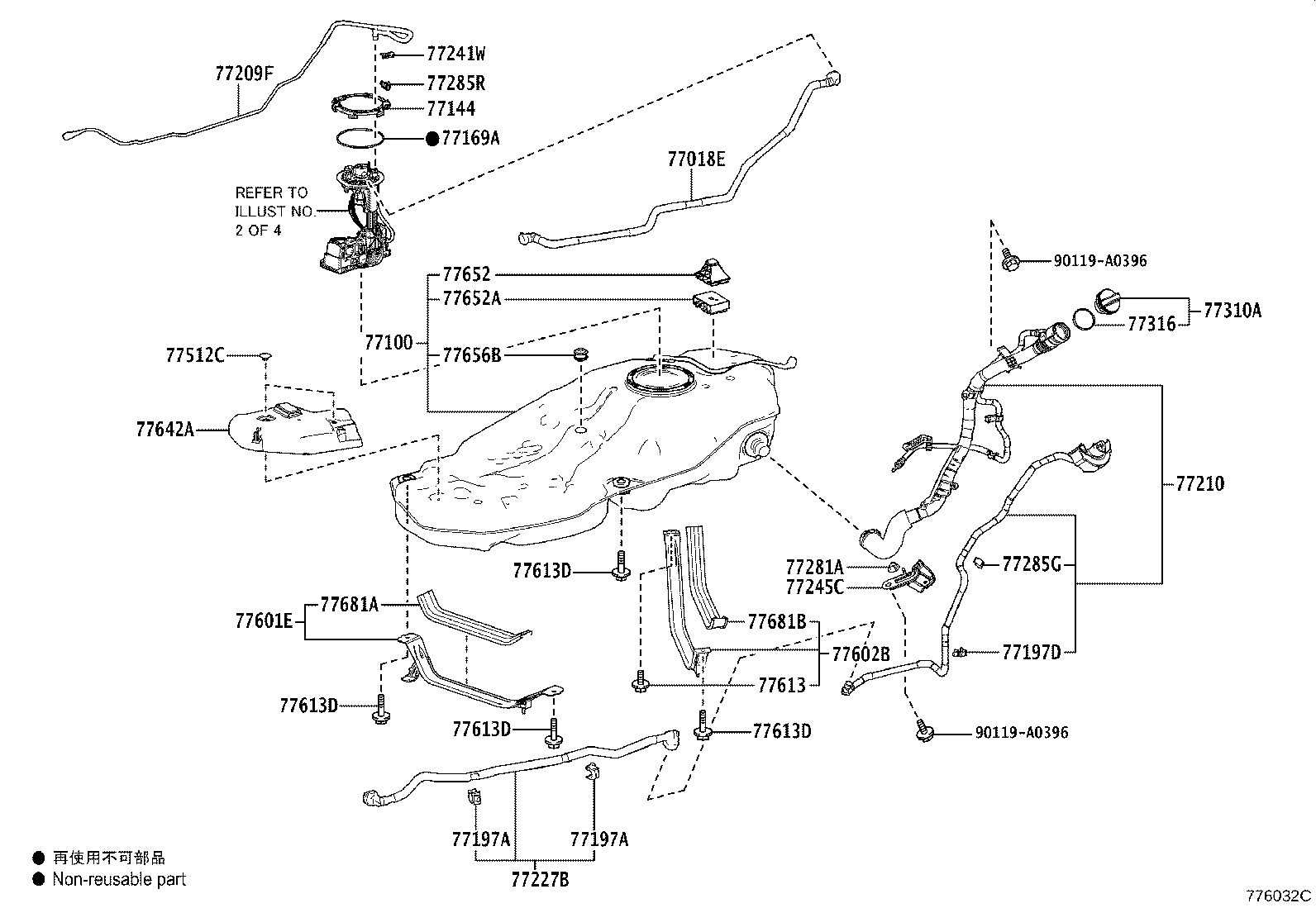

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77018E — Tube Sub-assy, Fuel Tank Evaporation Vent | ||||
| 77018-0E080 |
Tube Sub-assy, Fuel Tank Evaporation Vent
2022-10 → —
|
AALH15,TALH17 | — | |
| 77018-0E140 |
Tube Sub-assy, Fuel Tank Evaporation Vent
2022-10 → —
|
TALA1# | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-0E200 |
Tank Assy, Fuel
2022-10 → —
|
TALA1# | — | |
| 77001-0E270 |
Tank Assy, Fuel
2022-10 → —
|
AALH15,TALH17 | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-06040 |
Retainer, Fuel Pump Gauge
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-0R030 |
Gasket, Fuel Suction Tube Set
2022-10 → 2023-08
ended
|
TALA1# | — | |
| 77169-0R030 |
Gasket, Fuel Suction Tube Set
2022-10 → —
|
AALH15,TALH17 | — | |
| 77169-F4050 |
Gasket, Fuel Suction Tube Set
2023-08 → —
|
TALA1# | — | |
| 77197A — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-42010 |
Clamp, Evaporation Vent Tube, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77197D — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-33080 |
Clamp, Evaporation Vent Tube, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-0E140 |
Tube Sub-assy, Fuel Tank Main
2022-10 → —
|
AALH15,TALH17 | — | |
| 77209-0E200 |
Tube Sub-assy, Fuel Tank Main
2022-10 → —
|
TALA1# | — | |
| 77210 — Pipe Assy, Fuel Tank Filler | ||||
| 77210-0E230 |
Pipe Assy, Fuel Tank Filler
2022-10 → —
|
TALA1# | — | |
| 77210-0E240 |
Pipe Assy, Fuel Tank Filler
2022-10 → —
|
AALH15,TALH17 | — | |
| 77227B — Tube, Fuel Tank Breather, NO.7 | ||||
| 77227-0E130 |
Tube, Fuel Tank Breather, NO.7
2022-10 → —
|
TALA1# | — | |
| 77227-0E140 |
Tube, Fuel Tank Breather, NO.7
2022-10 → —
|
AALH15,TALH17 | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-06020 |
Clip, Tube Joint
2022-10 → —
|
TALA1# | — | |
| 77241-06020 |
Clip, Tube Joint
2022-10 → —
|
AALH15,TALH17 | — | |
| 77245C — Support, Fuel Tank | ||||
| 77245-48030 |
Support, Fuel Tank
2022-10 → —
|
TALA1# | — | |
| 77281A — Clamp, Fuel Filler Pipe | ||||
| 77281-48220 |
Clamp, Fuel Filler Pipe
2022-10 → —
|
TALA1# | — | |
| 77285G — Clamp, Fuel Tube, NO.1 | ||||
| 77285-06510 |
Clamp, Fuel Tube, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77285R — Clamp, Fuel Tube, NO.1 | ||||
| 77285-06240 |
Clamp, Fuel Tube, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-06090 |
Cap Assy, Fuel Tank
2022-10 → —
|
AALH15,TALH17 | — | |
| 77300-07040 |
Cap Assy, Fuel Tank
2022-10 → —
|
TALA1# | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-06090 |
Gasket, Fuel Tank Cap
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77512C — Bracket, Fuel Tank | ||||
| 77512-0E060 |
Bracket, Fuel Tank
2022-10 → —
|
TALA1# | — | |
| 77601E — Band Sub-assy, Fuel Tank | ||||
| 77601-0E080 |
Band Sub-assy, Fuel Tank
2022-10 → —
|
AALH15,TALH17 | — | |
| 77601-0E140 |
Band Sub-assy, Fuel Tank
2022-10 → —
|
TALA1# | — | |
| 77602B — Band Sub-assy, Fuel Tank, NO.1 LH | ||||
| 77602-0E151 |
Band Sub-assy, Fuel Tank, NO.1 LH
2022-10 → 2024-05
ended
|
TALA1# | — | |
| 77602-0E152 |
Band Sub-assy, Fuel Tank, NO.1 LH
2024-05 → —
|
TALA1# | — | |
| 77602-0E161 |
Band Sub-assy, Fuel Tank, NO.1 LH
2022-10 → 2024-05
ended
|
AALH15,TALH17 | — | |
| 77602-0E162 |
Band Sub-assy, Fuel Tank, NO.1 LH
2024-05 → —
|
AALH15,TALH17 | — | |
| 77613 — Bolt, Fuel Tank Band Set | ||||
| 90119-A0509 |
Bolt, Fuel Tank Band Set
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77613D — Bolt, Fuel Tank Band Set, NO.2 | ||||
| 90119-A0430 |
Bolt, Fuel Tank Band Set, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77642A — Protector, Fuel Tank, NO.2 | ||||
| 77642-0E100 |
Protector, Fuel Tank, NO.2
2022-10 → —
|
TALA1# | — | |
| 77642-0E130 |
Protector, Fuel Tank, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| 77652 — Cushion, Fuel Tank, NO.1 | ||||
| 77651-06060 |
Cushion, Fuel Tank, NO.1
2022-10 → —
|
TALA1# | — | |
| 77652A — Cushion, Fuel Tank, NO.2 | ||||
| 77652-0E090 |
Cushion, Fuel Tank, NO.2
2022-10 → —
|
TALA1# | — | |
| 77652-0E100 |
Cushion, Fuel Tank, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| 77656B — Cushion, Fuel Tank, NO.6 | ||||
| 77656-06030 |
Cushion, Fuel Tank, NO.6
2022-10 → —
|
TALA1# | — | |
| 77656-06030 |
Cushion, Fuel Tank, NO.6
2022-10 → —
|
AALH15,TALH17 | — | |
| 77681A — Seat, Fuel Tank Band | ||||
| 77681-0E120 |
Seat, Fuel Tank Band
2022-10 → —
|
TALA1# | — | |
| 77681-0R100 |
Seat, Fuel Tank Band
2022-10 → —
|
AALH15,TALH17 | — | |
| 77681B — Seat, Fuel Tank Band | ||||
| 77681-0R100 |
Seat, Fuel Tank Band
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
