Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

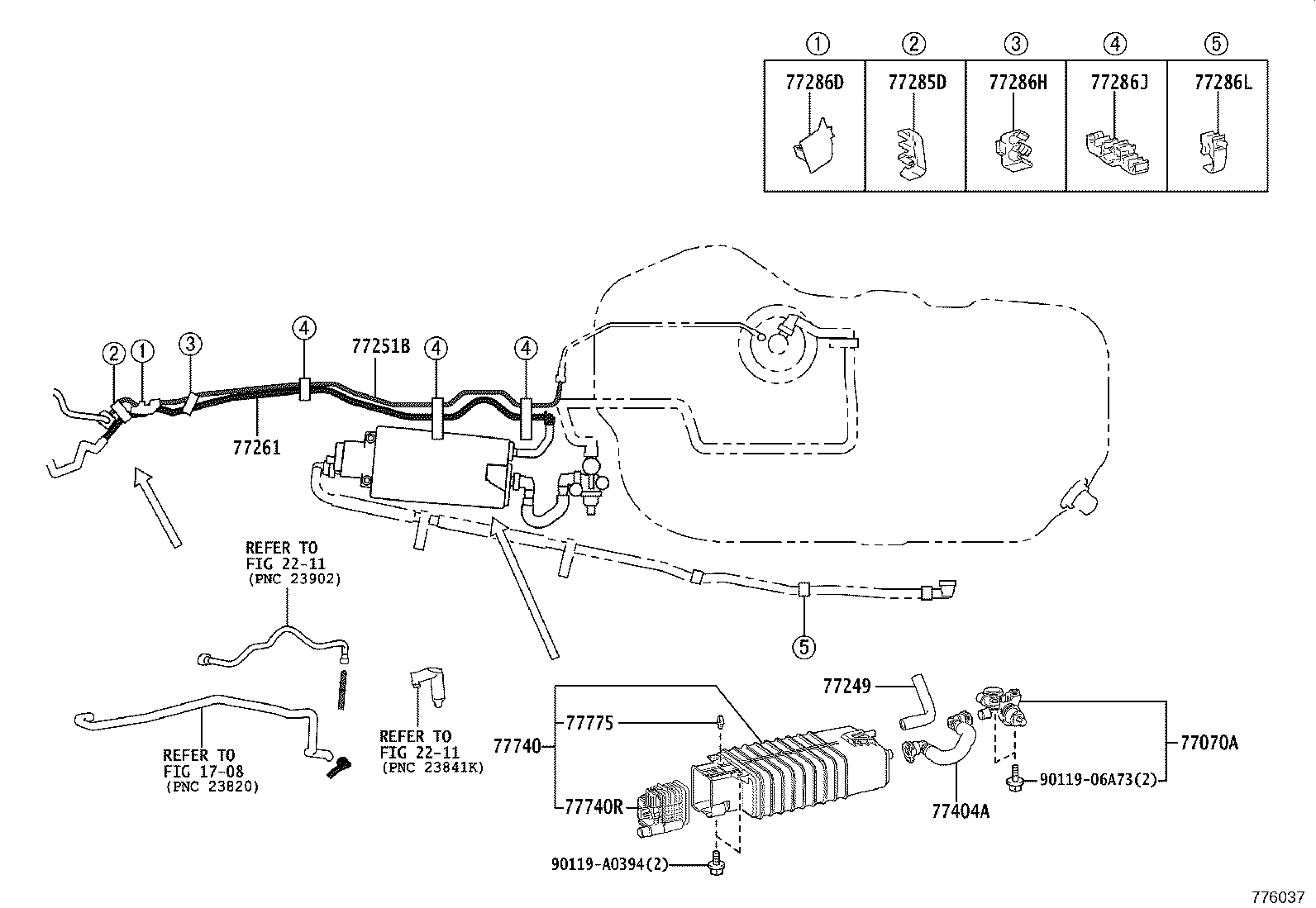

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77070A — Valve Assy, Close Tank | ||||
| 77070-48010 |
Valve Assy, Close Tank
2022-10 → 2022-11
ended
|
AALH15,TALH17 | — | |
| 77070-48011 |
Valve Assy, Close Tank
2022-11 → —
|
AALH15,TALH17 | — | |
| 77249 — Hose, Fuel Emission | ||||
| 77249-0R050 |
Hose, Fuel Emission
2022-10 → —
|
TALA1# | — | |
| 77249-0R060 |
Hose, Fuel Emission
2022-10 → —
|
AALH15,TALH17 | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-0E220 |
Tube, Fuel Main
2022-10 → —
|
TALA1# | — | |
| 77251-0E230 |
Tube, Fuel Main
2022-10 → —
|
TALH17 | — | |
| 77251-0E240 |
Tube, Fuel Main
2022-10 → —
|
AALH15 | — | |
| 77261 — Tube Sub-assy, Fuel Emission | ||||
| 77261-0E290 |
Tube Sub-assy, Fuel Emission
2022-10 → —
|
TALA1# | — | |
| 77261-0E300 |
Tube Sub-assy, Fuel Emission
2022-10 → —
|
AALH15,TALH17 | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-0E240 |
Clamp, Fuel Tube, NO.1
2022-10 → —
|
AALH15 | — | |
| 77285-78020 |
Clamp, Fuel Tube, NO.1
2022-10 → —
|
TALA1#,TALH17 | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77285-0E310 |
Clamp, Fuel Tube, NO.2
2022-10 → —
|
TALH17 | — | |
| 77285-78030 |
Clamp, Fuel Tube, NO.2
2022-10 → —
|
TALA1# | — | |
| 77286H — Clamp, Fuel Tube, NO.3 | ||||
| 77285-78040 |
Clamp, Fuel Tube, NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77286J — Clamp, Fuel Tube, NO.4 | ||||
| 77285-0R040 |
Clamp, Fuel Tube, NO.4
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77286L — Clamp, Fuel Tube, NO.5 | ||||
| 77285-0R090 |
Clamp, Fuel Tube, NO.5
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77404A — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-0E100 |
Hose Sub-assy, Fuel Tank Vent
2022-10 → —
|
AALH15,TALH17 | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-06240 |
Canister Assy, Charcoal
2022-10 → —
|
AALH15,TALH17 | — | |
| 77740-0E100 |
Canister Assy, Charcoal
2022-10 → —
|
TALA1# | — | |
| 77740R — Pump Sub-assy, Leak Detection | ||||
| 90910-AF006 |
Pump Sub-assy, Leak Detection
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 77775 — Guide, Charcoal Canister Outlet | ||||
| 77775-33010 |
Guide, Charcoal Canister Outlet
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
