Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

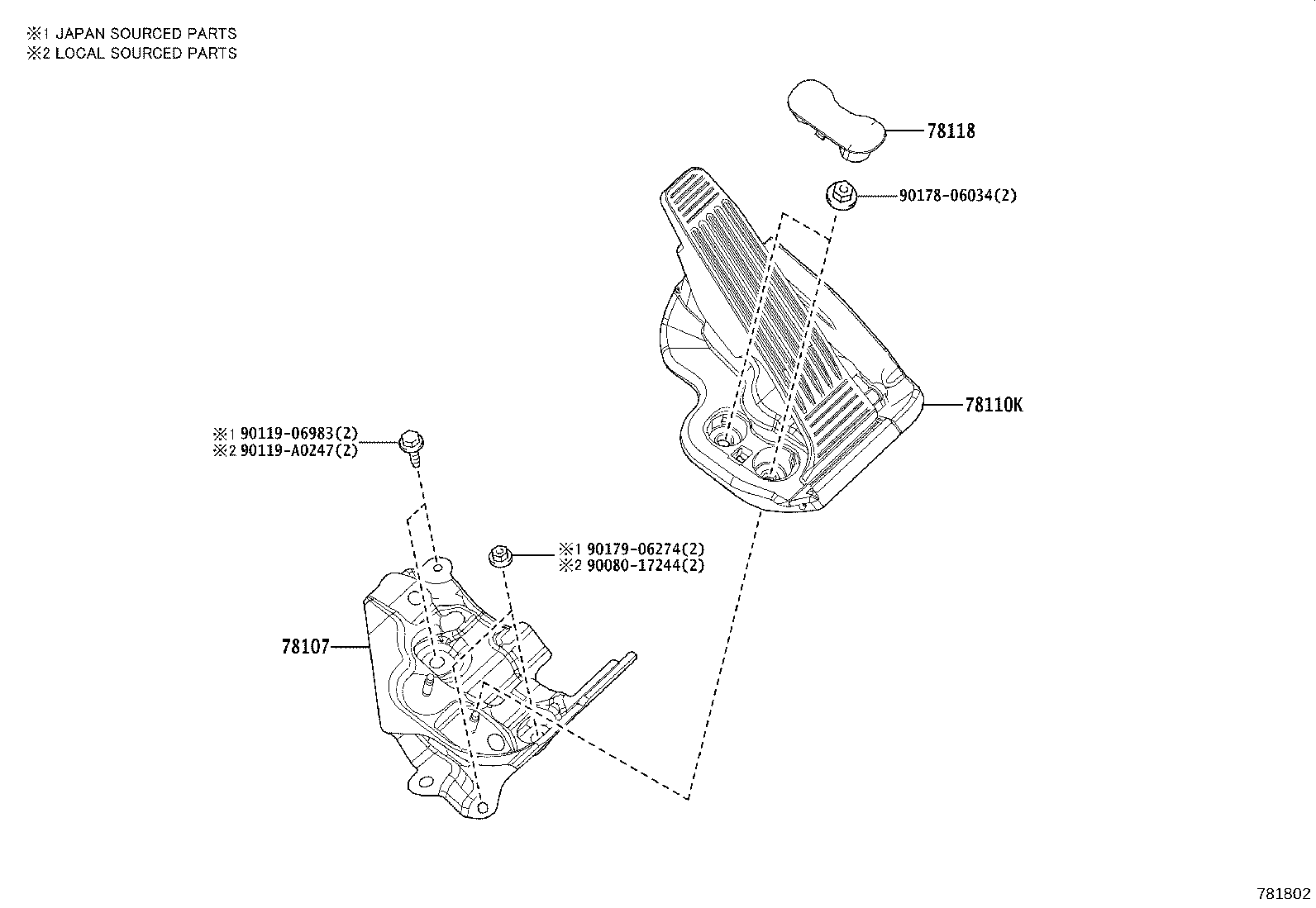

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78107 — Bracket Sub-assy, Accelerator Torque Rod | ||||
| 78108-0E010 |
Bracket Sub-assy, Accelerator Torque Rod
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-0E050 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-10 → —
|
AALH15 | — | |
| 78110-0E070 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-10 → —
|
TALA1# | — | |
| 78110-0E080 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-10 → —
|
TALH17 | — | |
| 78110-0E080 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-10 → —
|
TALA15 | — | |
| 78118 — Pad, Accelerator Pedal | ||||
| 78117-0R010 |
Pad, Accelerator Pedal
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
