Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

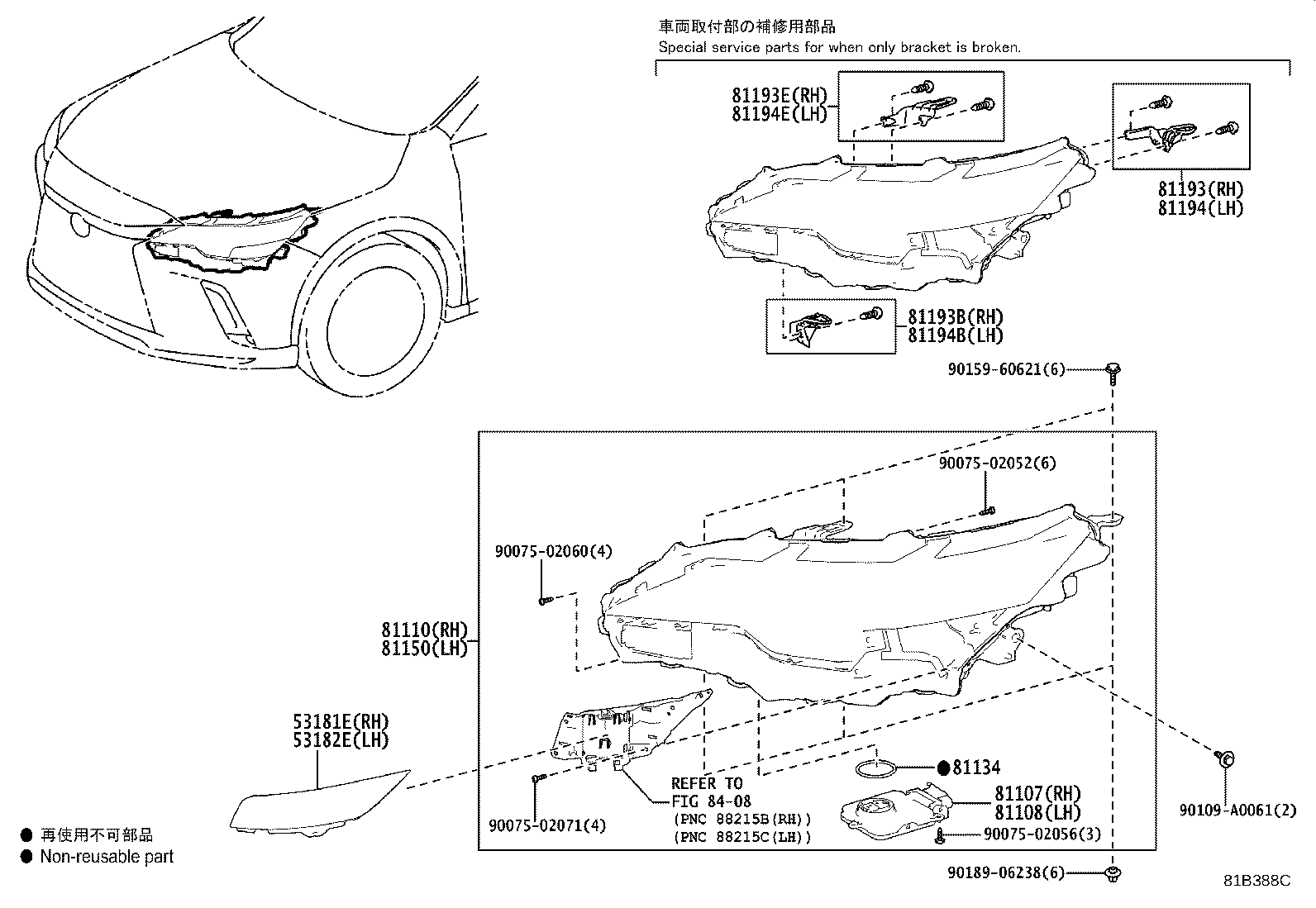

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53181E — Cover, Headlamp, RH | ||||
| 52711-0E190 |
Cover, Headlamp, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 53182E — Cover, Headlamp, LH | ||||
| 52712-0E190 |
Cover, Headlamp, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81107 — Computer Sub-assy, Headlamp Light Control, RH | ||||
| 89908-48230 note |
Computer Sub-assy, Headlamp Light Control, RH
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81108 — Computer Sub-assy, Headlamp Light Control, LH | ||||
| 89907-48230 note |
Computer Sub-assy, Headlamp Light Control, LH
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-0E710 |
Headlamp Assy, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81110-0E730 note |
Headlamp Assy, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81110-0E740 note |
Headlamp Assy, RH
2022-10 → 2023-02
ended
|
AALH15,TALA15,TALH17 | — | |
| 81110-0E741 note |
Headlamp Assy, RH
2023-03 → —
|
AALH15,TALA15,TALH17 | — | |
| 81134 — Gasket, Headlamp | ||||
| 90075-23003 note |
Gasket, Headlamp
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 90075-23003 note |
Gasket, Headlamp
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-0E710 |
Headlamp Assy, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81150-0E730 note |
Headlamp Assy, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81150-0E740 note |
Headlamp Assy, LH
2022-10 → 2023-02
ended
|
AALH15,TALA15,TALH17 | — | |
| 81150-0E741 note |
Headlamp Assy, LH
2023-03 → —
|
AALH15,TALA15,TALH17 | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-48190 |
Retainer, Headlamp Protector, Upper RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81193-48220 note |
Retainer, Headlamp Protector, Upper RH
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81193-48220 note |
Retainer, Headlamp Protector, Upper RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81193B — Retainer, Headlamp Protector, Upper RH NO.2 | ||||
| 81193-48200 |
Retainer, Headlamp Protector, Upper RH NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81193E — Retainer, Headlamp Protector, Upper RH NO.3 | ||||
| 81193-48210 |
Retainer, Headlamp Protector, Upper RH NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81193-48230 note |
Retainer, Headlamp Protector, Upper RH NO.3
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81193-48230 note |
Retainer, Headlamp Protector, Upper RH NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-48190 |
Retainer, Headlamp Protector, Upper LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81194-48220 note |
Retainer, Headlamp Protector, Upper LH
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81194-48220 note |
Retainer, Headlamp Protector, Upper LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81194B — Retainer, Headlamp Protector, Upper LH NO.2 | ||||
| 81194-48200 |
Retainer, Headlamp Protector, Upper LH NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81194E — Retainer, Headlamp Protector, Upper LH NO.3 | ||||
| 81194-48210 |
Retainer, Headlamp Protector, Upper LH NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81194-48230 note |
Retainer, Headlamp Protector, Upper LH NO.3
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 81194-48230 note |
Retainer, Headlamp Protector, Upper LH NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
