Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

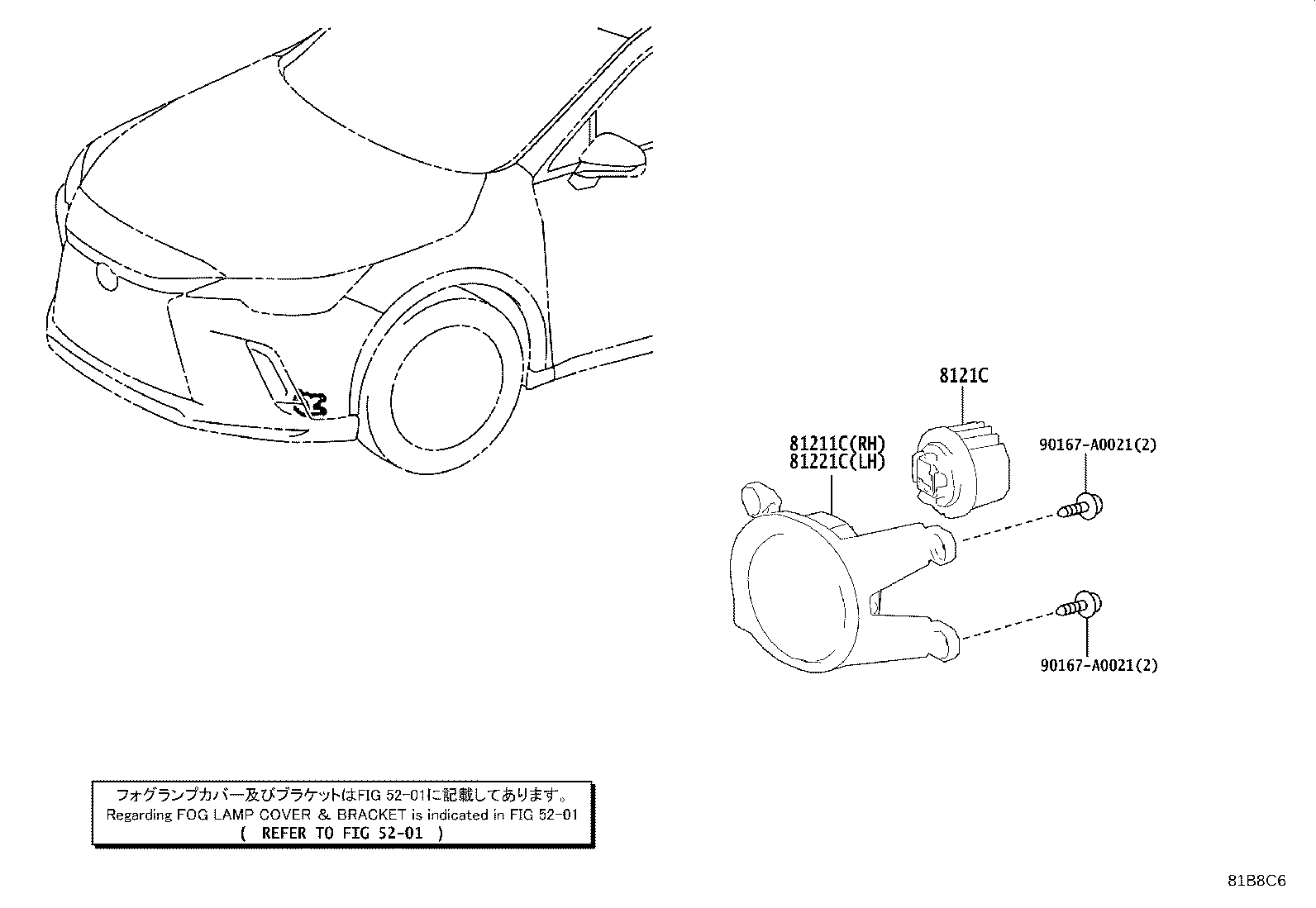

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-52140 |
Lamp Unit, Fog Lamp, RH
2024-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 8121C — Led, Fog Lamp | ||||
| 81965-52050 |
Led, Fog Lamp
2024-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-52120 |
Lamp Unit, Fog Lamp, LH
2024-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
