Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

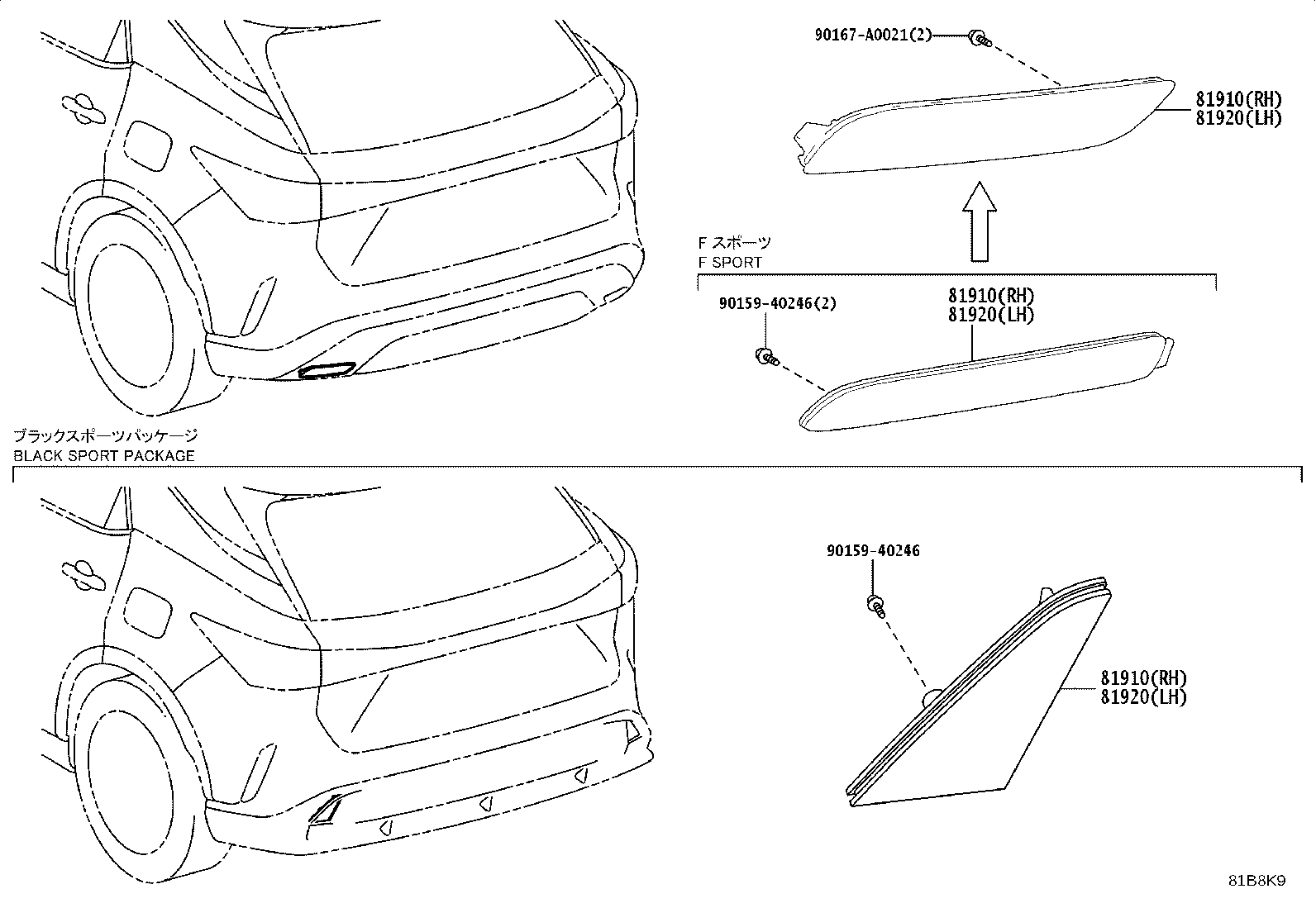

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-06070 |
Reflector Assy, Reflex, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 81910-06070 note |
Reflector Assy, Reflex, RH
2022-10 → —
|
TALA15 | — | |
| 81910-08010 |
Reflector Assy, Reflex, RH
2022-10 → —
|
TALH17 | — | |
| 81910-08010 note |
Reflector Assy, Reflex, RH
2022-10 → —
|
TALA15 | — | |
| 81910-08010 note |
Reflector Assy, Reflex, RH
2022-10 → —
|
TALH17 | — | |
| 81910-08010 note |
Reflector Assy, Reflex, RH
2023-08 → —
|
AALH15,TALA1# | — | |
| 81910-76010 note |
Reflector Assy, Reflex, RH
2024-11 → —
|
TALH17 | — | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-06060 |
Reflector Assy, Reflex, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 81920-06060 note |
Reflector Assy, Reflex, LH
2022-10 → —
|
TALA15 | — | |
| 81920-08010 |
Reflector Assy, Reflex, LH
2022-10 → —
|
TALH17 | — | |
| 81920-08010 note |
Reflector Assy, Reflex, LH
2022-10 → —
|
TALA15 | — | |
| 81920-08010 note |
Reflector Assy, Reflex, LH
2022-10 → —
|
TALH17 | — | |
| 81920-08010 note |
Reflector Assy, Reflex, LH
2023-08 → —
|
AALH15,TALA1# | — | |
| 81920-76010 note |
Reflector Assy, Reflex, LH
2024-11 → —
|
TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
