Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

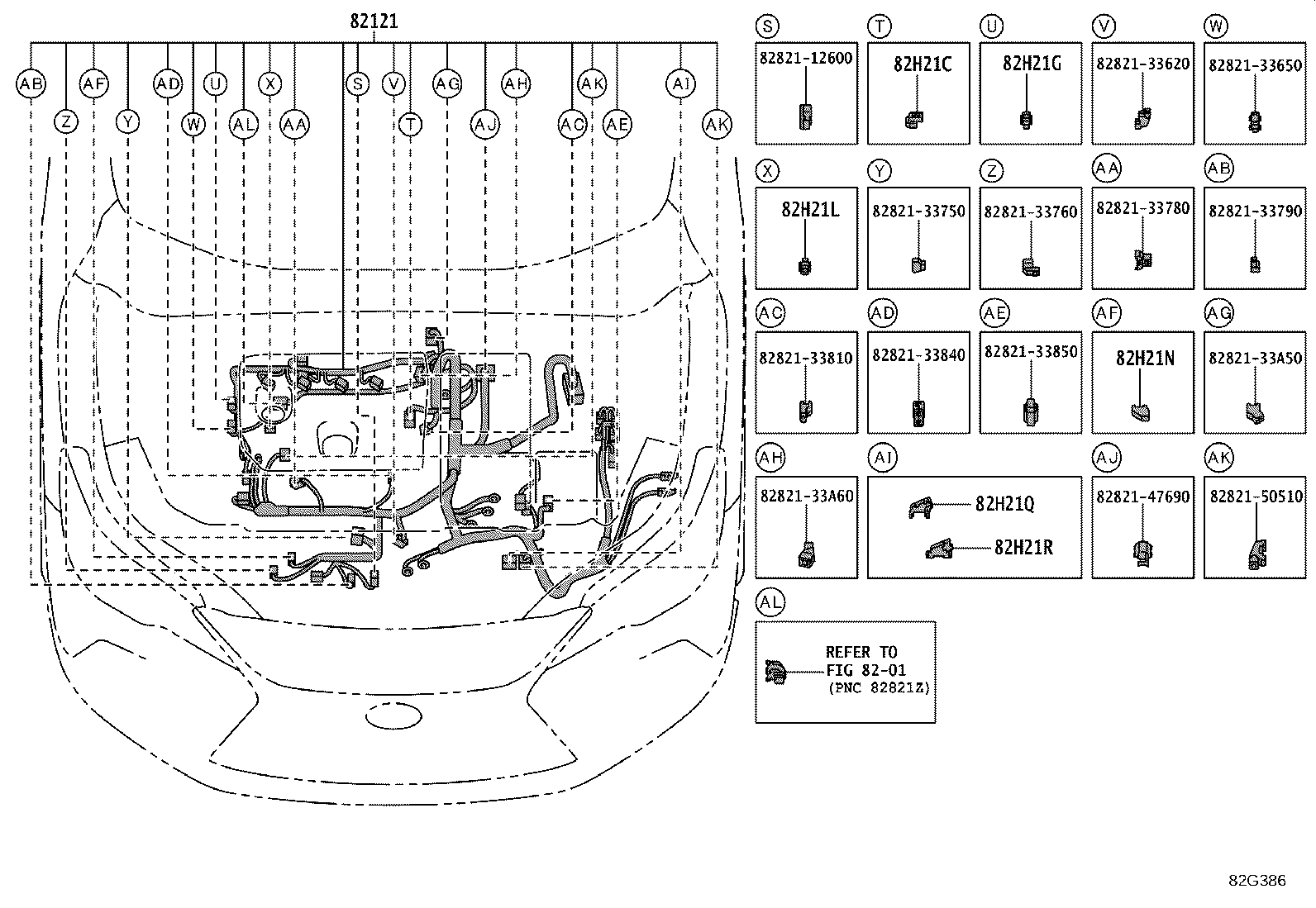

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0E420 note |
Wire, Engine
2022-10 → —
|
TALA15 | — | |
| 82121-0E430 |
Wire, Engine
2022-10 → —
|
TALA10 | — | |
| 82121-0E650 |
Wire, Engine
2022-10 → —
|
TALA15 | — | |
| 82121-0E660 note |
Wire, Engine
2022-10 → 2024-11
ended
|
AALH15 | — | |
| 82121-0E670 |
Wire, Engine
2022-10 → 2024-11
ended
|
AALH15 | — | |
| 82121-0E780 note |
Wire, Engine
2022-10 → —
|
TALH17 | — | |
| 82121-0E790 |
Wire, Engine
2022-10 → —
|
TALH17 | — | |
| 82121-0ED50 note |
Wire, Engine
2024-11 → —
|
AALH15 | — | |
| 82121-0ED60 |
Wire, Engine
2024-11 → —
|
AALH15 | — | |
| 82H21C — Cover, Connector | ||||
| 82821-33590 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82H21G — Cover, Connector | ||||
| 82821-33610 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82H21L — Cover, Connector | ||||
| 82821-33700 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82H21N — Cover, Connector | ||||
| 82821-33860 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82H21Q — Cover, Connector | ||||
| 82821-47480 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1# | — | |
| 82H21R — Cover, Connector | ||||
| 82821-47490 |
Cover, Connector
2022-10 → —
|
AALH15,TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
