Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

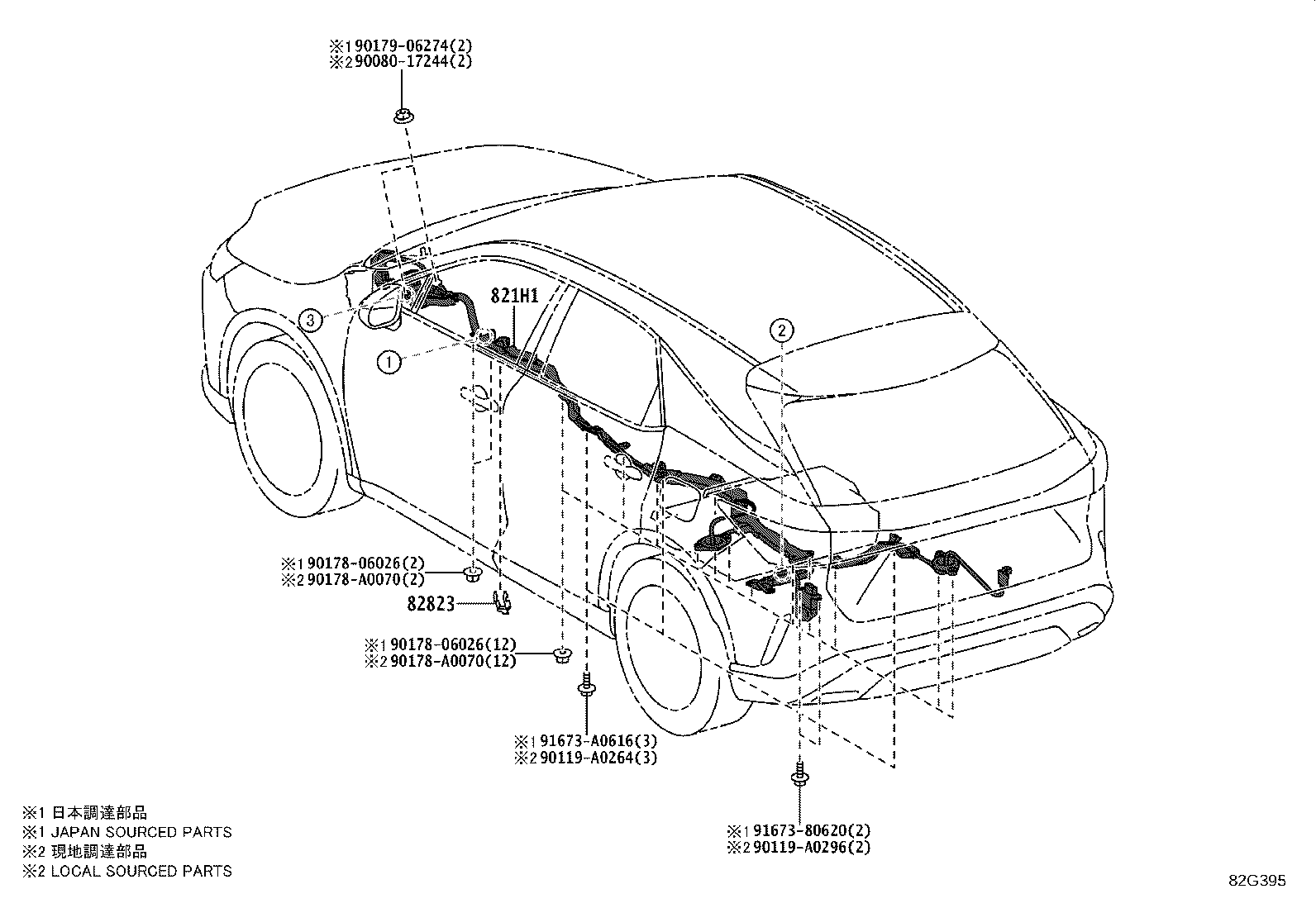

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-0E100 |
Wire, Floor Under
2022-10 → 2023-03
ended
|
AALH15 | — | |
| 821H1-0E101 |
Wire, Floor Under
2023-04 → 2023-10
ended
|
AALH15 | — | |
| 821H1-0E102 |
Wire, Floor Under
2023-11 → —
|
AALH15 | — | |
| 821H1-48290 |
Wire, Floor Under
2022-10 → —
|
TALH17 | — | |
| 82823 — Cap, Terminal, NO.1 | ||||
| 82823-0E020 |
Cap, Terminal, NO.1
2022-10 → —
|
AALH15 | — | |
| 82823-48060 |
Cap, Terminal, NO.1
2022-10 → —
|
TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
