Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

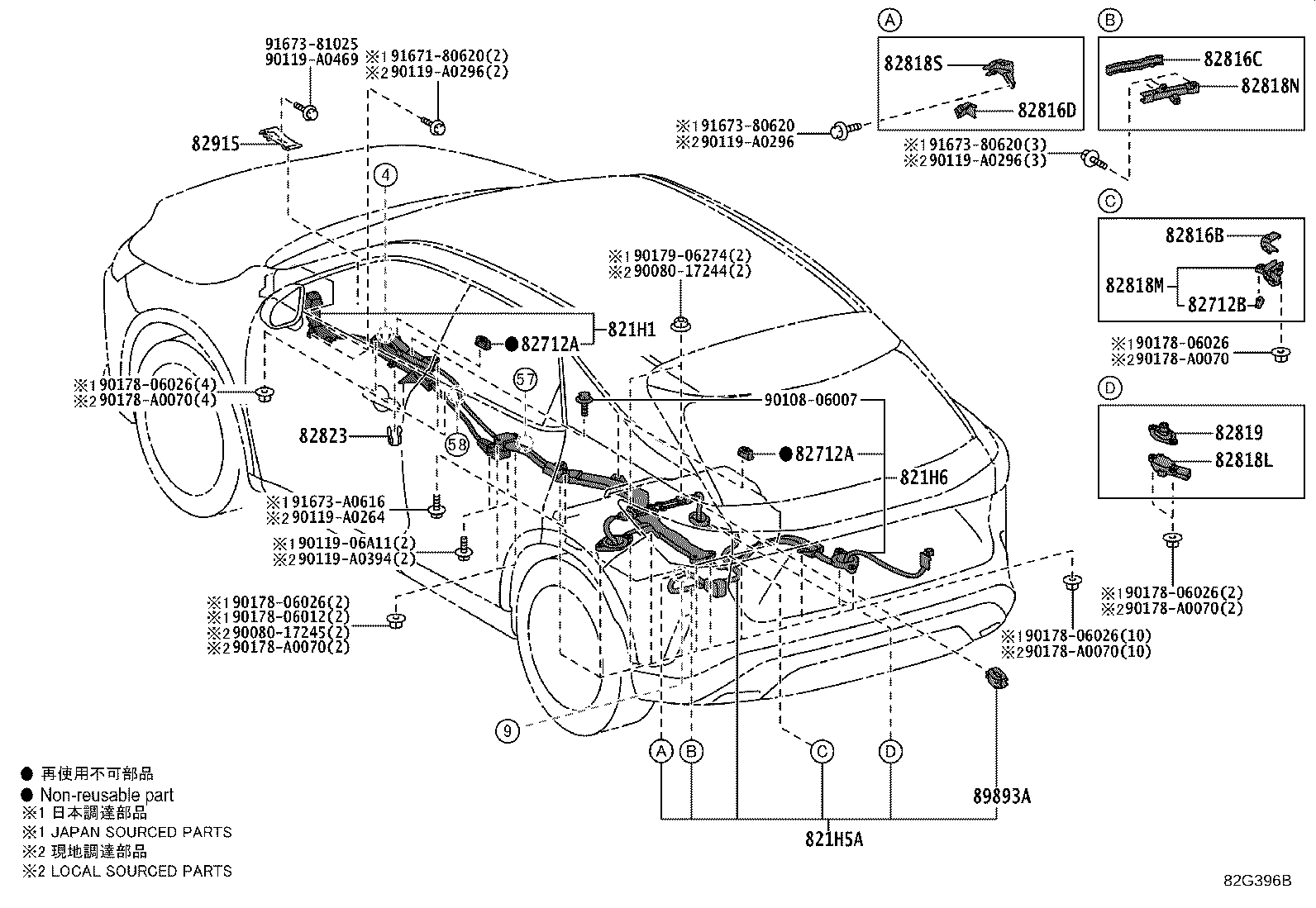

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-0E100 |
Wire, Floor Under
2022-10 → 2023-03
ended
|
AALH15 | — | |
| 821H1-0E101 |
Wire, Floor Under
2023-04 → 2023-10
ended
|
AALH15 | — | |
| 821H1-0E102 |
Wire, Floor Under
2023-11 → —
|
AALH15 | — | |
| 821H1-48290 |
Wire, Floor Under
2022-10 → —
|
TALH17 | — | |
| 821H5A — Wire, HV Battery Charger | ||||
| 821H5-48010 |
Wire, HV Battery Charger
2022-10 → —
|
TALH17 | — | |
| 821H6 — Wire, HV Floor Under, NO.2 | ||||
| 821H6-48040 |
Wire, HV Floor Under, NO.2
2022-10 → —
|
TALH17 | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-33170 |
Support, Wiring Harness
2022-10 → —
|
TALH17 | — | |
| 82712B — Support, Wiring Harness | ||||
| 82712-33190 |
Support, Wiring Harness
2022-10 → —
|
TALH17 | — | |
| 82816B — Cover, Wiring Harness Protector, NO.1 | ||||
| 82815-48G10 |
Cover, Wiring Harness Protector, NO.1
2022-10 → —
|
TALH17 | — | |
| 82816C — Cover, Wiring Harness Protector, NO.2 | ||||
| 82815-48G20 |
Cover, Wiring Harness Protector, NO.2
2022-10 → —
|
TALH17 | — | |
| 82816D — Cover, Wiring Harness Protector, NO.3 | ||||
| 82815-48G30 |
Cover, Wiring Harness Protector, NO.3
2022-10 → —
|
TALH17 | — | |
| 82818L — Protector, Wiring Harness, NO.12 | ||||
| 82817-48V60 |
Protector, Wiring Harness, NO.12
2022-10 → —
|
TALH17 | — | |
| 82818M — Protector, Wiring Harness, NO.13 | ||||
| 82817-48W40 |
Protector, Wiring Harness, NO.13
2022-10 → —
|
TALH17 | — | |
| 82818N — Protector, Wiring Harness, NO.14 | ||||
| 82817-48W50 |
Protector, Wiring Harness, NO.14
2022-10 → —
|
TALH17 | — | |
| 82818S — Protector, Wiring Harness, NO.15 | ||||
| 82817-48X50 |
Protector, Wiring Harness, NO.15
2022-10 → —
|
TALH17 | — | |
| 82819 — Grommet, Wiring Harness | ||||
| 82819-48630 |
Grommet, Wiring Harness
2022-10 → —
|
TALH17 | — | |
| 82823 — Cap, Terminal, NO.1 | ||||
| 82823-0E020 |
Cap, Terminal, NO.1
2022-10 → —
|
AALH15 | — | |
| 82823-48060 |
Cap, Terminal, NO.1
2022-10 → —
|
TALH17 | — | |
| 82915 — Insulator, Wiring Harness Heat, NO.1 | ||||
| 82915-48010 |
Insulator, Wiring Harness Heat, NO.1
2022-10 → —
|
TALH17 | — | |
| 89893A — Filter, Battery Noise | ||||
| 89893-48010 |
Filter, Battery Noise
2022-10 → —
|
TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
