Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

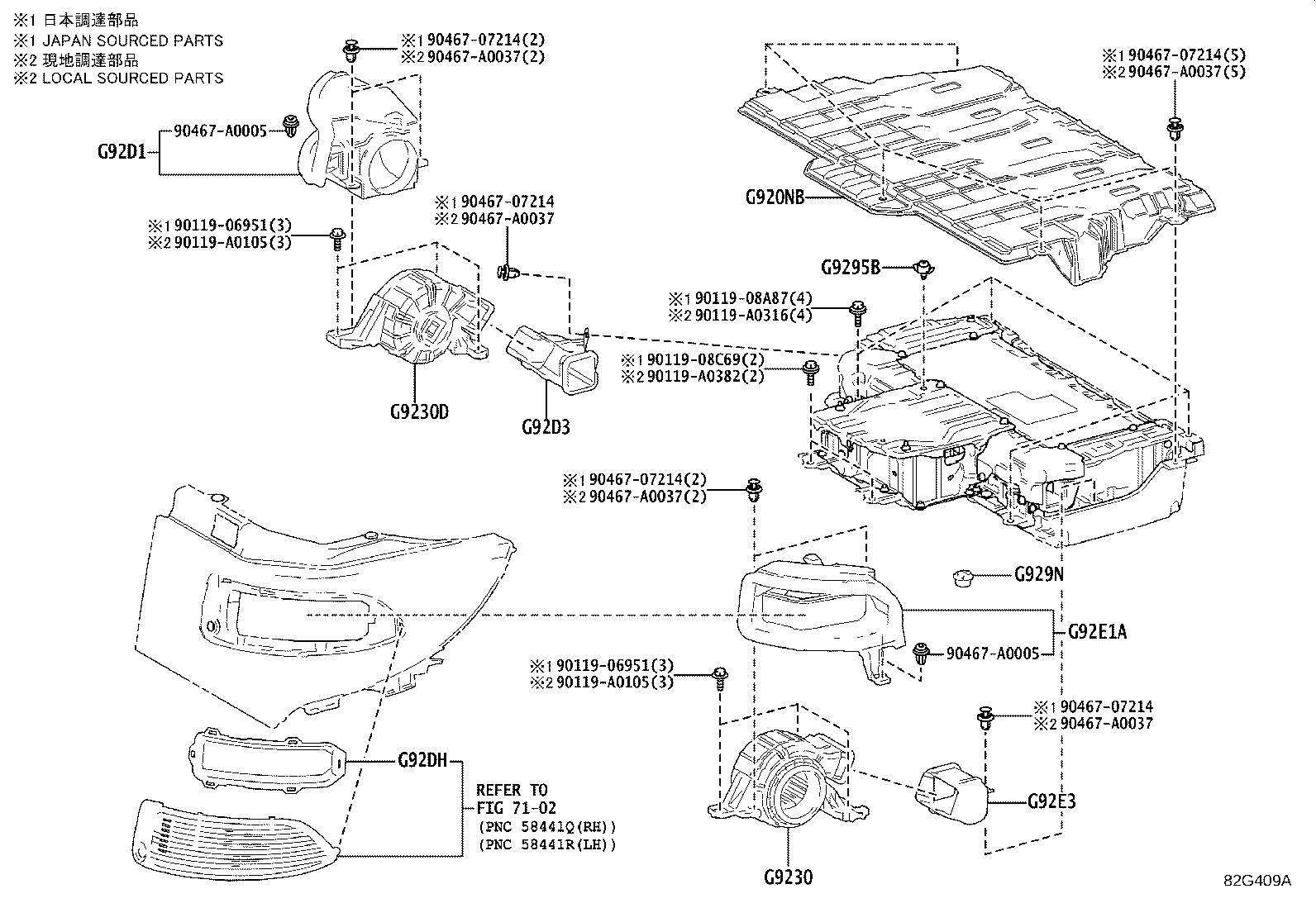

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G920NB — Cover Sub-assy, HV Battery, Upper | ||||
| G92H9-48010 |
Cover Sub-assy, HV Battery, Upper
2022-10 → —
|
AALH15,TALH17 | — | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-48090 |
Blower Assy, Battery Cooling
2022-10 → —
|
AALH15,TALH17 | — | |
| G9230D — Blower Assy, Battery Cooling, NO.2 | ||||
| G9230-48100 |
Blower Assy, Battery Cooling, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2022-10 → —
|
AALH15,TALH17 | — | |
| G929N — Plug, Battery Drain | ||||
| G929N-52010 |
Plug, Battery Drain
2022-10 → —
|
AALH15,TALH17 | — | |
| G92D1 — Duct, Hybrid Battery Intake, NO.1 | ||||
| G92D1-0E040 |
Duct, Hybrid Battery Intake, NO.1
2022-10 → —
|
AALH15,TALH17 | — | |
| G92D3 — Duct, Hybrid Battery Intake, NO.3 | ||||
| G92D3-0E040 |
Duct, Hybrid Battery Intake, NO.3
2022-10 → —
|
AALH15,TALH17 | — | |
| G92DH — Filter, HV Battery Intake, NO.1 | ||||
| G92DH-48020 |
Filter, HV Battery Intake, NO.1
2022-10 → —
|
AALH15,TALH17 | — | |
| G92E1A — Duct, HV Battery Intake, NO.1 LH | ||||
| G92E1-0E050 |
Duct, HV Battery Intake, NO.1 LH
2022-10 → —
|
AALH15,TALH17 | — | |
| G92E3 — Duct, HV Battery Intake, NO.3 LH | ||||
| G92E3-0E020 |
Duct, HV Battery Intake, NO.3 LH
2022-10 → —
|
AALH15,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
